Exploring Parts In Divi 5

Elements in Divi 5 let you recycle a style, update it from one saved resource, and select which content each usage can transform.

We’ll construct 3 service cards for Brand Identification, Web Design, and Creative Direction. They share their spacing, picture frames, typography, and switch style, while each card has its very own photo, title, description, and link.

We’ll save one card Group as an Element, then personalize its linked duplicates. You’ll likewise learn exactly how to reset neighborhood values, detach elements, and manage the saved source.

What Are Components In Divi 5

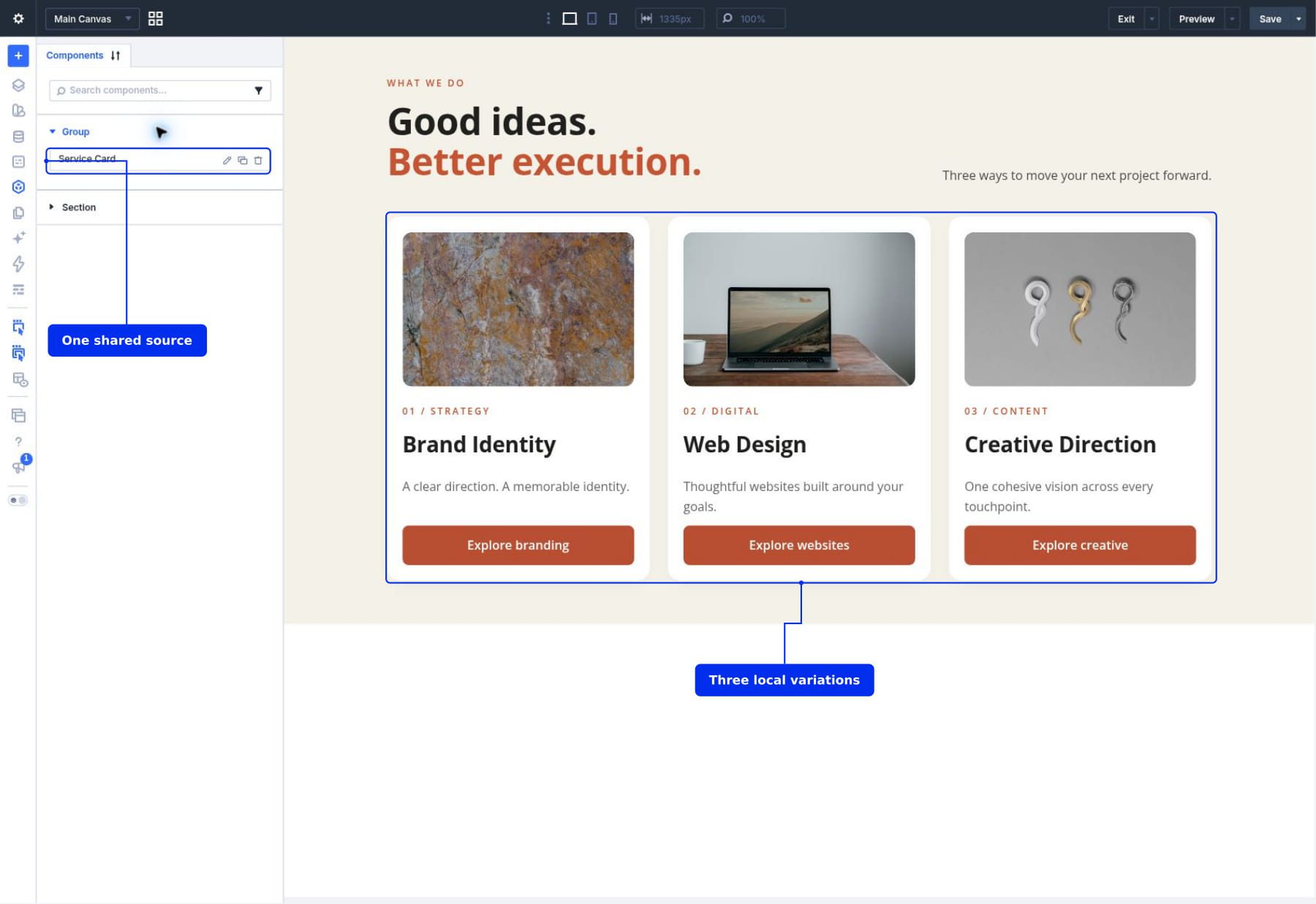

An Element is a reusable element with a shared source kept in the Divi Library It can be a solitary module or a bigger element including several modules, such as a Team, row, or section.

Each use that Part on a web page is an instance Consider the source as the design you preserve and the circumstances as its connected uses throughout your web site.

For our solution cards, the source will certainly control the card structure, padding, rounded edges, picture percentages, typography, and switch style. Each circumstances will be enabled to alter its photo, group, title, description, button label, and location.

The Development Of International Aspects

Parts prolong Divi’s international elements with more granular control over synchronization inside nested layouts. You can expose a Heading component’s message inside a multiple-use card while keeping its font style, size, and color taken care of by the resource.

This makes one multiple-use design ideal for numerous material variations. You don’t need a different Element for Brand Identification, Web Design, and Innovative Instructions when their cards share the very same structure.

Elements, Presets, And Variables

Divi’s reusable design devices have different roles:

• Components reuse aspects and formats, including their framework and integrated setups.
• Presets reuse collections of setups, such as a heading design or button layout.
• Layout Variables reuse specific worths, such as a brand name shade or spacing dimension.

You can use presets and variables inside an Element. As an example, a switch pre-programmed can provide its styling while the Part lets each circumstances utilize various button message. Our guide to utilizing Design Variables with Presets clarifies the designing structure.

Understand Shared Setup And Local Content

Prior to saving the initial card, allow’s identify the two editing contexts you’ll make use of throughout this tutorial.

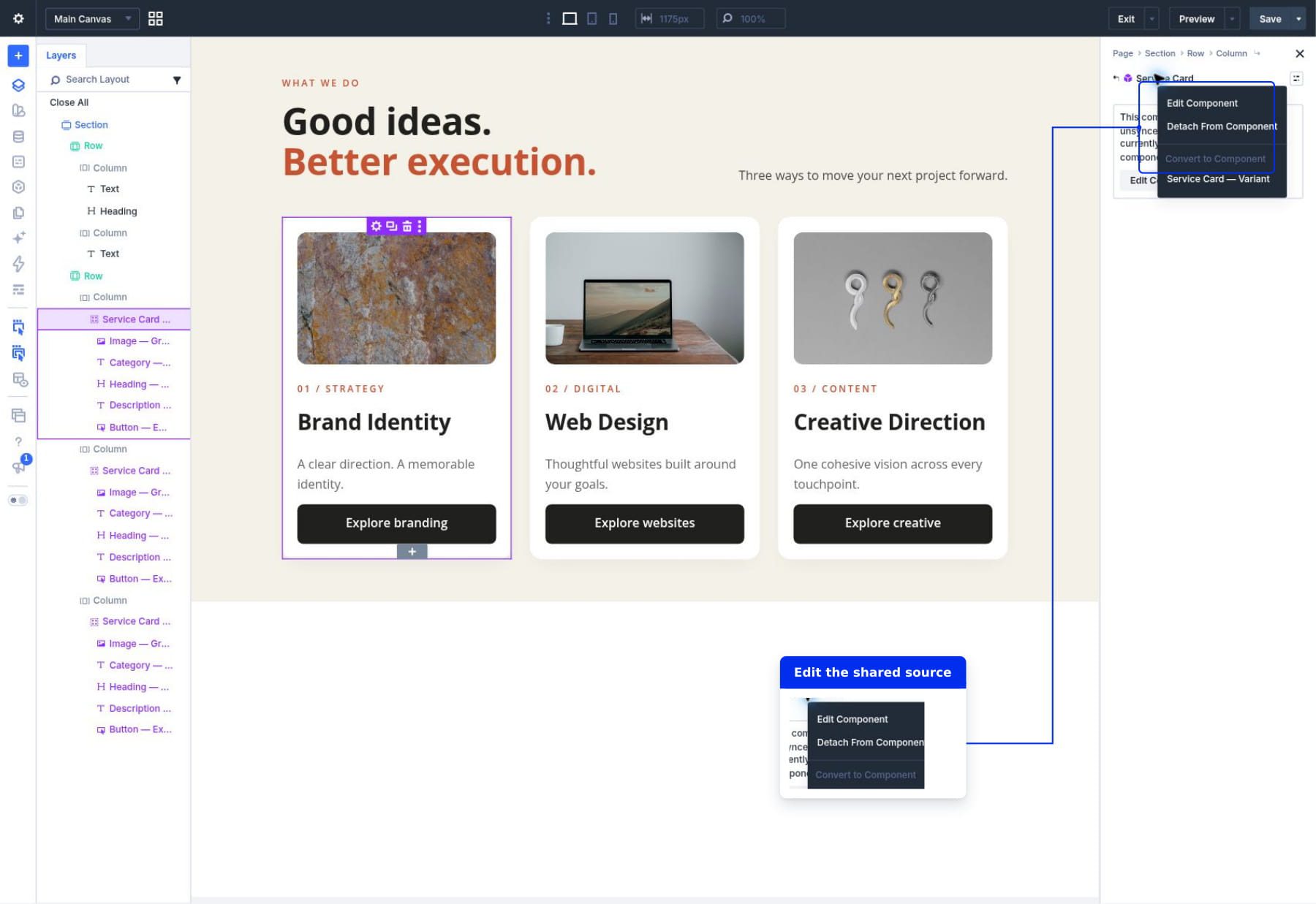

Modify The Resource To Modification The Shared Part

Source editing gives you the full setups for the recyclable layout. Very first select the module you wish to change, after that pick Edit Element from the Component food selection close to its name. The source editor consists of Component Settings and bottom Save and Cancel controls. Purple styling appears in both source and circumstances editing, so utilize those controls to check your editing context.

You utilize this mode to alter the shared card design and choose which areas can be edited in your area. Saving a resource modification asks you to confirm that it will certainly upgrade instances throughout your site. Check the resource name prior to verifying.

Edit An Instance To Change Its Allowed Area

Opening a connected instance reveals the areas its source allows you to modify locally. A Heading may show just its Material tab, as an example, due to the fact that its typography remains under source control.

To return from resource editing, conserve and confirm any resource changes, then shut its settings window with the X Select the youngster module in the web page instance once again. You do not need to remove it to modify an enabled web content area.

Select the relevant kid component to find its local fields. The external Team could have no editable settings even though its Photo, Heading, Text, and Switch modules include editable content.

Altering the Web Design card’s title in circumstances setting adjustments that card. Modifying the source’s heading typography changes the integrated typography throughout its linked instances.

Editable Area Inherit Until You Override Them

Making an area editable enables modification; it doesn’t instantly give every instance a separate value. The field can proceed inheriting its resource default up until you get in a local override.

Our source card begins with the title Brand Identity A freshly put instance can inherit that title. Transforming one instance to Web Design considers that instance its own heading while leaving the resource and other circumstances unmodified.

Resetting the neighborhood area removes its override and brings back inheritance. This is various from keying the present resource text manually: an inherited area continues adhering to future source adjustments.

Before You Start

Utilize a Divi 5 installation that consists of Components and open up a page in the Visual Home builder. You can comply with in addition to a solution card you already have or build the starting Team explained below.

We’ll use Layers to choose the right containers and modules. Click its stacked-layers symbol in the left contractor sidebar, after that use the arrows beside each layer to broaden its youngsters. If these controls are brand-new to you, our overview to adding and organizing components explains the home builder’s section, row, column, and component pecking order.

Download And Import The Beginner Layout

Download the starter layout to adhere to along with the exact same design. It has 3 ordinary service-card Groups, without any Elements or Slot machines. We’ll develop the Component links throughout the tutorial.

1. Create a blank technique page and open it in the Divi Visual Contractor.
2. Open the Web page Menu and select Import to open up the page’s Import & Export window.

Select the starter file and choose the import settings for your blank technique page:

3. Click Select File and select components-starter-layout. json
4. On this empty technique web page, leave Change Existing Web Content checked. Leave Download Back-up , Import Presets , Import Parts , and Import To New Canvas untreated.
5. Click Import Layout When the cards show up, conserve the page with the builder’s top-right Save switch.

Make use of the web page’s import controls for this documents. The Component export and import controls covered later on manage saved resources individually.

Utilize a blank page for this replacement import. If you require to protect an existing layout, export a backup first or enable Import To New Canvas to import onto a separate canvas.

The imported design has Brand name Identification, Web Design, and Creative Direction as standalone cards. Keep all 3 till step 3, which describes when to get rid of the second and 3rd Teams and replace them with linked circumstances.

Prepare The Service-Card Instance

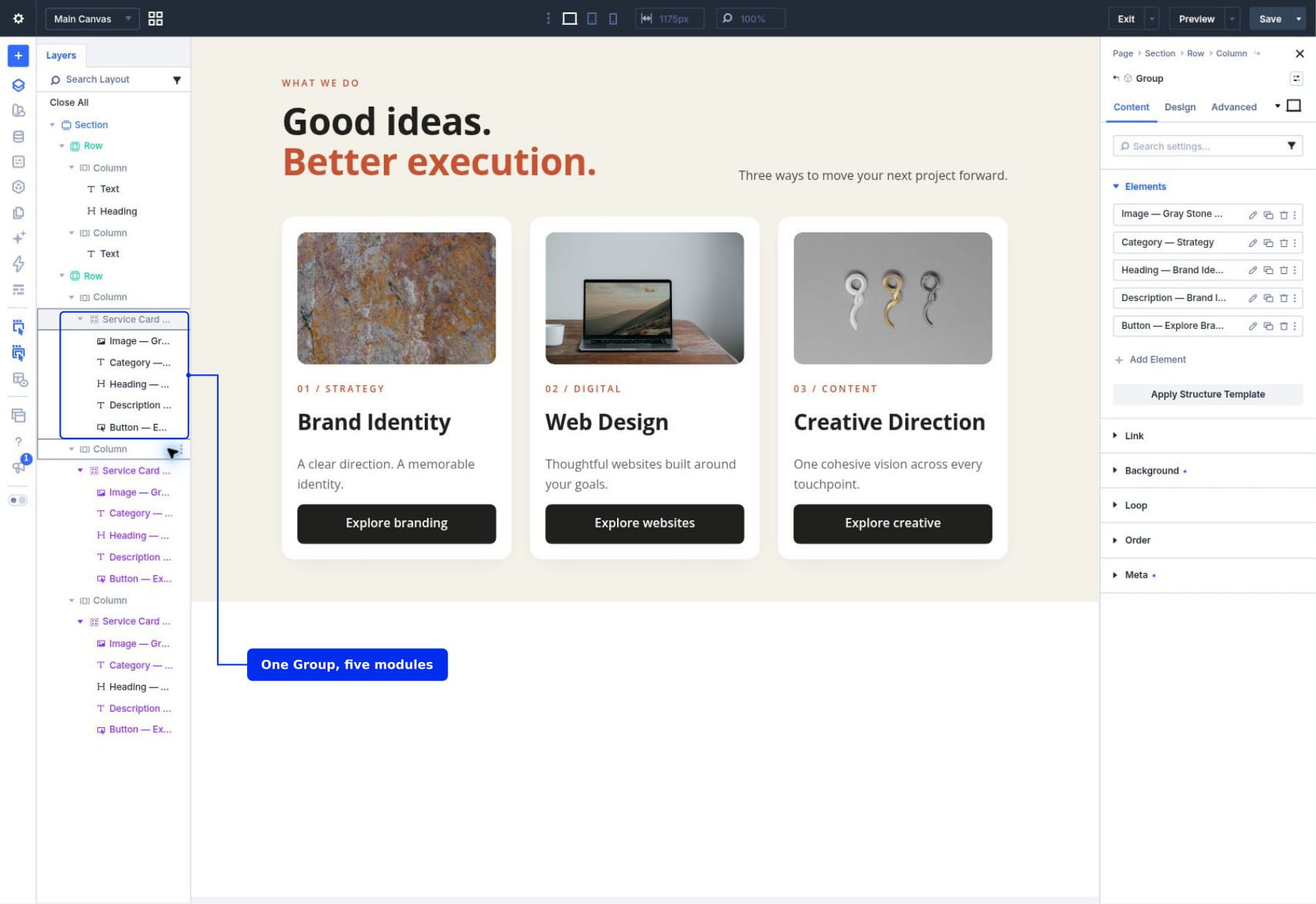

The starter includes 3 ordinary service-card Groups Each holds an Image, classification Text, Heading, summary Text, and Button module.

In Layers , broaden the initial card Column and discover the Brand Name Identification Team We’ll conserve this Group as our Element. Its history, spacing, and component styling will certainly be shared; the area intro and three-column row continue to be ordinary page aspects.

If you imported the starter, remain to step 1 For your own design, coating one card Group first; our equivalent column elevations assist covers lining up cards of various lengths.

Exactly how To Create And Utilize A Service Card Component

We’ll conserve the Brand Identification Group as our resource and make its content areas locally editable. After that we’ll insert it into the other 2 columns and customize those instances. Keep their visual setups integrated so all three cards share one conserved design.

Terminology: A field is one setup, such as Heading text or Button Web link URL. Making it in your area editable allows an instance to utilize its own value. It does not remove the component or make its various other settings independent.

1 Save The Card Group As An Element

Open up Layers in the contractor sidebar. Increase the solution area, its card row, and the very first column. Select the Group that contains the Brand name Identification card’s five components.

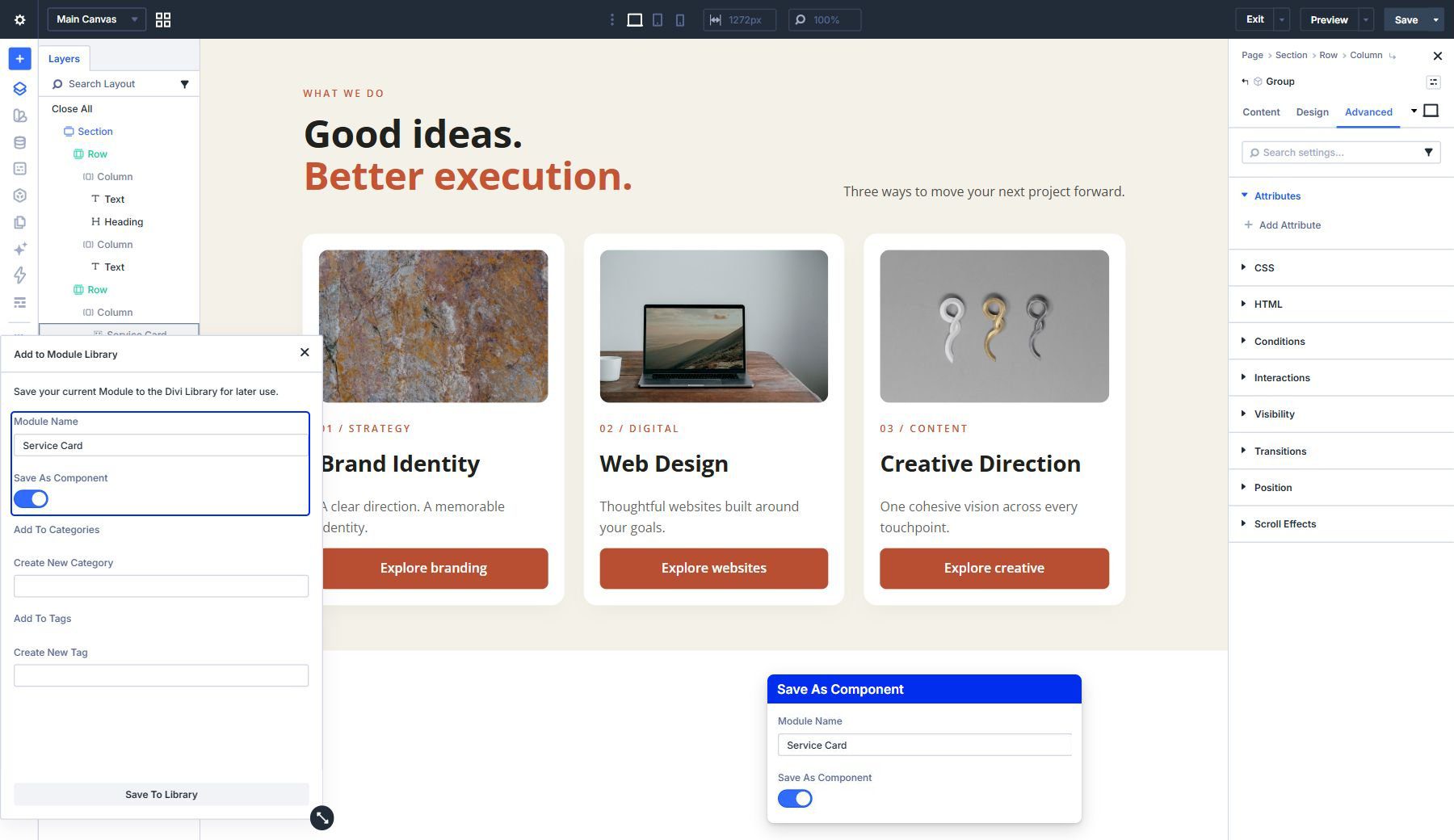

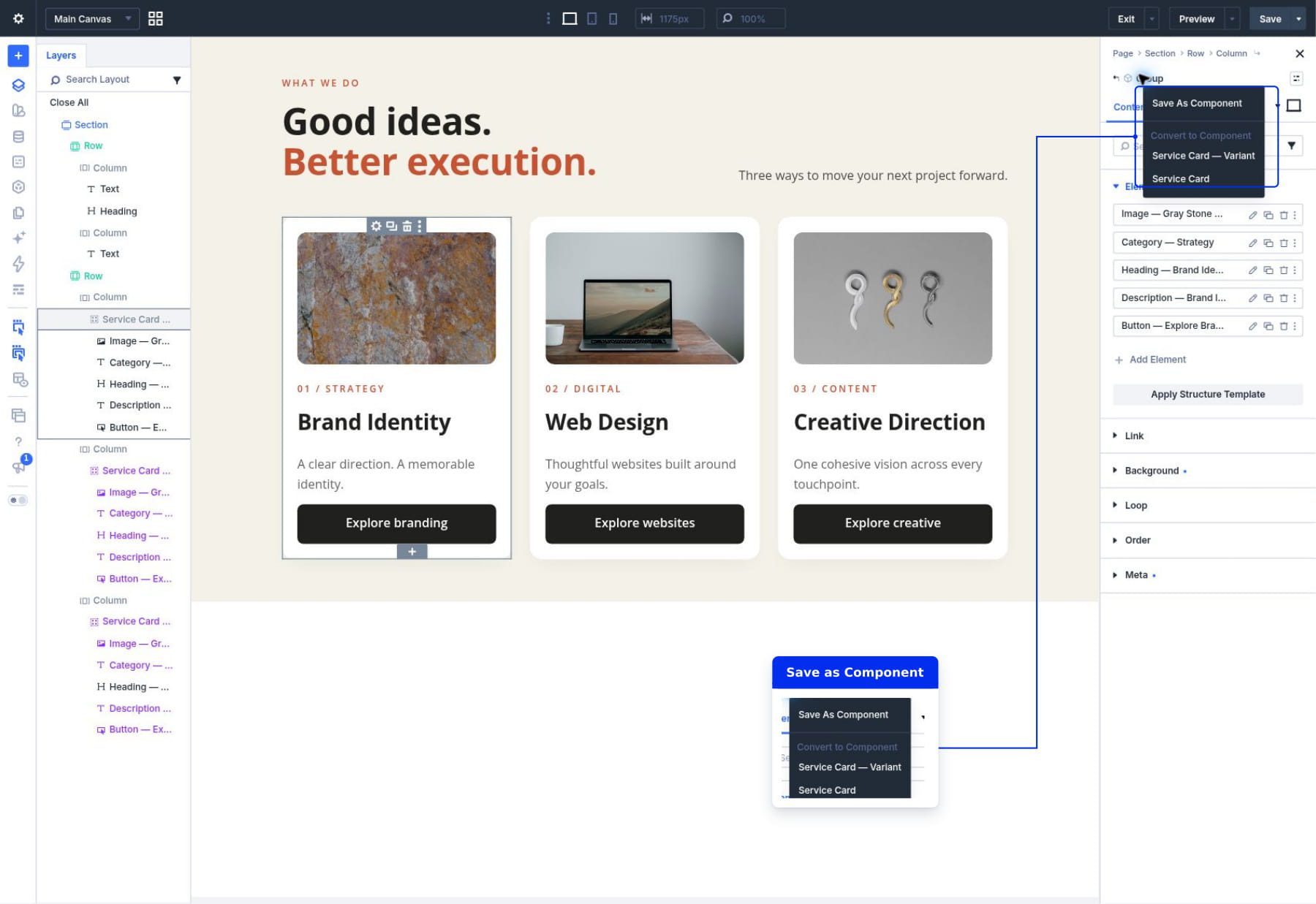

Click the Group’s layer to open its setups. At the top of that home window, click the menu close to the element name and pick Conserve As Element

In the Library window, name the product Solution Card and maintain Conserve As Component made it possible for. Conserve the Team as one reusable product; you do not require to save its child modules as separate Library things for this tutorial.

Click Conserve To Library Divi produces the common source and connects the Group already on the page to it.

Be sure you selected the Team Conserving the whole section would additionally consist of the introduction and surrounding card layout, which is a bigger reusable aspect than we require here.

2 Make The Card’s Material Editable

In Layers, select the Picture module inside the very first card Team. Open its Component menu and pick Edit Component , then increase Content > Picture You are currently modifying that module’s resource settings.

When you pick one more module in Layers, check its modifying context once more. That selection opens the module’s page-instance settings. Save and verify each source modification prior to transferring to an additional module, after that choose Edit Part for the following component. This keeps the synchronization manages available for every single area you require to reveal.

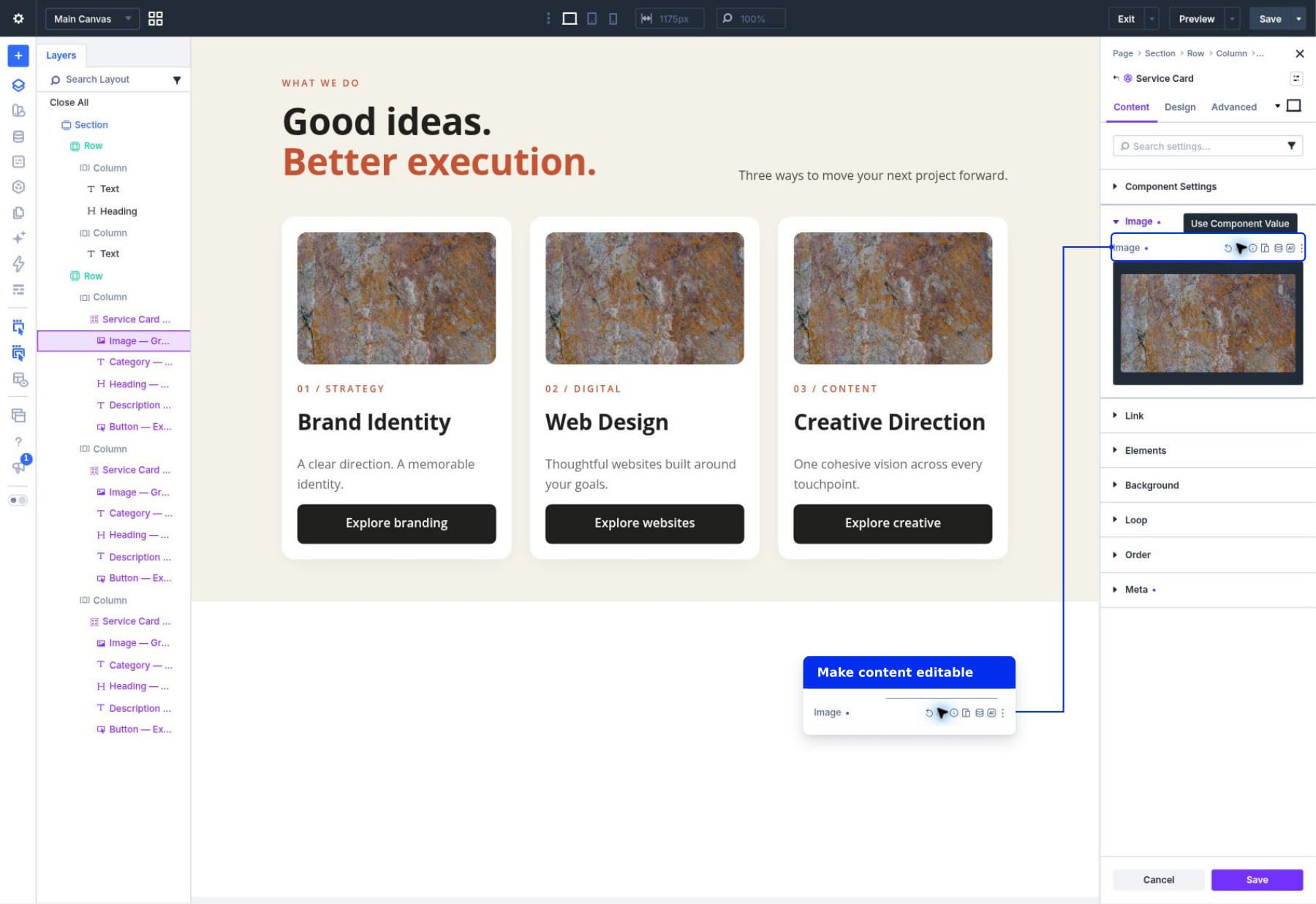

Make use of the synchronization control close to the Photo area, classified Make this area editable on part instances Float over the area to reveal its controls. This enables each card to replace its picture while retaining the source’s picture styling.

After allowing neighborhood editing, the control offers Make use of the source component value for this area Leave that choice untouched; clicking it would certainly synchronize the field again. The screenshot reveals the area with neighborhood editing enabled.

Alt message describes a picture for individuals using display visitors. Our example sets it through Personalized Connects , so each substitute picture needs a coordinating summary.

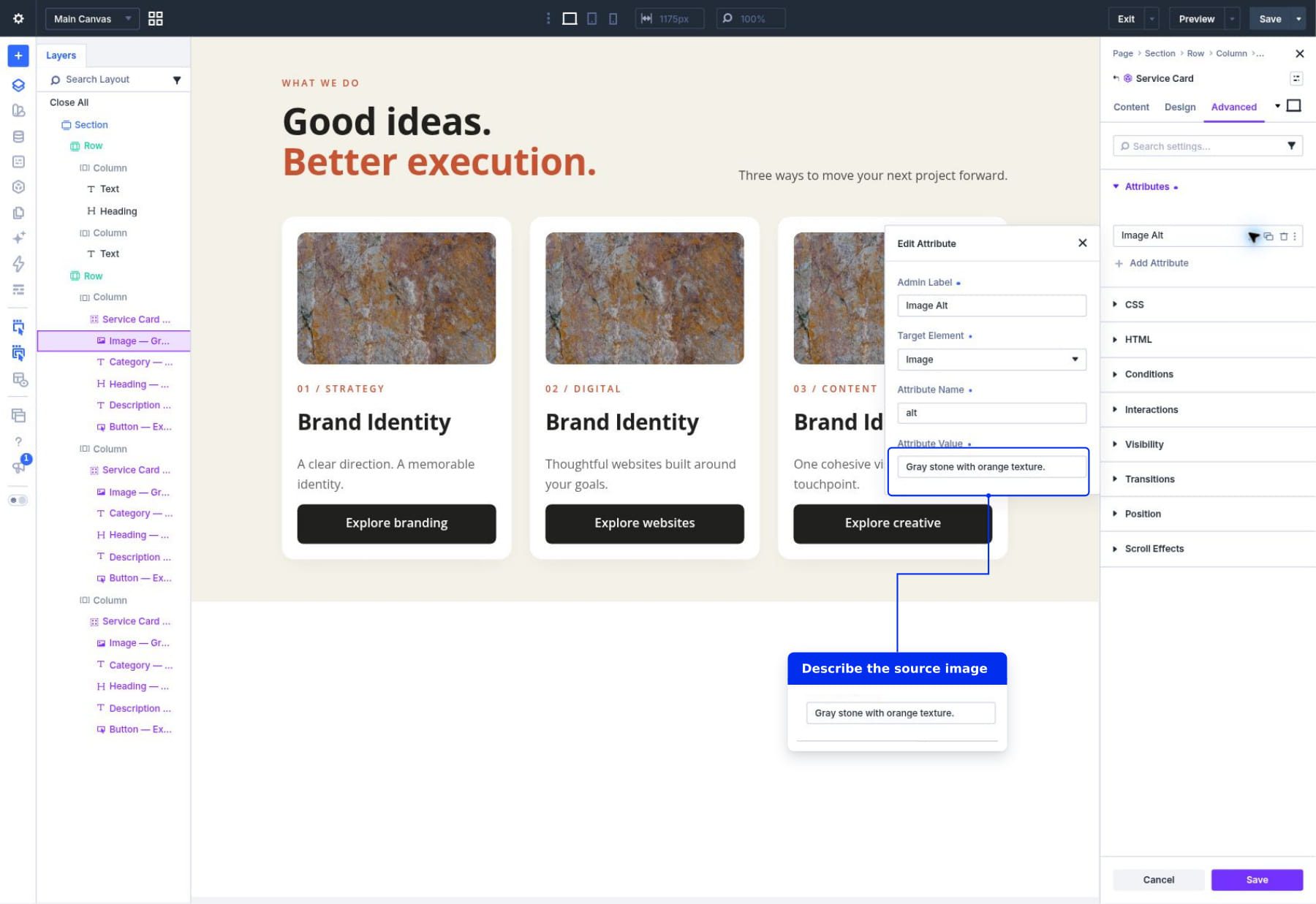

In the source Image component, open Advanced > Qualities If an alt characteristic already exists, click its setups symbol. Otherwise, click Include Feature and produce one with these setups:

• Admin Tag: Image Alt.
• Target Component: Photo.
• Associate Name: alt.
• Connect Worth: A description of the source image.

The tag recognizes this attribute in the builder; the alt name gives it its feature. Maintain one alt attribute for the Image aspect.

Shut the Edit Feature home window using its X Back in the Picture component’s Attributes settings, make the Features collection editable on instances. This control comes from the collection, not to the Quality Worth inside the smaller sized modifying home window.

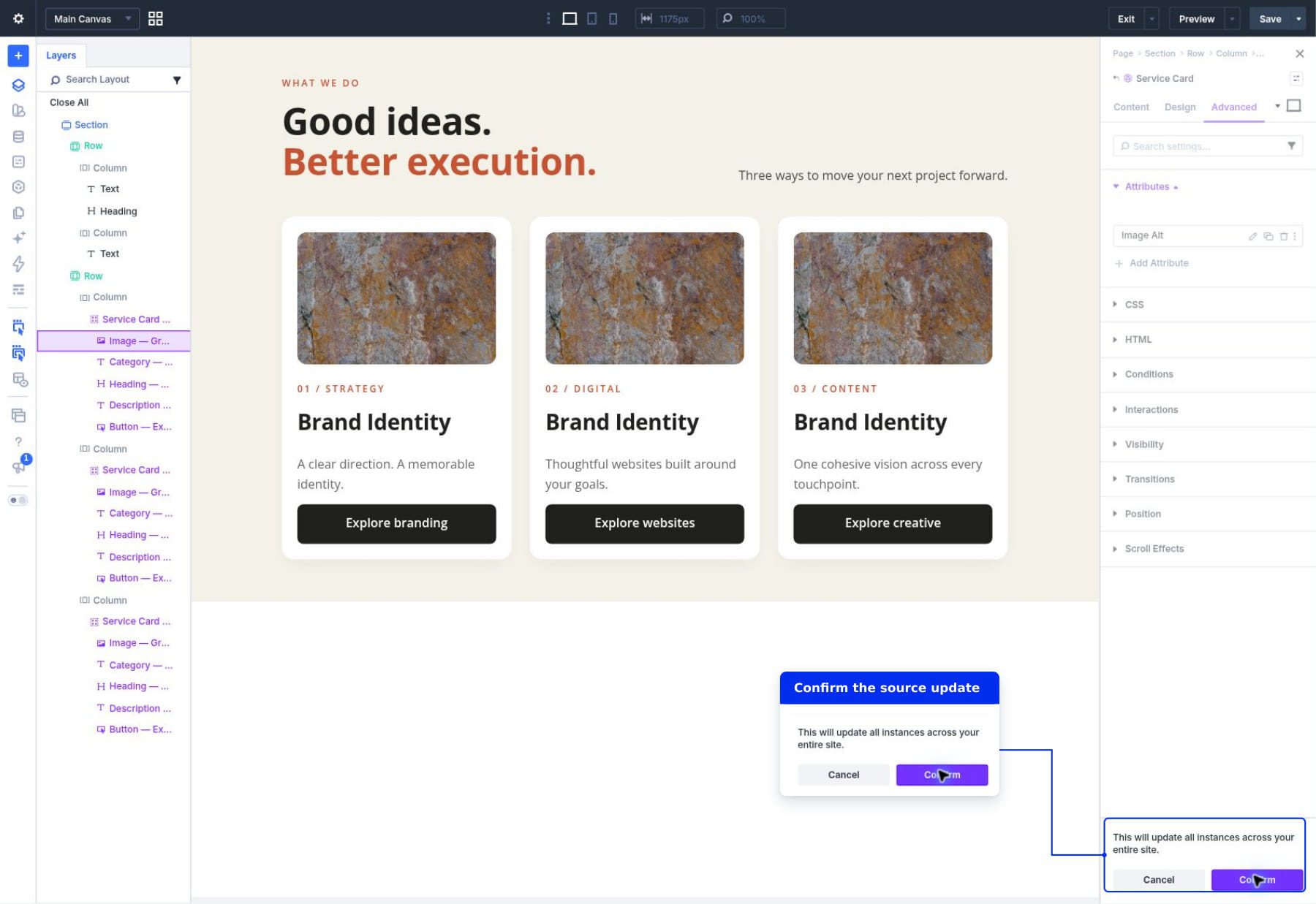

Save and confirm the Photo component’s resource modifications utilizing the bottom Save button. Next off, select the group Text module in Layers and select Edit Component from its Part menu. Open Web content > Text and make Body editable using the exact same synchronization control.

Body is the Text module’s web content editor. Utilize its Visual tab to get in normal text, or its Text tab to examine HTML. Save and confirm this source change before selecting the next component.

Select the Heading component in Layers, choose Edit Element , and open Content > Text Make its Heading field editable, then conserve and validate the source adjustment.

Select the description Text module, choose Edit Component , and make its Body field editable under Content > Text Save and confirm prior to picking the Button module. In that module’s Edit Component settings, expose Button Text under Material > Text and Button Link Link under Material > Link

You need to now have these locally editable areas:

• Picture: Photo and the Elements collection consisting of Picture Alt.
• Group Text: Body.
• Heading: Heading.
• Description Text: Body.

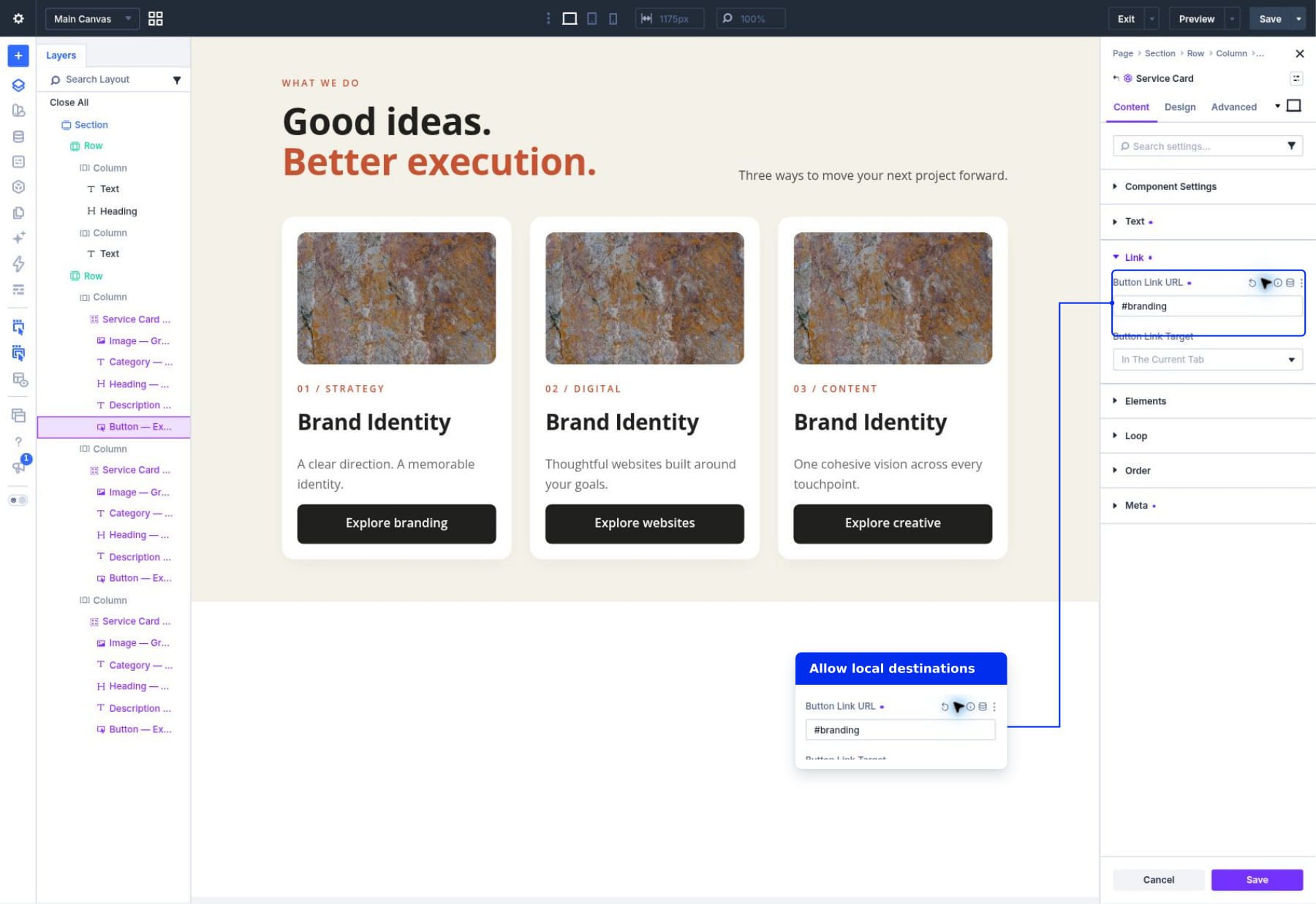

• Button: Switch Text and Button Link URL.

Leave the Group’s background, cushioning, edges, shadow, and format synchronized. Keep image percentages, typography, and button styling synchronized as well. We desire different material inside the same card style.

Conserve the Button component’s source adjustments with the lower Save switch, then click Confirm when Divi discusses that the update influences circumstances throughout your web site. This saves both Button areas you just made editable.

3 Put One More Card From The Collection

Shut the Component resource settings after saving and validating. If you imported the starter layout, get rid of the ordinary card Teams from the second and 3rd columns in Layers. Keep the columns themselves and the first card Team that you saved as the Solution Card Element.

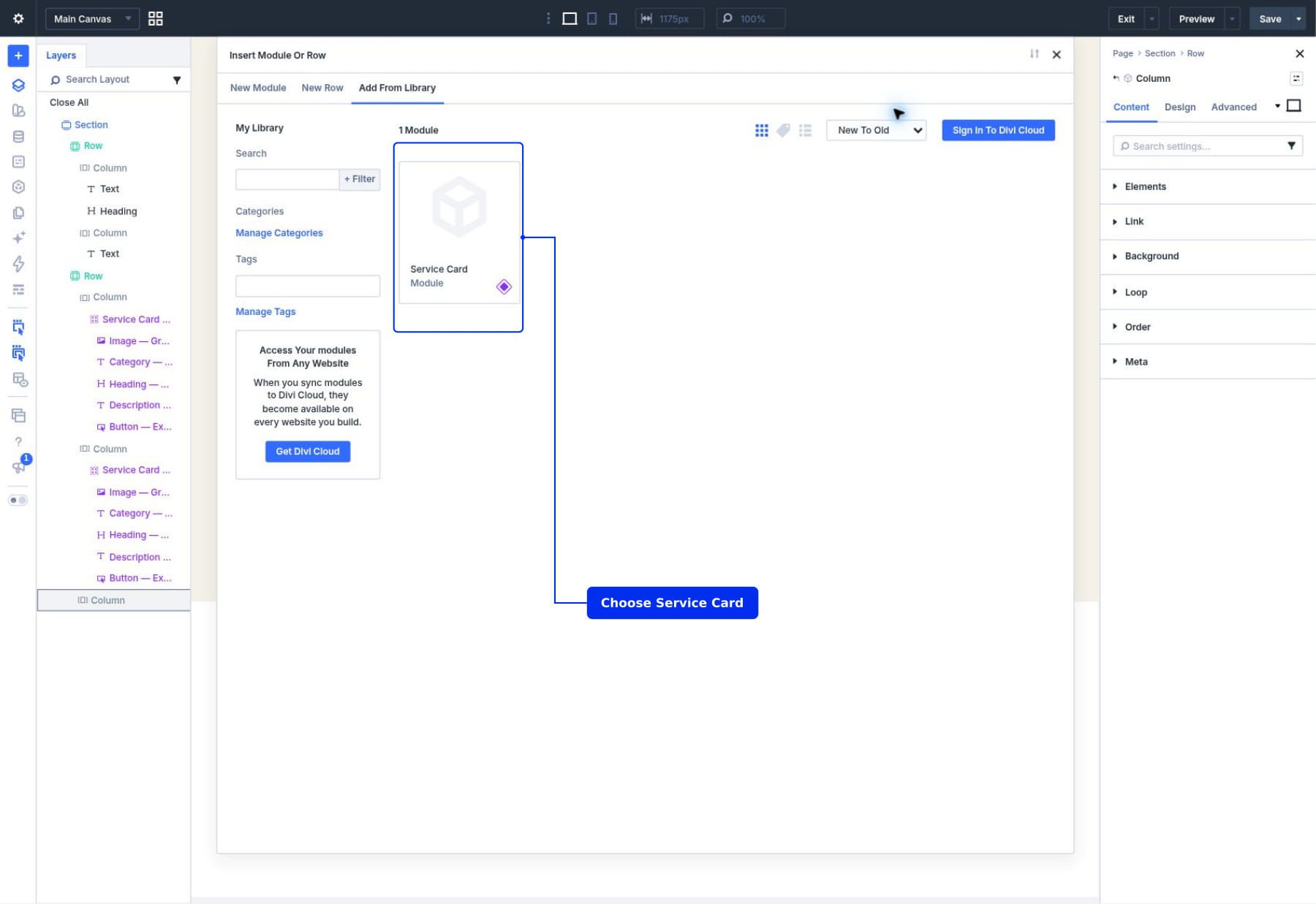

Select the now-empty 2nd card Column, open Web content > Elements , and click Add Element In the picker, select Add From Collection and find Solution Card in My Library.

Start with the Column’s insertion control, as opposed to one inside the very first card Group. The new Team belongs directly inside its own column.

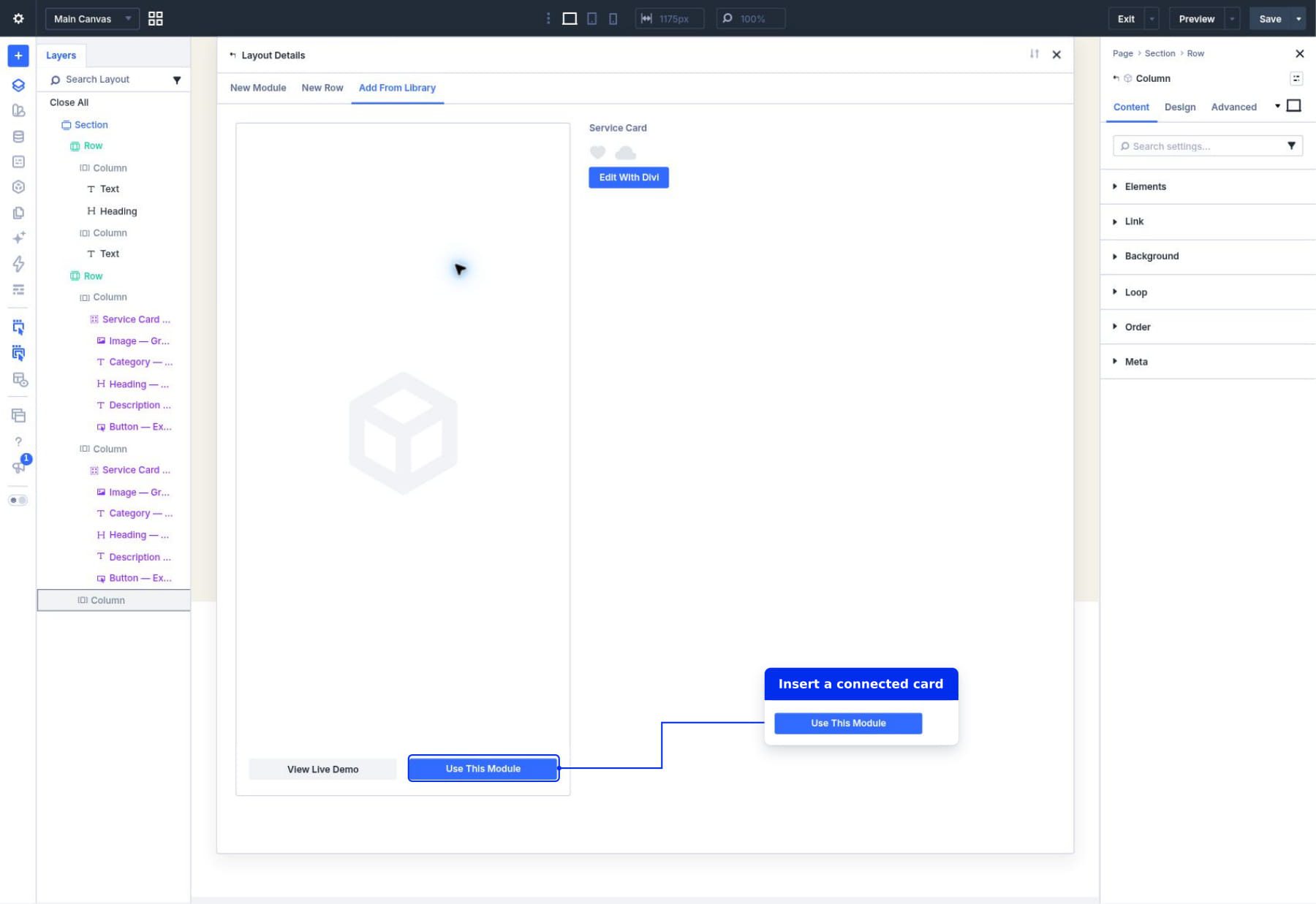

Open up the thing’s details and click Use This Module The conserved Team and its 5 child modules are put together as another instance of Service Card.

Repeat this in the empty 3rd column. Keep one card Team per column. The optional conversion operations listed below describes just how to link a suitable regular Group rather than replacing it.

You can additionally replicate a connected Team on the page for another circumstances. A web page duplicate brings its current neighborhood worths, so review and alter those values for the brand-new service. Replicating a circumstances keeps it connected to the exact same resource.

4 Personalize The Web Design Card

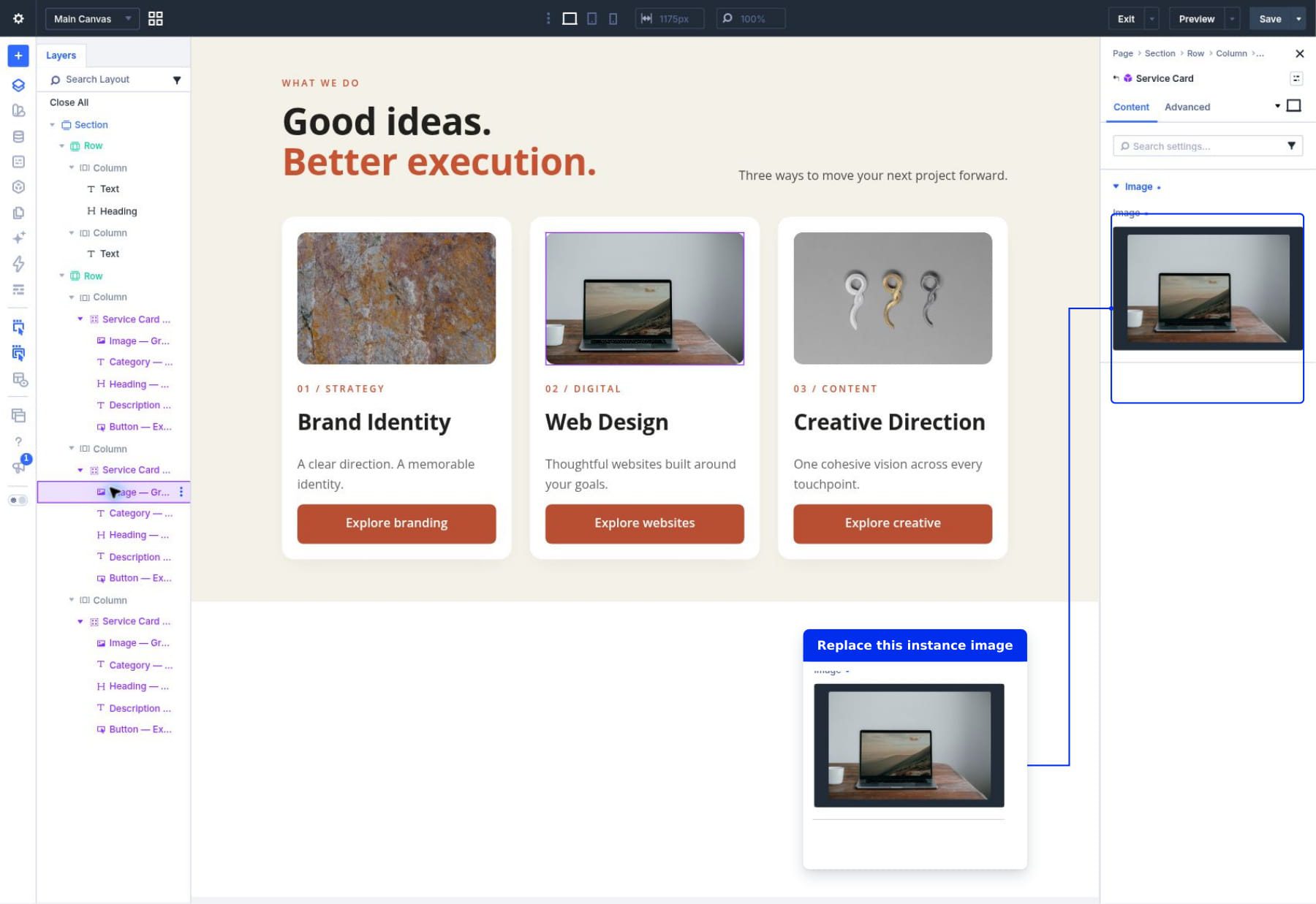

Select the Picture component under the 2nd card Group in Layers. The layer tags may still make use of the source’s Brand name Identity names; use their position below the 2nd Column to determine the Website design card. You should be editing and enhancing the page instance, without picking Edit Component. Under Web content > Photo , click Modify on the picture sneak peek. Select an appropriate web site or laptop computer picture from your Media Library, or utilize Place From URL , after that click Place Into Page Keep the image frame acquired from the source.

For its alt message, open Advanced > Qualities If Photo Alt is provided, click its settings icon and modification Connect Worth to describe the new image. If no entrance is listed, click Add Attribute , pick alt , and utilize these settings:

• Admin Tag: Picture Alt.
• Target Element: Picture.
• Associate Call: alt.
• Associate Worth: A description of the substitute picture.

Close the attribute window after editing. Maintain only one alt attribute targeting Image ; get rid of any kind of replicate entry prior to continuing.

For a laptop computer photo, utilize a description such as Laptop computer on a wood table displaying a mountain landscape. Select words that explain your very own replacement photo.

Select the category Text component and get in 02/ DIGITAL in Body. Then pick its Heading module and get in Web Design in Heading.

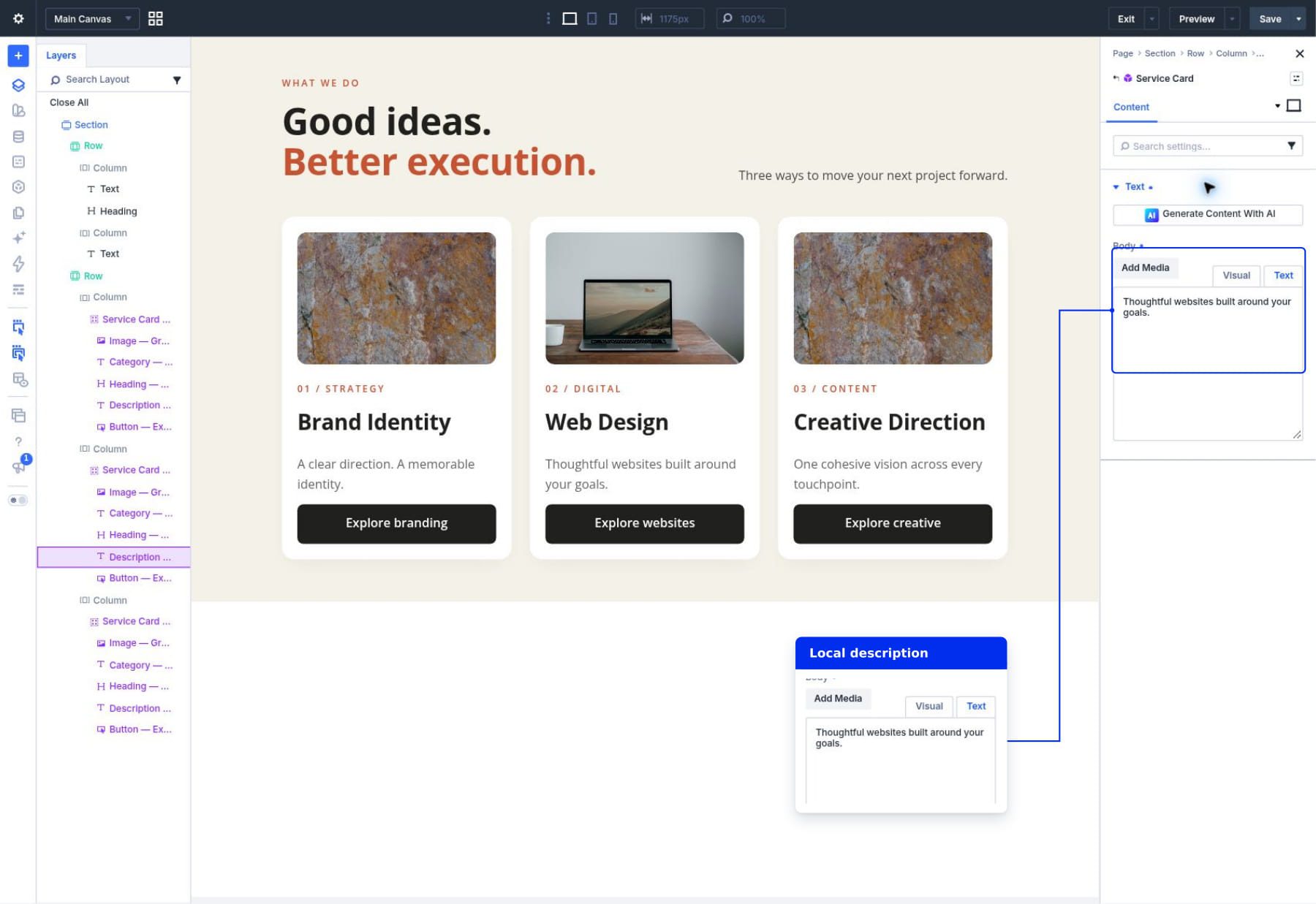

Select the description Text module and get in Thoughtful websites developed around your goals. in Body.

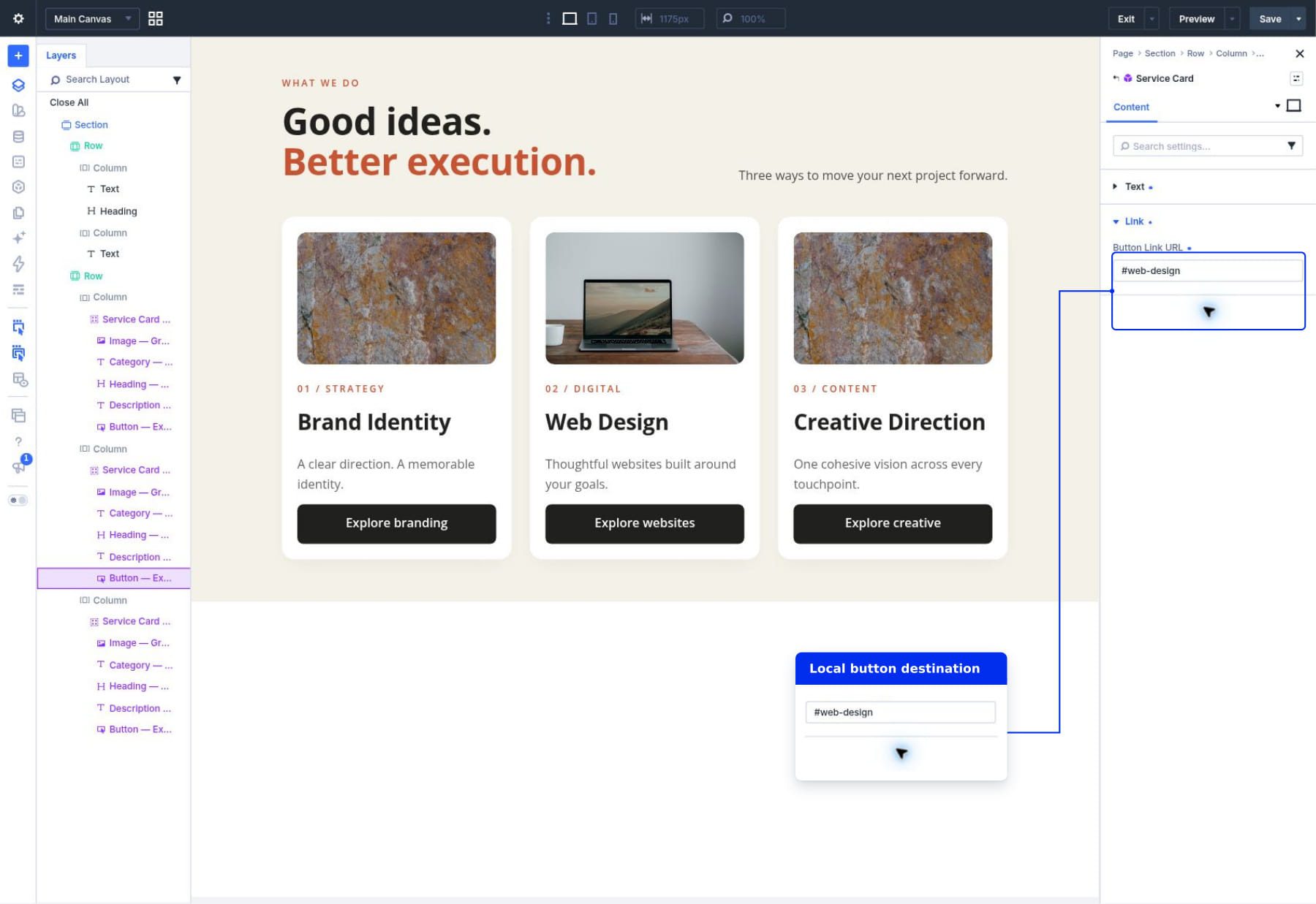

Select the Switch component and get in Discover internet sites in Switch Text. Open up Web link and enter your real Web Design solution web page URL in Button Link URL If you use a support, see to it its matching ID feeds on the web page.

Our presentation makes use of #web-layout with a coordinating anchor on the page. Utilize your service web page’s link for a card that should open up another web page. If you want the same anchor actions, follow our anchor web links guide to create its location first.

These worths belong to the 2nd instance. Its setups window reveals the locally editable Heading area, while the card’s shared design remains connected.

Close the module setups utilizing the X and click Conserve on top right of the contractor to save the web page. You don’t make use of the resource’s confirmation dialog for these local modifications.

5 Personalize The Innovative Direction Card

Repeat the instance-editing procedure for the third card, using these worths:

• Picture: A different image ideal to imaginative work, with its own detailed alt text.
• Category: 03/ MATERIAL.
• Heading: Imaginative Instructions.
• Description: One cohesive vision throughout every touchpoint.
• Switch Text: Explore imaginative.
• Button Web Link Link: Your Imaginative Instructions solution web page.

The first card can keep the source defaults for Brand Identity. The 2nd and third cards now demonstrate regional content variants inside the same common design.

Conserve the web page once again after customizing the 3rd card. There are 2 conserve procedures in this operations:

• Source adjustments: Usage Save at the bottom of the Element editor, after that validate the site-wide upgrade.
• Web page modifications: Use Save at the top right of the building contractor to maintain instance material and the web page format.

6 Update The Shared Switch Design

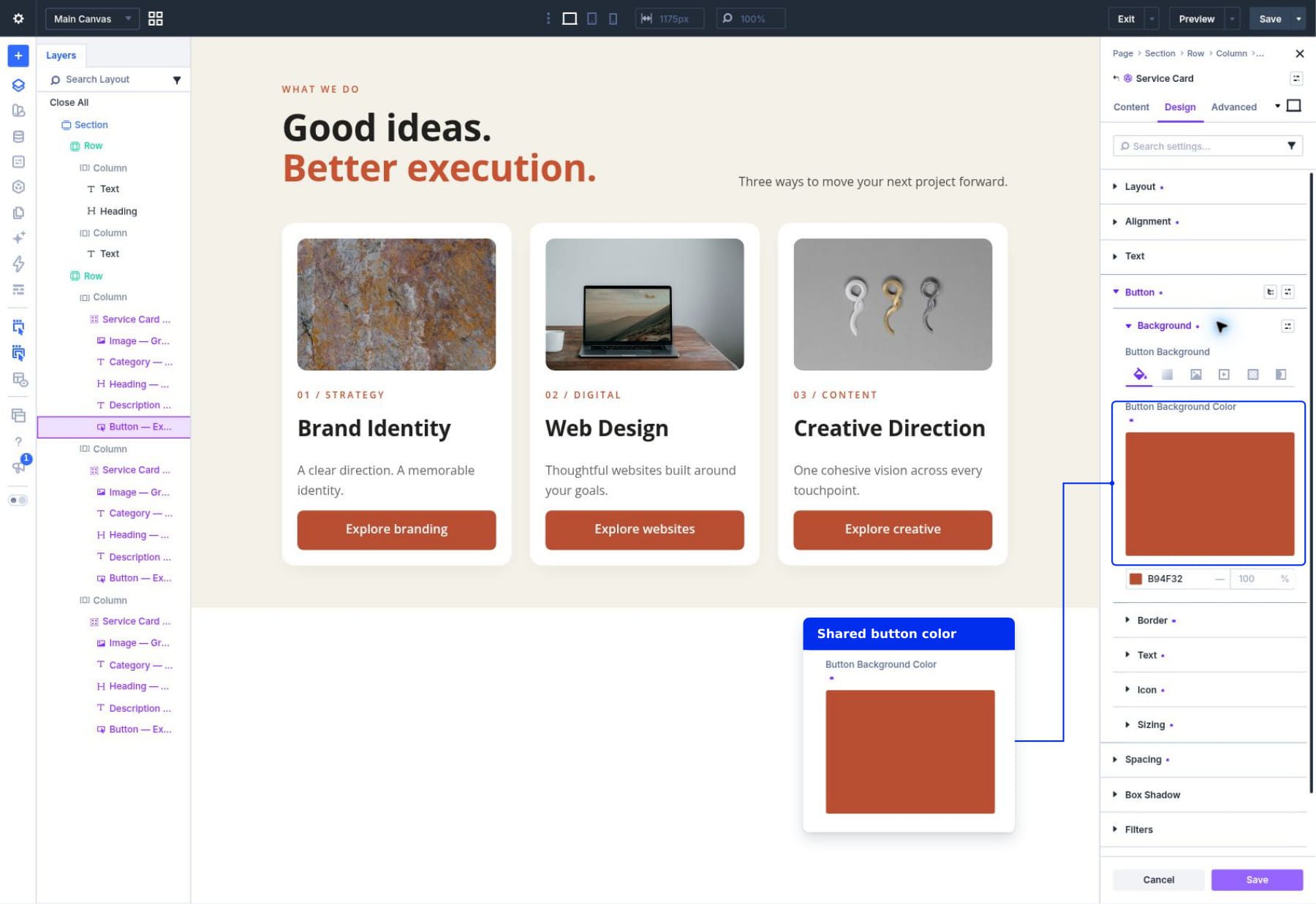

Select a linked card’s Switch component in Layers, then pick Edit Component from that module’s Component menu. Change its common switch background from charcoal to a scorched orange that matches the area’s accent shade.

Open Layout > Switch > History and set the switch history color to #B 94 F 32 Maintain this design field integrated. Save and validate the source upgrade.

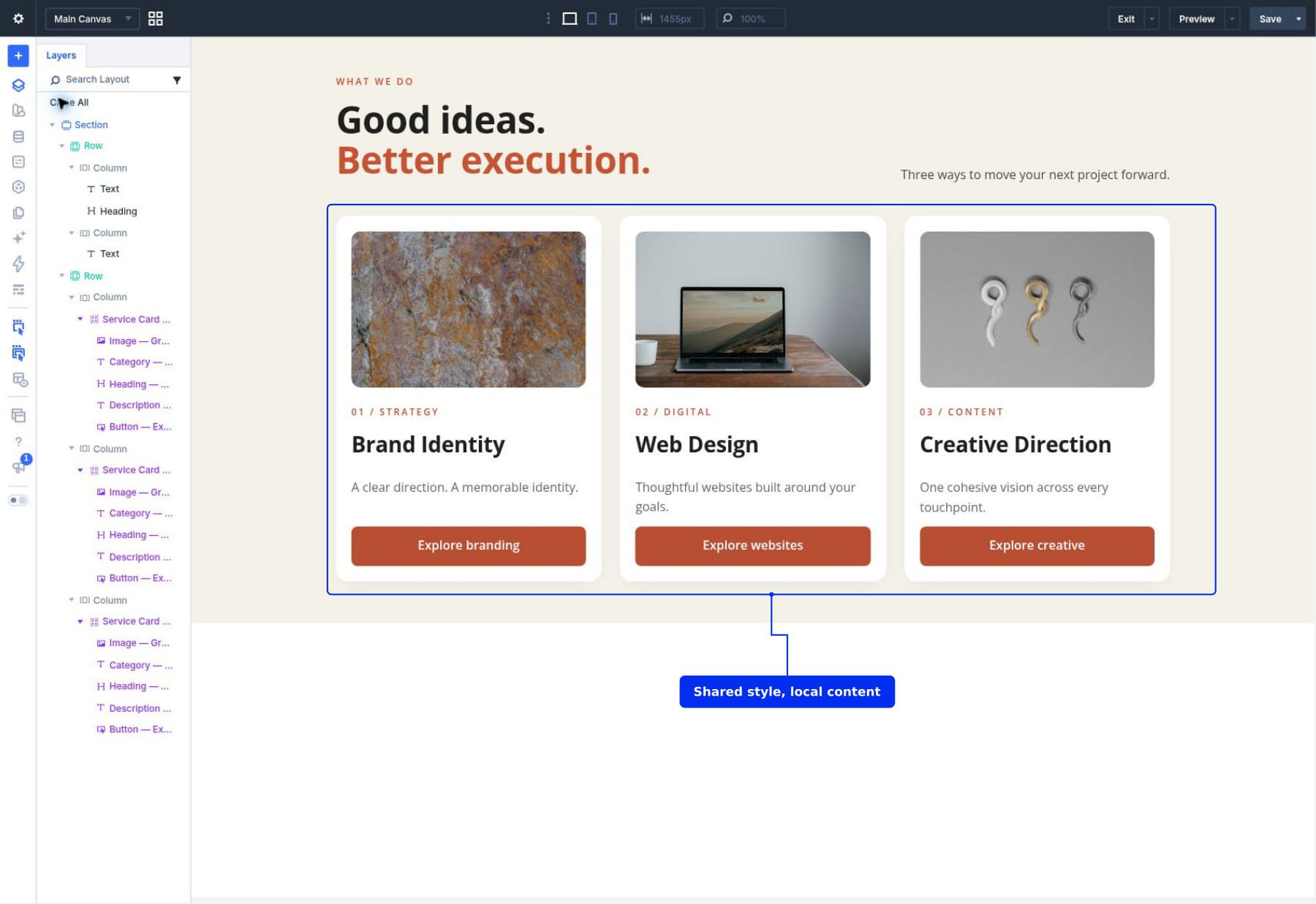

All 3 connected cards now receive the very same button designing. Their regional web content and button URLs stay intact due to the fact that those fields allow instance modifying and preserve their overrides.

You can now upgrade the common card layout without editing and enhancing each solution’s web content once again.

7 Inspect Tablet And Phone Layouts

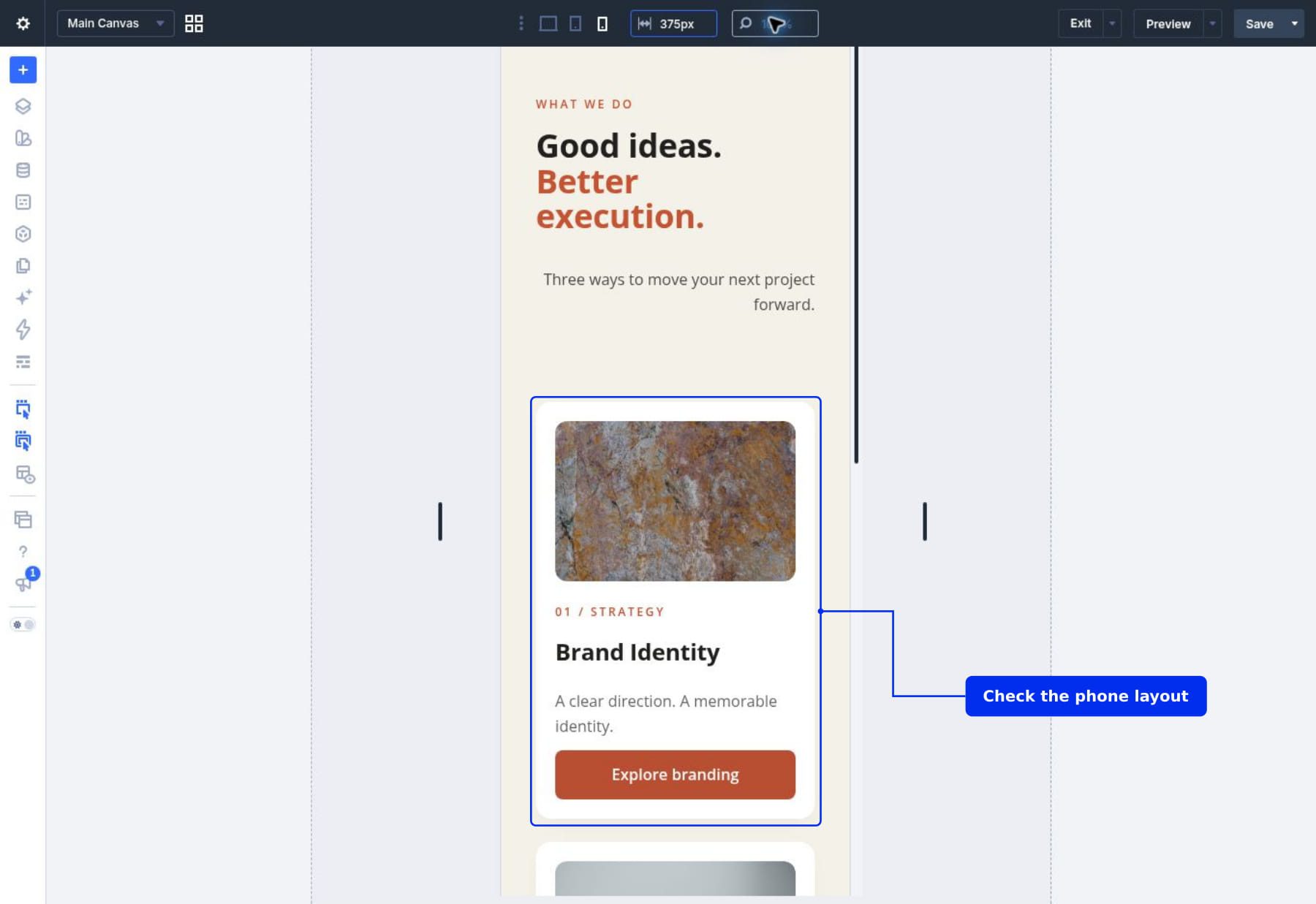

Make use of the home builder’s tablet and phone previews to evaluate the full area. Our card row stacks right into one column on smaller screens, and each Team loads its readily available column width.

The row’s receptive column plan comes from the bordering page layout. The card’s cushioning, photo frame, and typography come from its Component. Check both when adjusting this instance to one more page.

Check for unanticipated text wrapping using each card’s real web content; the resource’s shortest default message will not expose every spacing problem. Conserve responsive source modifications with the Element controls, then conserve any web page layout modifications on the web page.

Reset A Regional Value To The Source Default

An instance override is useful when a card needs various content. If you later want that area to adhere to the source again, reset it.

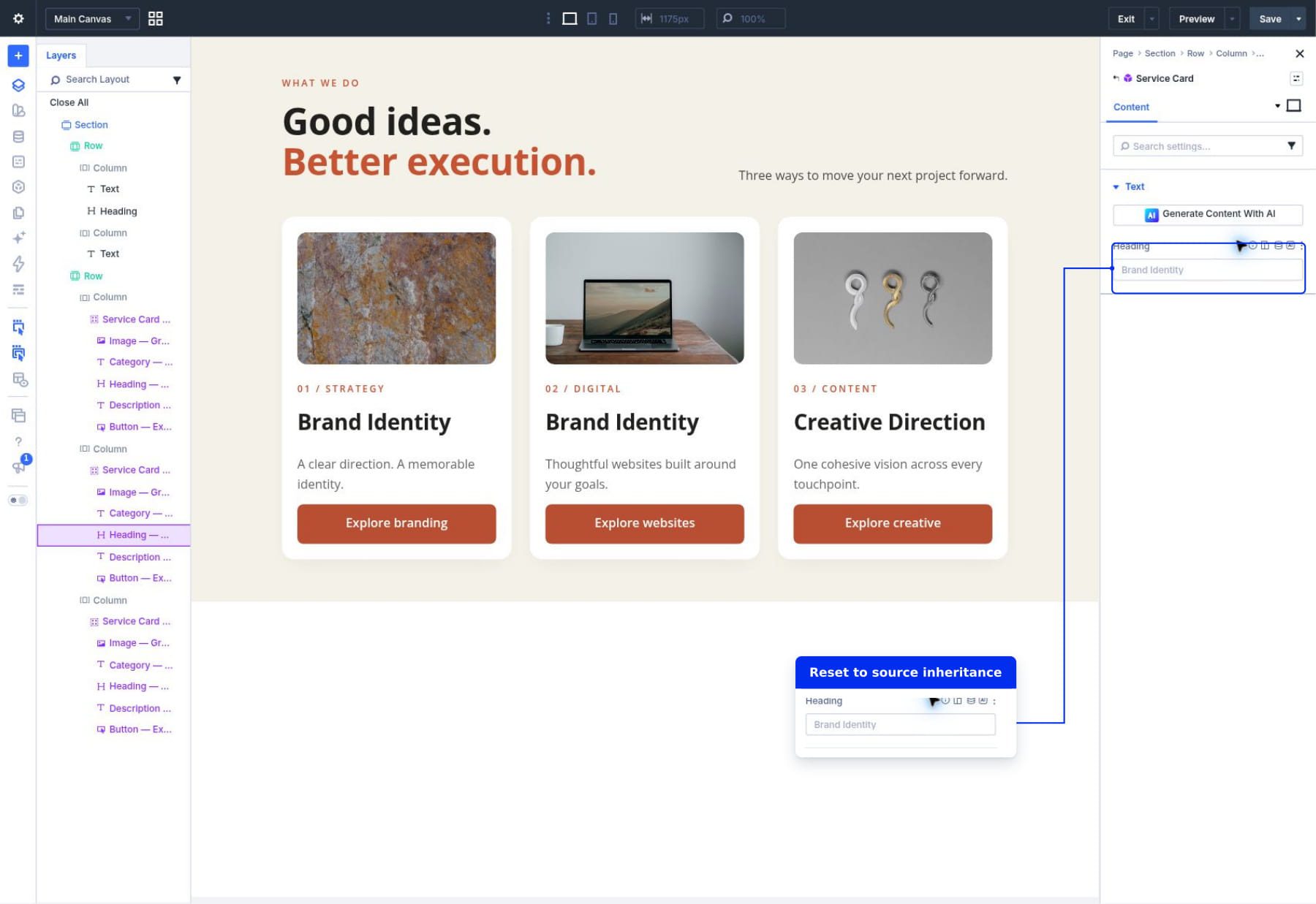

1. Open Up the Website design card’s Heading component in instance setting.
2. Broaden Web content > Text and locate Heading.
3. Utilize the field’s Reset control.
4. The heading returns to the source’s Brand name Identification default.

The area now inherits future source changes. For this tutorial, enter Website design once more to restore the service-specific title before saving the page.

Changing a source field back to integrated is a wider activity. It makes the resource authoritative for that field across linked circumstances, so evaluate existing regional content prior to transforming synchronization rules.

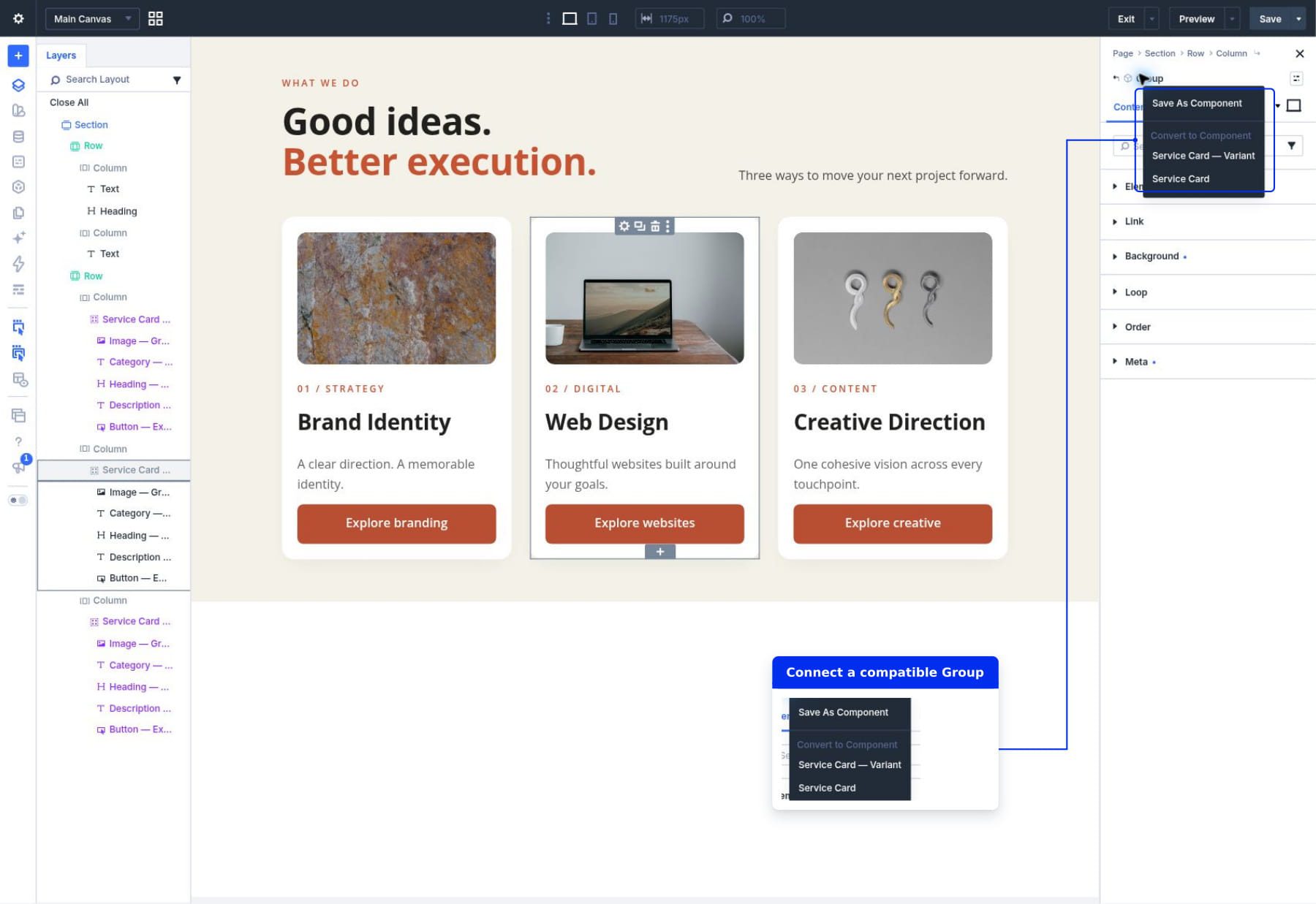

Connect A Compatible Existing Card

You might already have a number of regular service-card Groups on a page. Divi can provide an existing Element as a conversion selection when the selected aspect has a suitable framework.

1. Select the regular Team you wish to connect.
2. Open the menu close to its name in the settings home window.
3. Under Convert To Component , select Service Card
4. Testimonial every locally editable area and change any type of material that took on a source default.
5. Conserve the web page.

Conversion connects the Group to the picked resource. Testimonial every editable area afterward, consisting of the photo and button URL. A value from the ordinary Team might adopt the resource default rather than ending up being a local override. If the source is not offered, place it from the Library and transfer your content into its editable fields.

Detach One Component Or The Entire Part

Detaching is useful when a component needs to end up being separately editable. Select the smallest scope that matches the change.

Remove A Kid Component

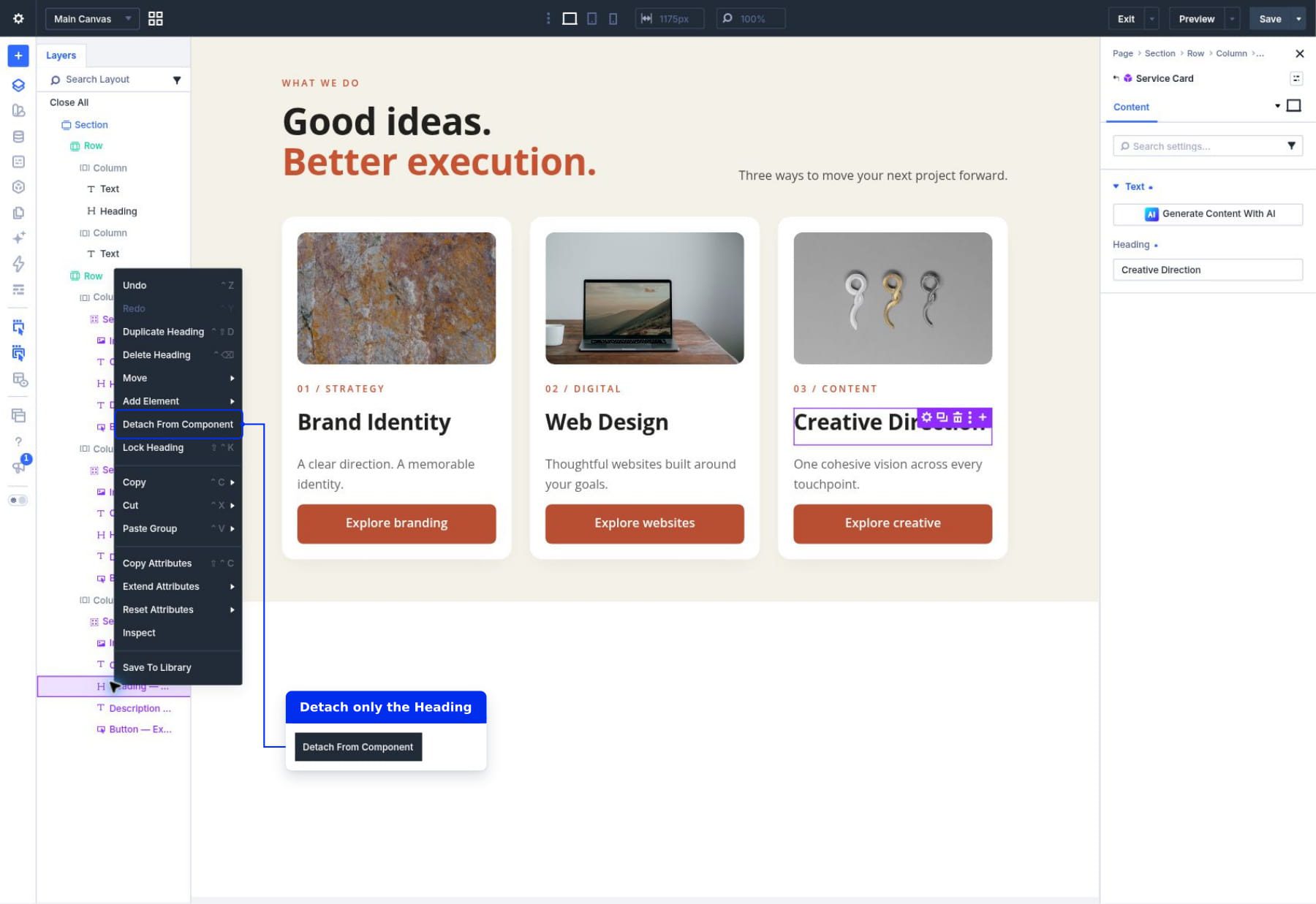

For instance, intend just the Creative Direction heading needs various typography. Right-click its Heading component in Layers and choose Remove From Part

That Heading becomes locally editable with its complete setups, including Design and Advanced. The rest of the card stays attached to Solution Card.

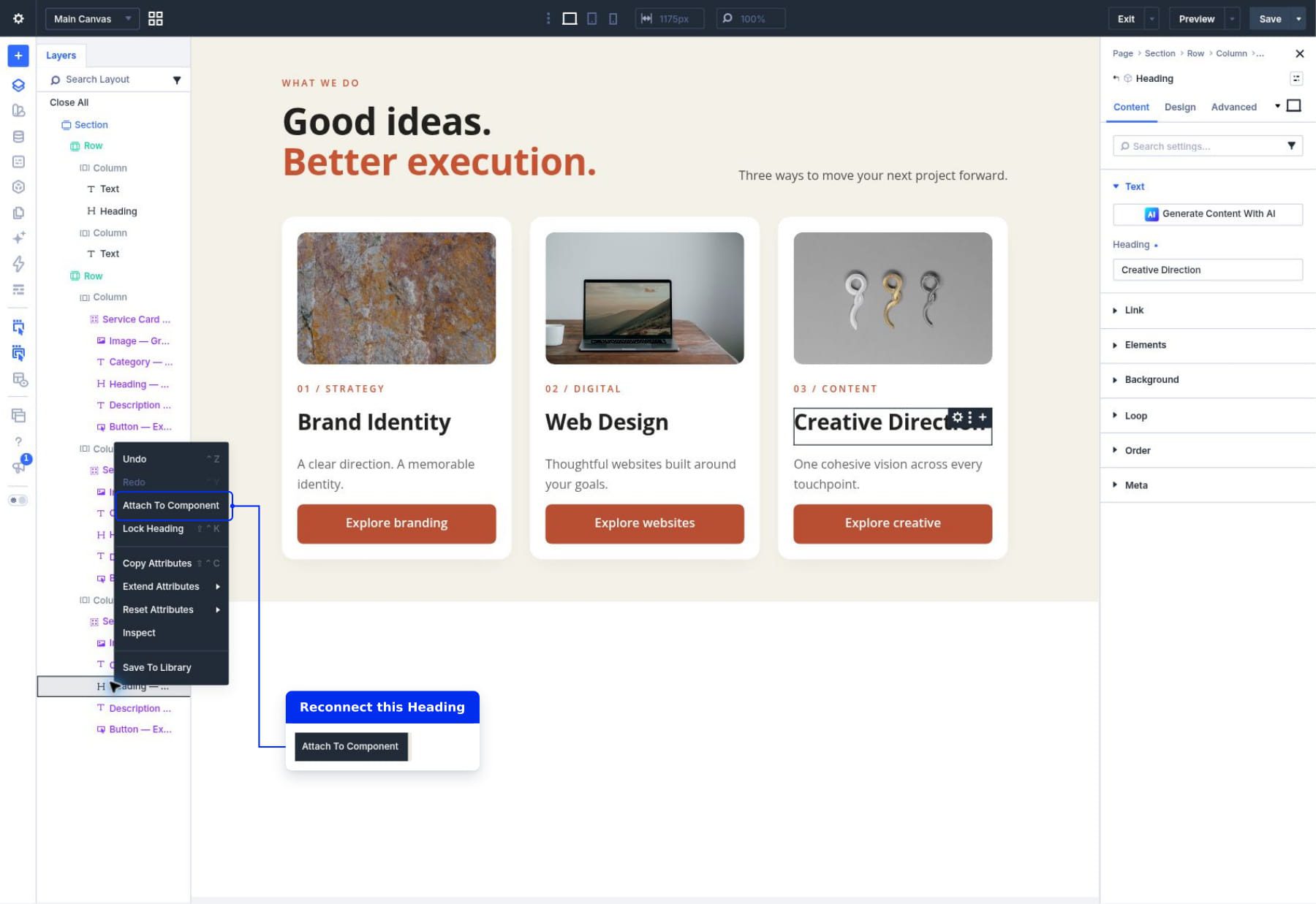

To reconnect the exact same youngster module, right-click it and select Connect to Component Testimonial the outcome, given that reconnecting returns integrated settings to the source’s control.

Detach The Whole Card

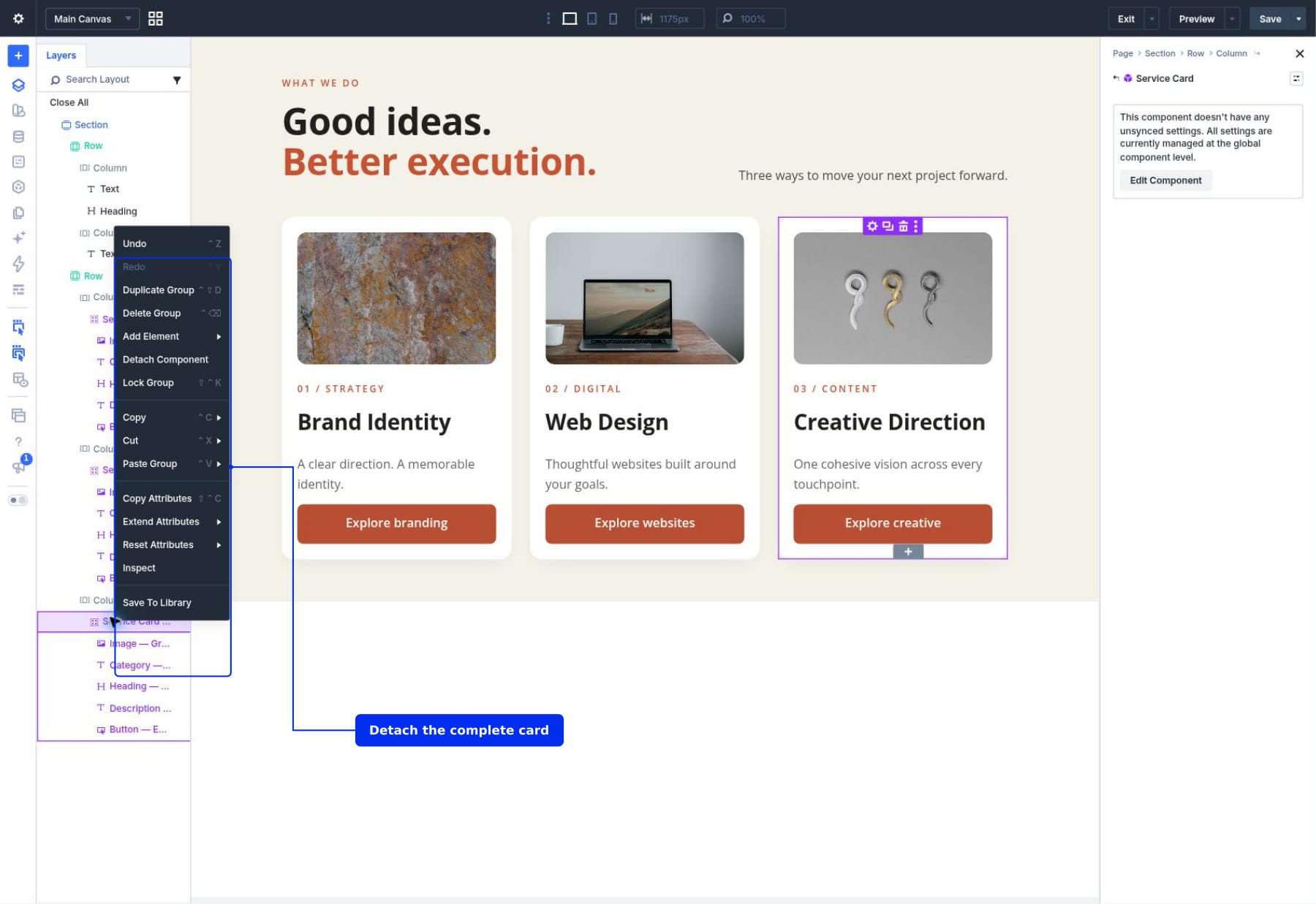

Right-click the external card Group and choose Detach Element to make the whole card an ordinary web page component.

The detached card keeps its present appearance and web content, but future source updates no longer keep it. Use this for an intentional one-off layout. Maintain repeating cards attached when they ought to continue sharing updates.

Manage Your Part Sources

Open the Elements panel from the home builder sidebar to take care of saved sources. This is various from Layers: Layers reveals elements on the current page, while Elements lists multiple-use resources.

Name And Preview The Resource

Pick Service Card to edit its source. Under Part Settings , provide it a descriptive title. Utilize the preview icon close to the source title in its settings header to evaluate the saved style and default material.

A Library title identifies the multiple-use resource. A local heading such as Web Design recognizes a particular card’s material. Transforming one does not call for transforming the various other.

Duplicate A Resource For A Separate Design

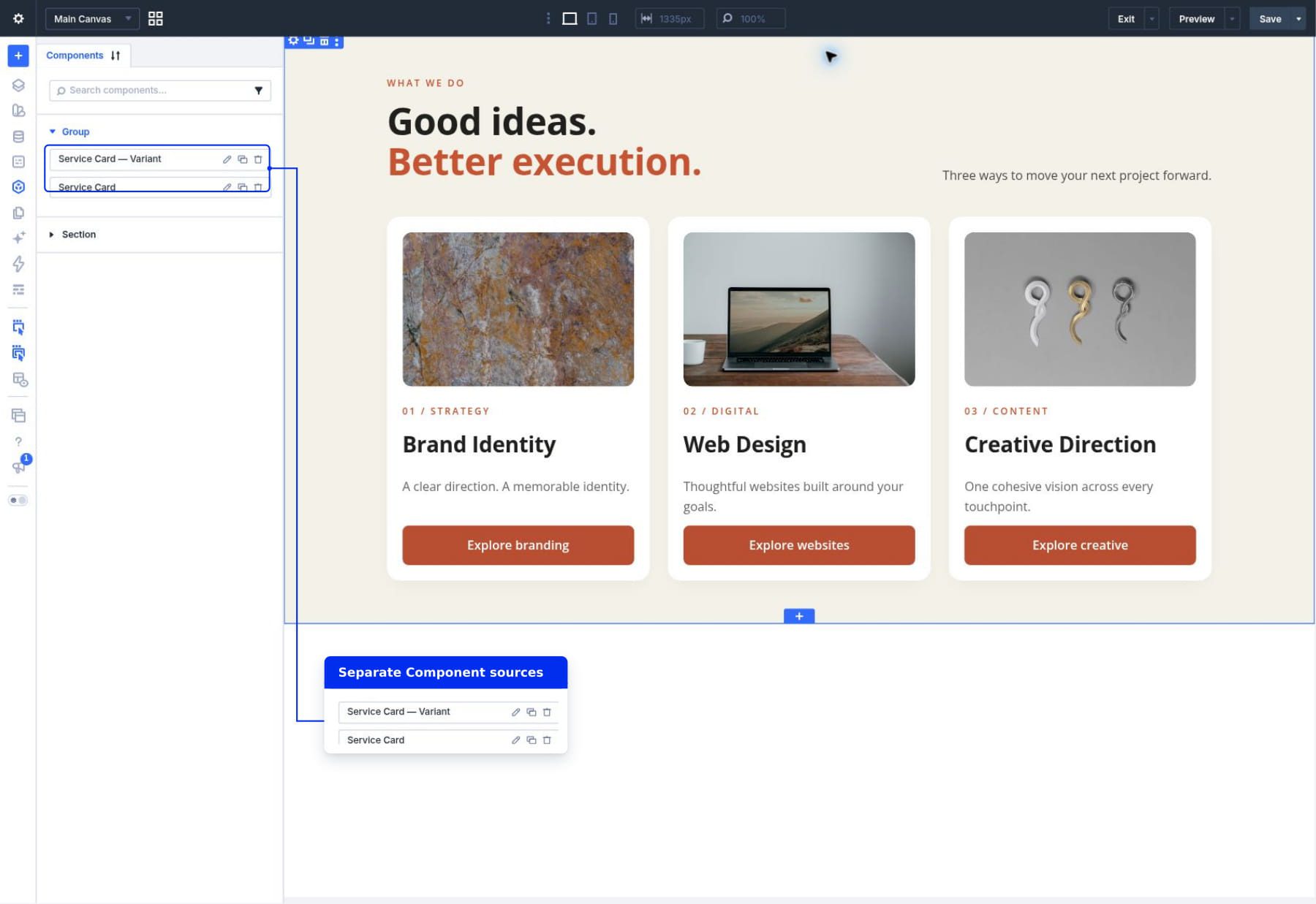

Make use of the resource’s Replicate control in the Elements panel when you desire a different recyclable layout. Relabel the copy, for instance Service Card– Variant , and wait.

Duplicating the source produces an additional Part you can keep individually. Replicating an instance on a web page produces an additional connected use of the same resource. Pick between them based upon whether the new card should share future style updates.

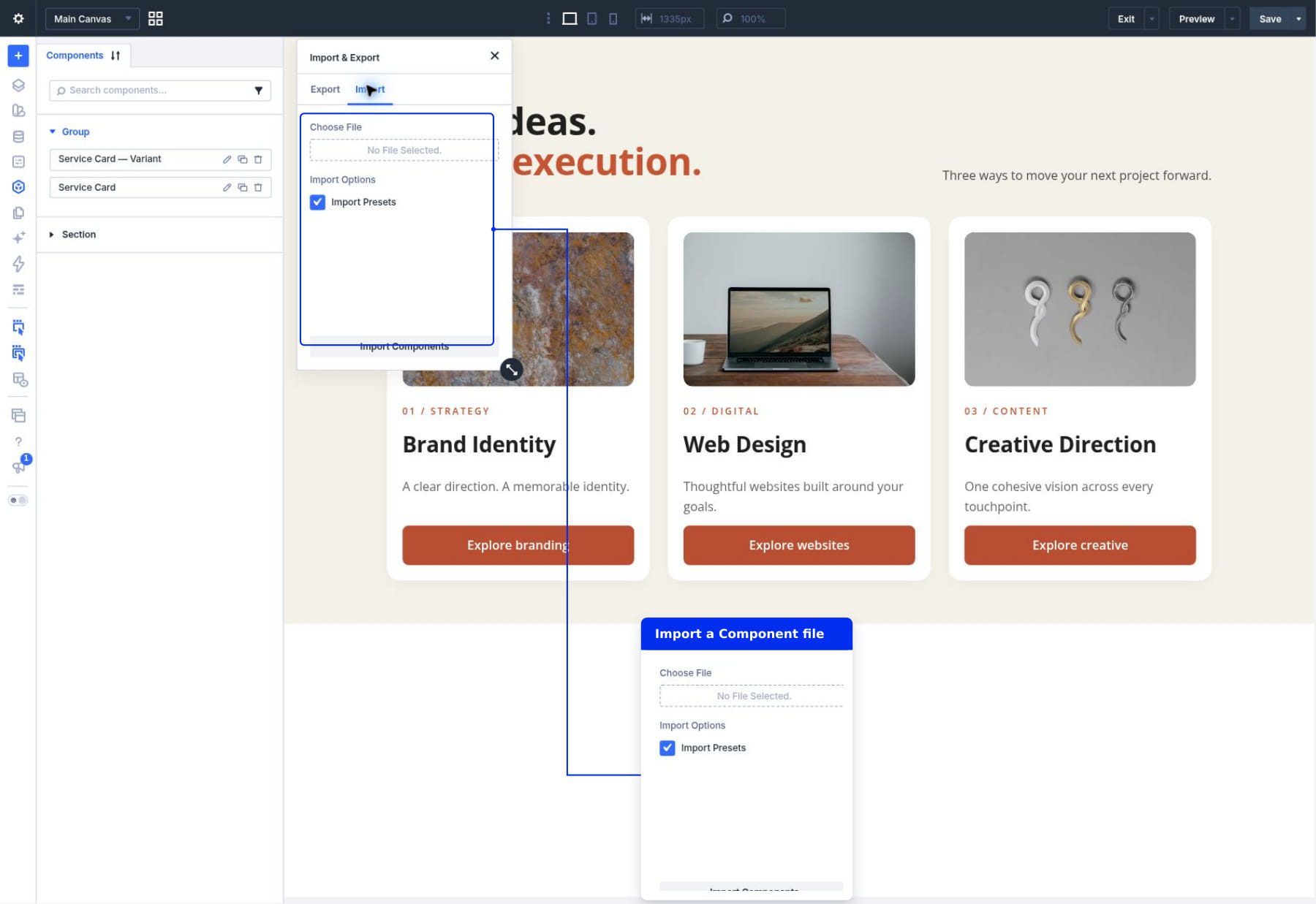

Export And Import Parts

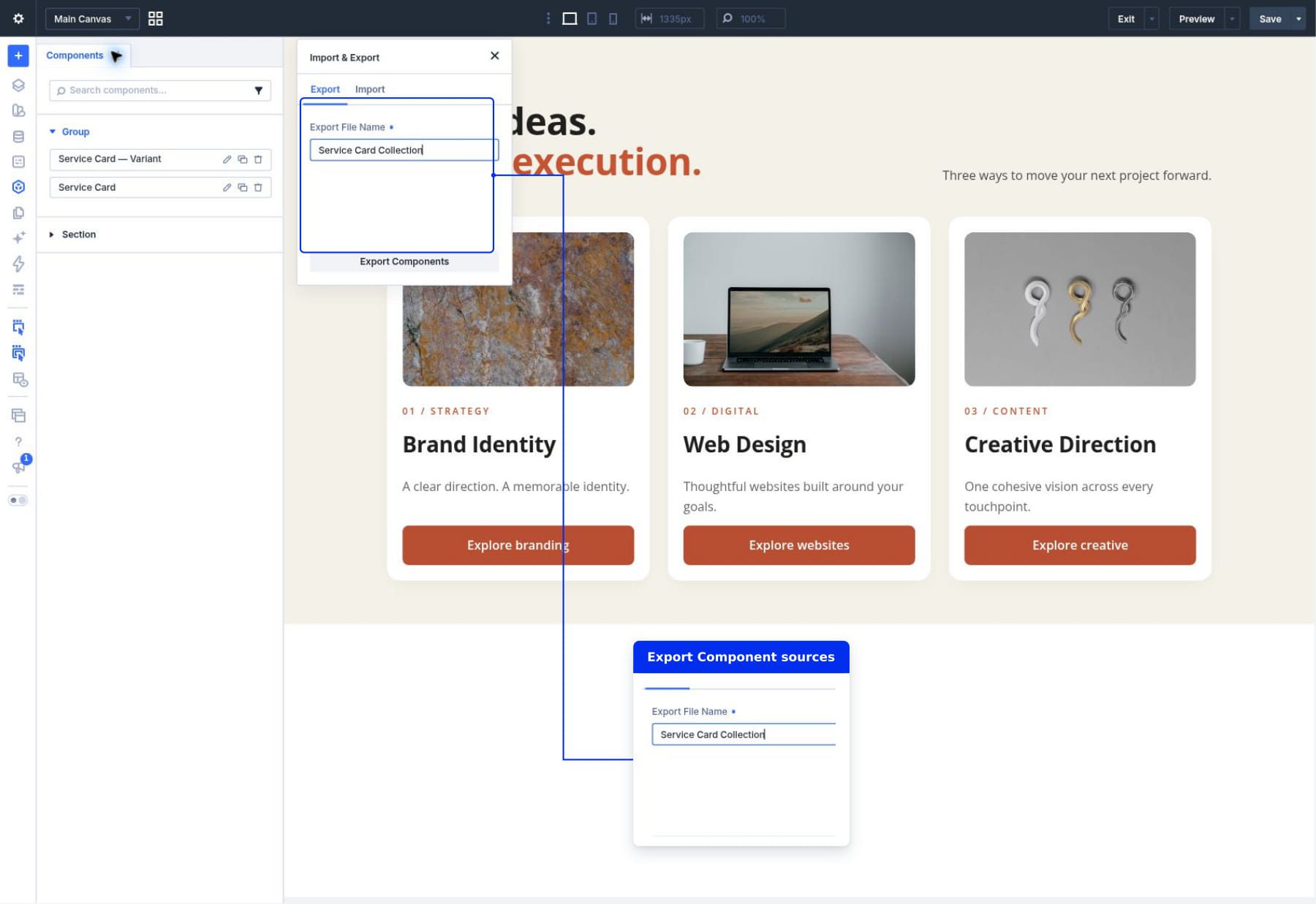

Open up Import & Export from the Parts panel. In Export, provide the documents an identifiable name, such as Service Card Collection , and click Export Parts to download and install the JSON file.

On the location site, open up the same home window’s Import tab, pick the exported documents, evaluate the Import Presets option, and click Import Components Consisting of presets matters when the exported styles depend on them.

Testimonial the imported design on the location site, consisting of pictures and web links. Part mobility and Layout Variable transportability are different components of relocating a total design system.

Where Elements Are A Lot Of Valuable

The service card is one practical instance. The exact same technique works whenever several usages must share a structure while allowing selected material to vary:

• Team cards: Shared photo framing and typography with various names, duties, and bios.
• Testimonials: Shared quote styling with various quotes and customer details.
• Promotional areas: Shared layout and switch style with different headlines, images, and locations.
• Pricing cards: Shared visual framework with editable plan names, prices, and summaries.
• Multiple-use web page areas: A maintained area layout with thoroughly picked regional content areas.

Elements can likewise be part of a broader system utilizing presets and variables. Our overview to developing a layout system with embedded and stacked presets covers the designing side of that operations.

Tips For A Clear Element Workflow

• Finish one valuable instance first. Deal with spacing, switch style, and responsive actions prior to recycling it widely.
• Reveal the areas that ought to differ. For these cards, that indicates material and destinations while the card layout remains shared.
• Maintain source defaults useful. A newly placed instance needs to offer you a reasonable starting point.
• Inspect the editing and enhancing context. Source adjustments influence connected usages; instance adjustments impact the selected usage’s editable areas.
• Testimonial synchronization changes. Returning a field to resource control can replace regional values.
• Give each image precise alt text. Changing a photo likewise requires examining its summary.
• Examine the longest genuine web content. A style that fits Brand name Identification still needs to fit Innovative Instructions.
• Save both contexts when essential. Confirm resource updates, after that save page-specific web content and format adjustments.

Develop Reusable Layouts With Parts

Our 3 solution cards share their layout, picture frameworks, spacing, typography, and button designing. Their pictures, titles, descriptions, and locations can vary. One source upgrade preserves their typical layout while each card continues presenting its own solution.

Start with an element you currently repeat, save it as an Element, and make its variable content editable. For more history, reviewed the Components release announcement , or discover the remainder of Divi’s website-building devices
