With the introduction of the Abilities API and the AI Client, WordPress has evolved into a true execution engine, bridging your applications with the AI models of your choice.
This monumental shift changes what the CMS is at its core. However, it also adds a layer of complexity to the overall ecosystem, making process observability and performance monitoring increasingly vital to managing a modern website.
Today, we’re not just here to tell you how important it is to monitor your site’s behavior as machines become more present (or intrusive) in your access logs. Instead, we want to give you clear, concrete proof of how these new AI features directly impact your site’s resources.
To do this, we’ll leverage two MyKinsta tools: Kinsta APM—our application performance monitoring tool—and server access logs. Both features are available to all Kinsta clients at no extra cost.
Curious to see how much AI is actually impacting your WordPress site? Let’s dive in!
How to monitor AI workloads in WordPress
Your site interacts with AI in several ways. These range from AI bot and crawler scans to operations performed internally by plugins via the AI Client, to requests made by external applications and AI agents querying your site through the Abilities API.
Consider the time required to generate an image or transcribe an audio file. These AI operations often take several seconds to complete. During this time, a PHP worker/thread is unavailable for other operations, whether triggered by a human user or a machine.
While this might not be an issue for every site, it becomes a critical factor to monitor carefully for high-traffic business sites and e-commerce stores with hundreds or thousands of products.
An Application Performance Monitoring (APM) tool helps you accurately measure the impact of AI on your WordPress site.
You could use a tool like New Relic to keep track of WordPress transactions, hooks, plugins, themes, database queries, external requests, and everything that helps you pinpoint performance issues.
Kinsta users have access to a free Application Performance Monitoring tool directly available inside the MyKinsta dashboard.

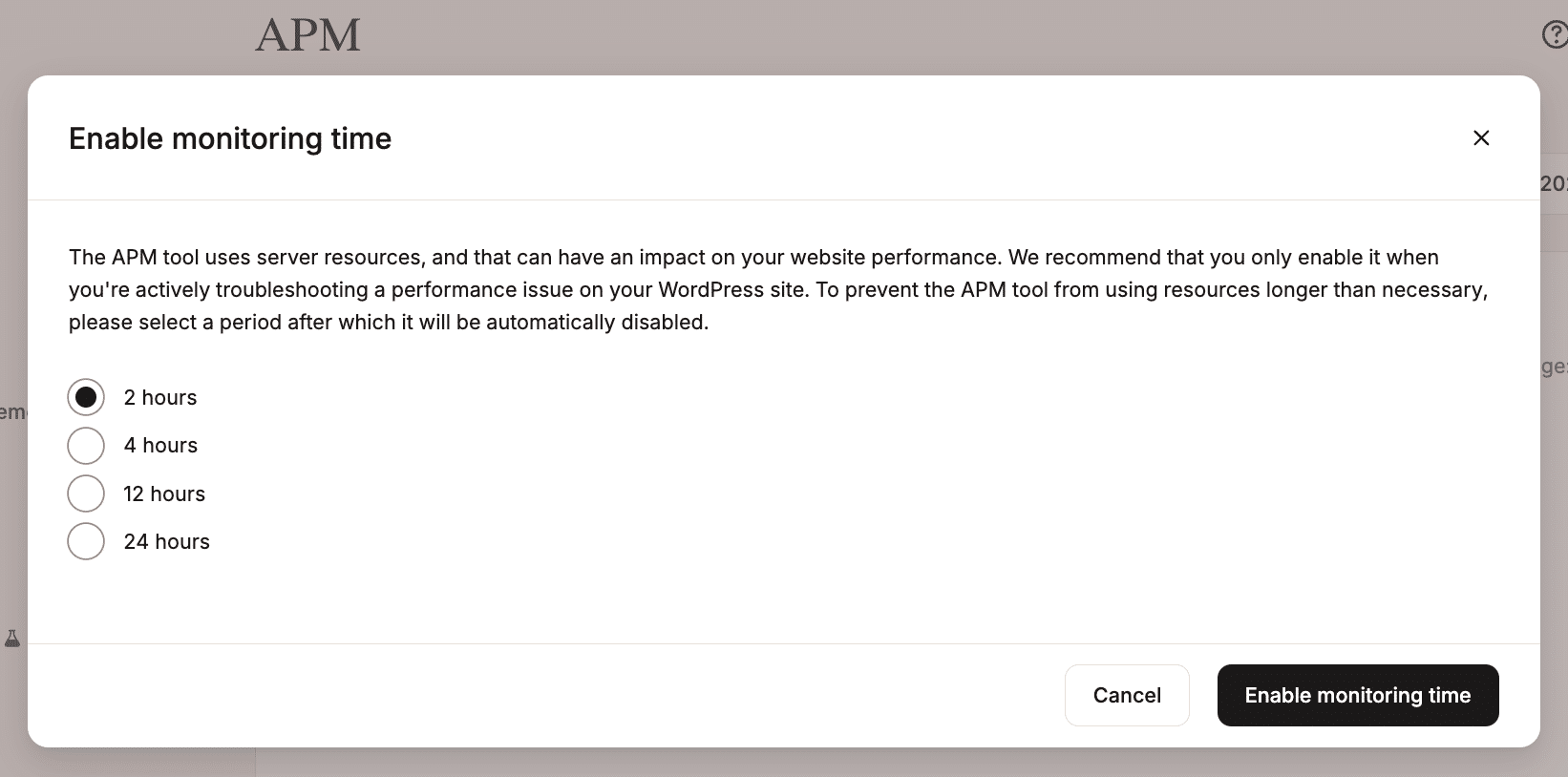

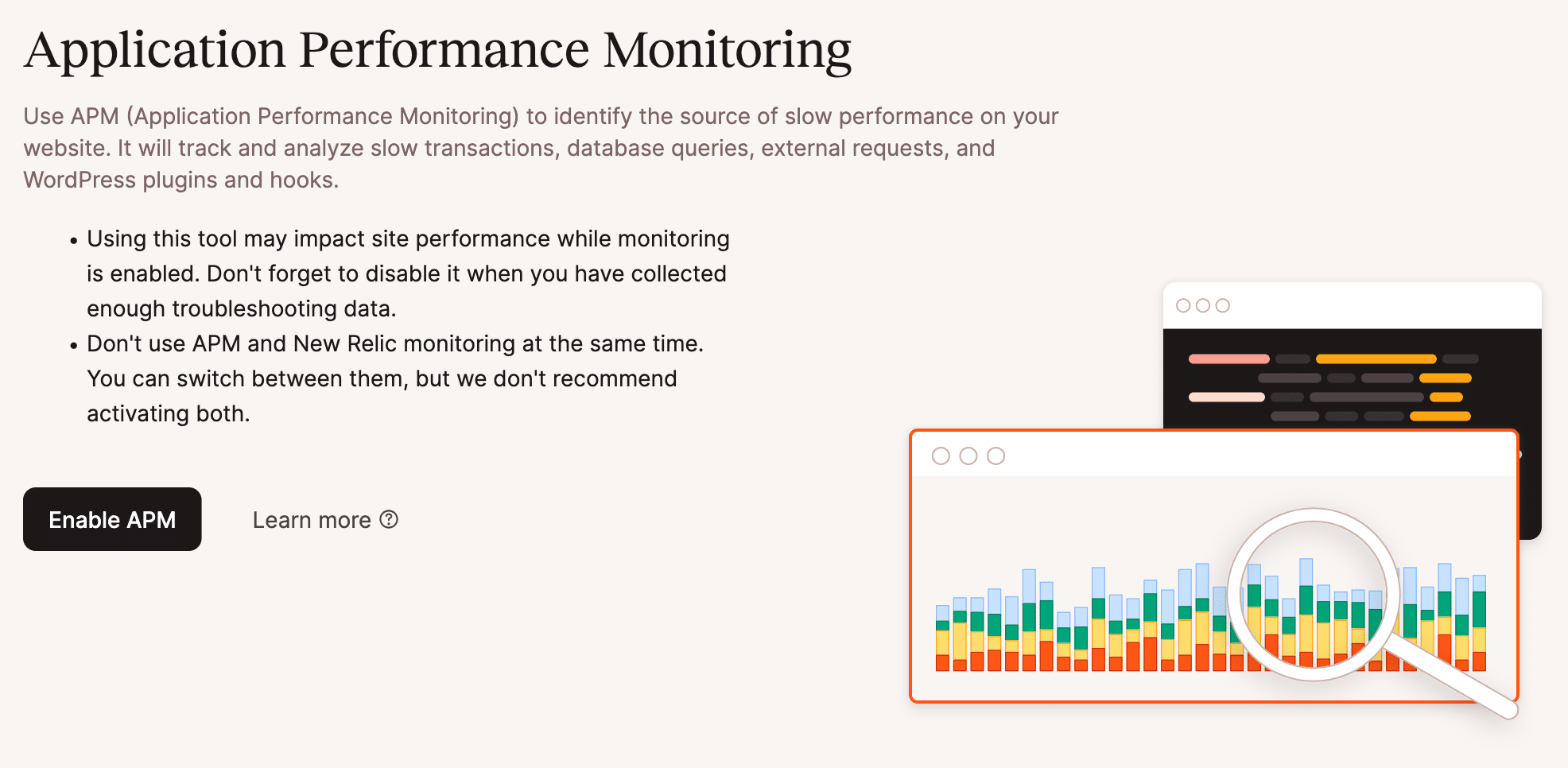

To enable Kinsta APM, navigate to Sites > sitename > APM and click Enable. Select your desired interval and let the tool record your site’s activity.
When the monitoring is complete, you’ll receive an automated email with a link to the results page, where you can dive into detailed charts covering transactions, plugins, themes, hooks, slow database queries, and external requests.
Access and error logs are another goldmine of insights into what is happening under the hood. Typically, you can access server logs through your hosting control panel or within your server’s file system via FTP or SSH.
These logs provide comprehensive data to troubleshoot errors, identify performance bottlenecks, and pinpoint your primary traffic sources.
Kinsta users can download log files directly from the server via SFTP or SSH, or through the MyKinsta File manager. You can also inspect error, cache, and access logs directly using the MyKinsta Log viewer.
In the following sections, we’ll analyze an AI operation to help you understand how to measure the impact of AI usage on your website and why it requires robust infrastructure and proper monitoring.
Let’s look at a real-world example by asking an AI model to generate a featured image for a blog post.
AI image generation in WordPress
For our tests, we asked AI to generate a featured image for a WordPress blog post using the official WordPress.org AI plugin. To run the same tests, follow these steps:
- Configure a connector in the Connectors screen of the WordPress admin
- Install and activate the official WordPress.org AI plugin
- Enable Kinsta APM and monitor the access logs in MyKinsta
- Create a new post and generate a new featured image using the AI feature
Let’s get started.

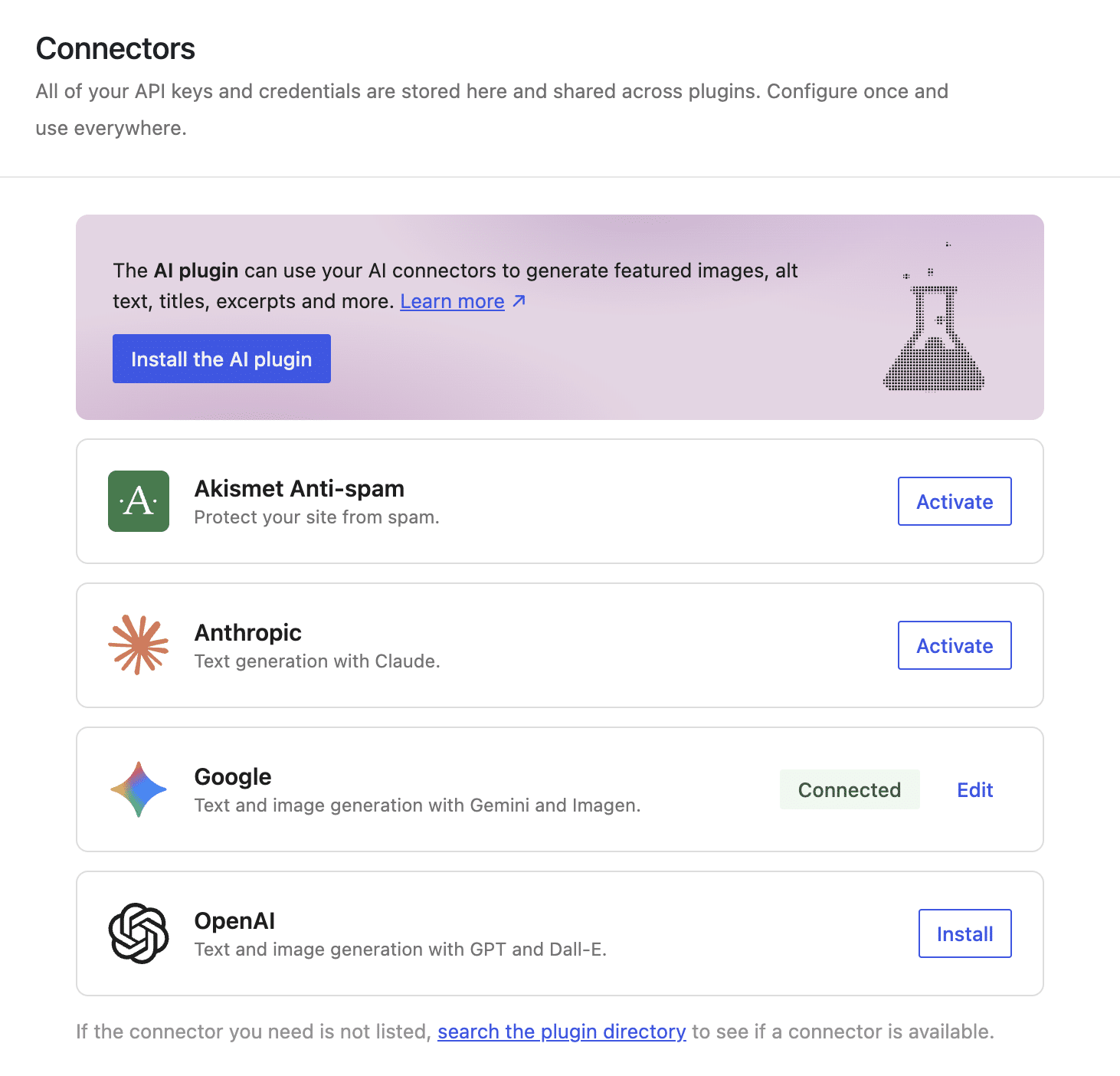

Step 1: Configure a connector in the Connectors screen
To get started, you’ll need an API key from your AI provider. We won’t be covering that step here, but you can check your provider’s documentation for details.
Once you have your API key, open your site admin and navigate to Settings > Connectors. Click on the Activate button for your AI provider and enter your API key.
Step 2: Install and activate the official WordPress.org AI plugin
Out of the box, WordPress provides the APIs and abstractions. To equip your site with an AI image generation feature, you’ll need to install a plugin that leverages the AI core infrastructure, such as the official AI plugin provided by WordPress.org.

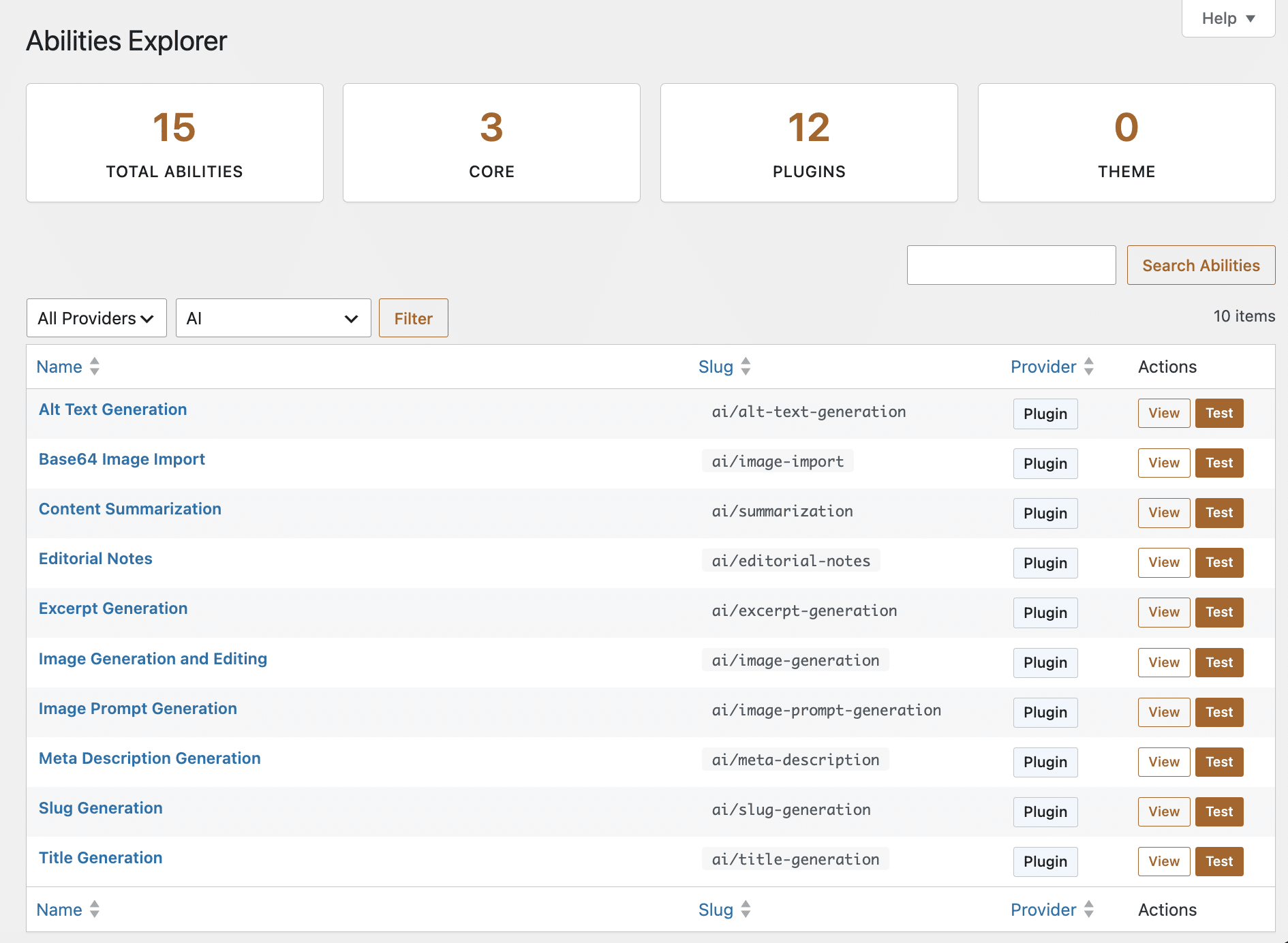

This plugin adds several abilities that you can inspect in the Abilities Explorer screen, under Tools > Abilities Explorer.
Among the registered abilities, notice Image Generation and Editing. This ability allows you to generate a featured image based on a post’s content or a custom prompt when invoked from the Media Library.
Step 3: Enable Kinsta APM and monitor the access logs in MyKinsta
In MyKinsta, navigate to Sites > sitename > APM and enable Kinsta APM. Set a monitoring duration of 2 hours, then click Enable monitoring time.

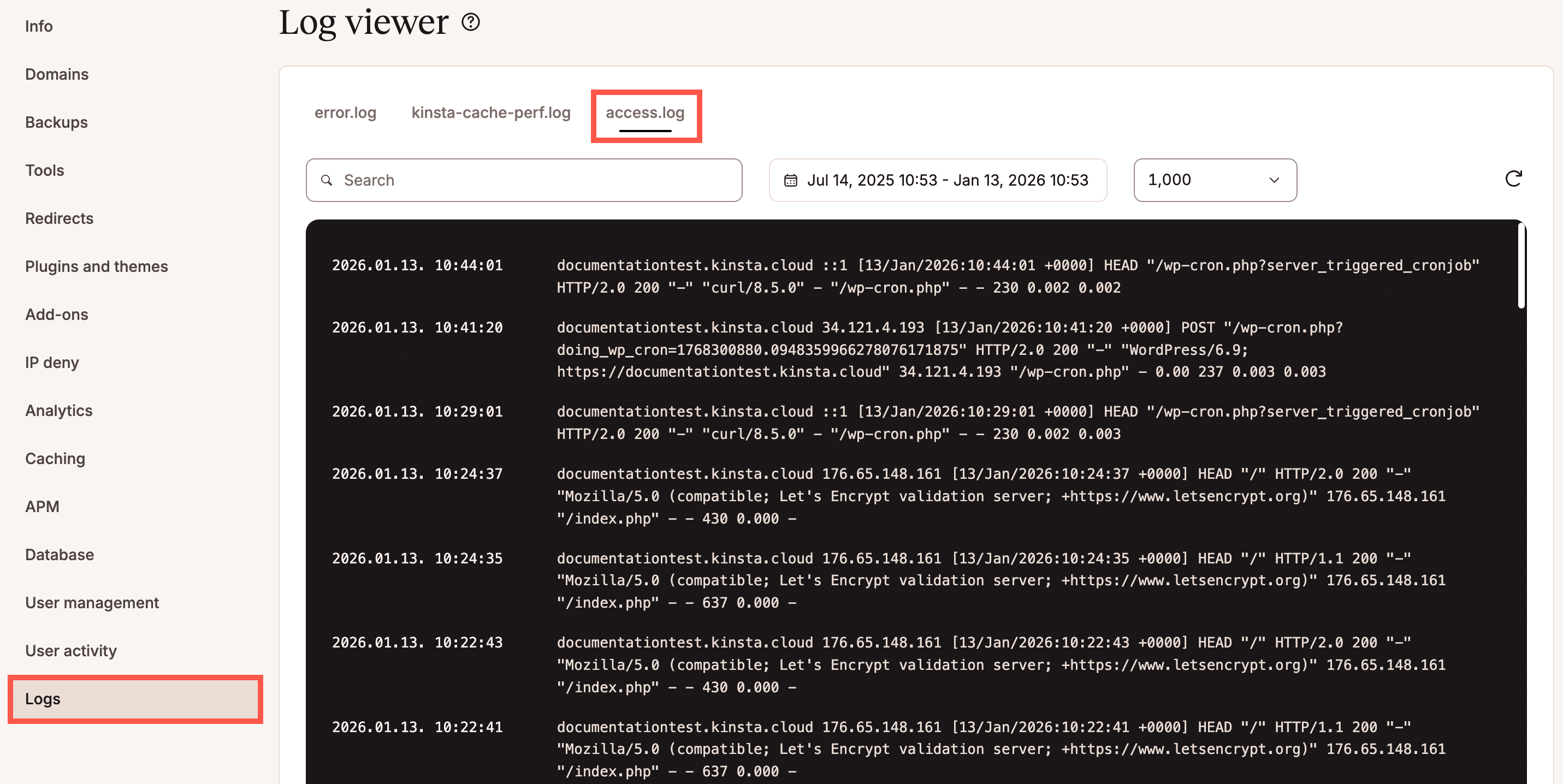

While the APM tool tracks performance behind the scenes, navigate to Sites > sitename > Logs and select the access.log tab. You can leave the default settings.
Step 4: Create a new post and generate a new featured image using AI

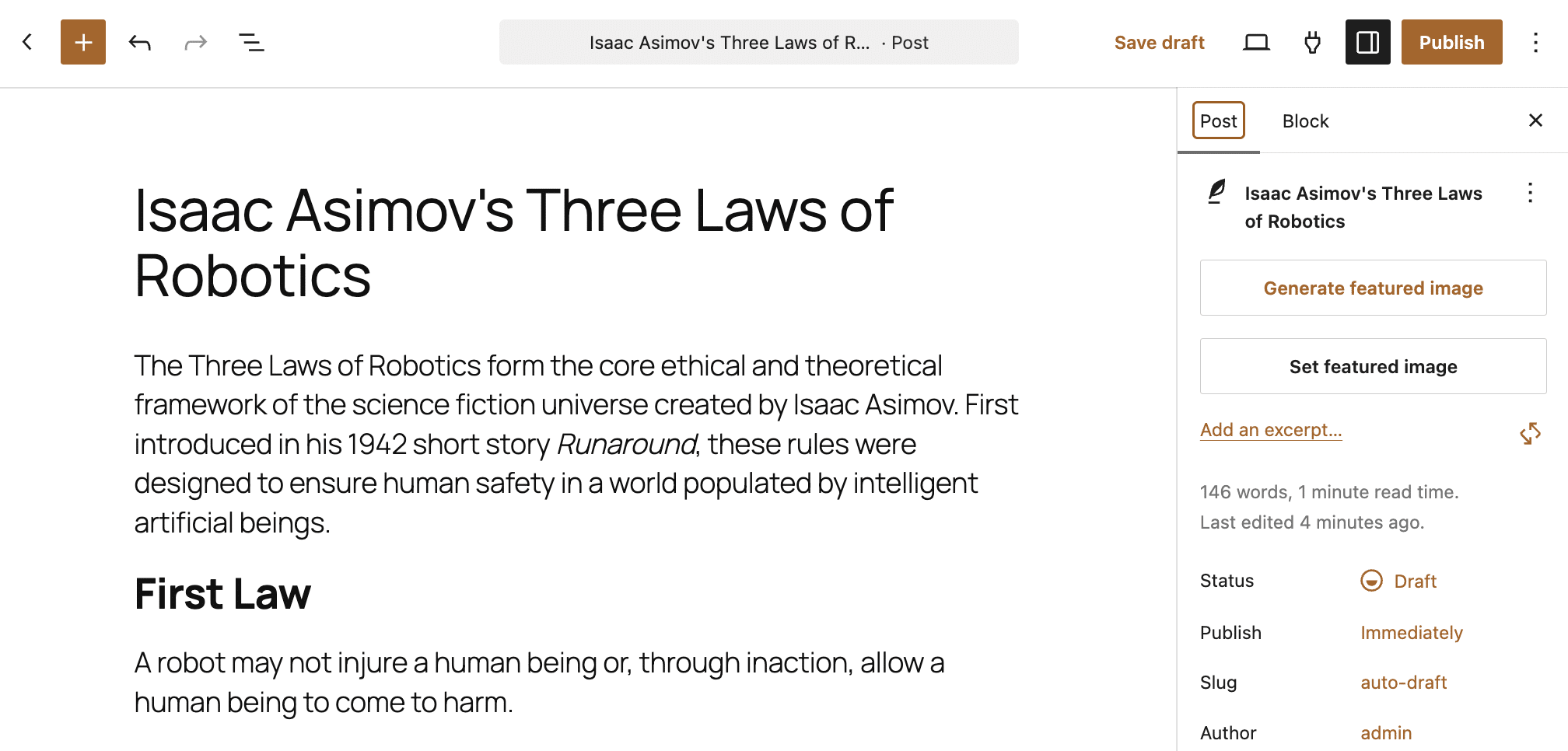

Now, back in your WordPress admin dashboard, create a new post, enter a title and some content, and then click the Generate featured image button on the right.

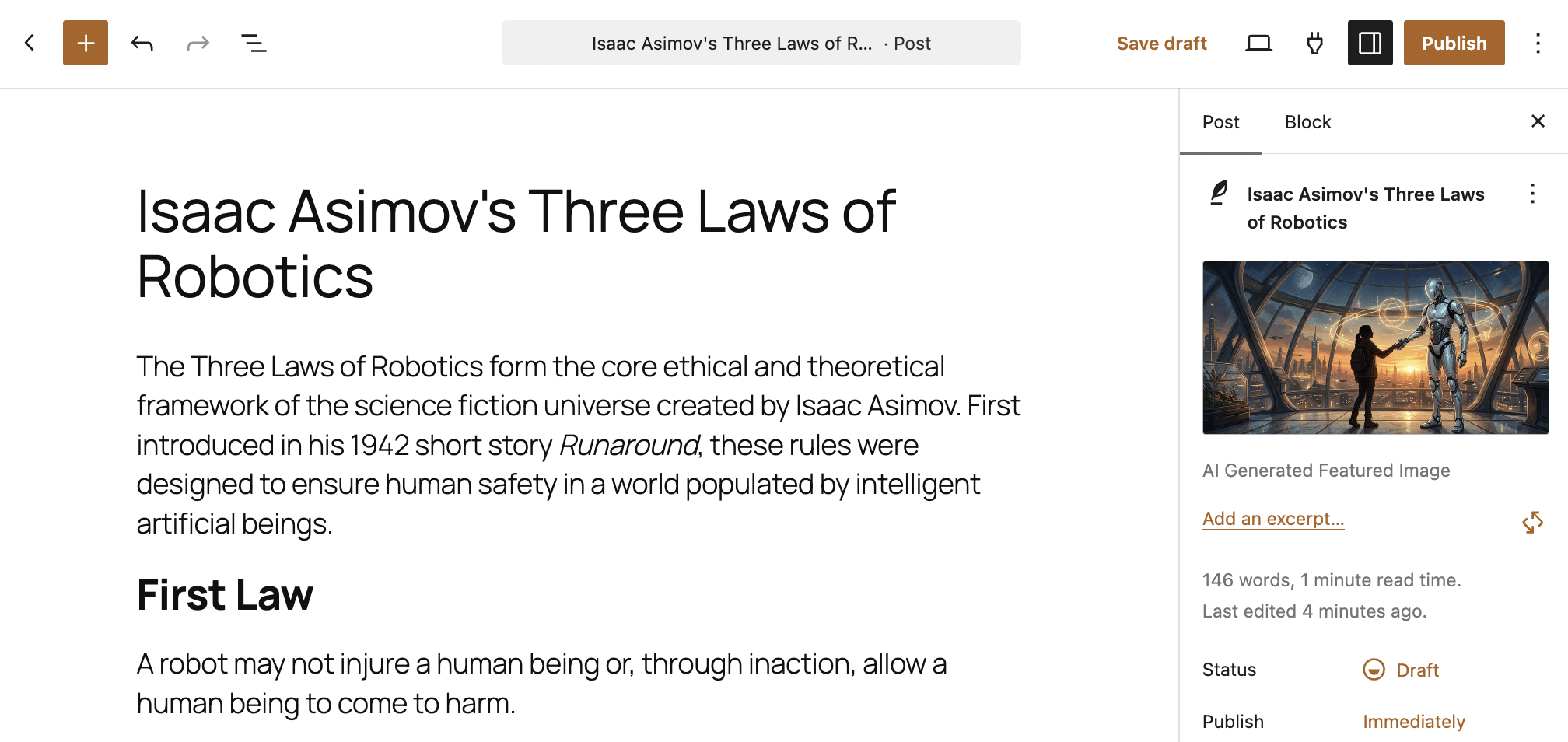

After a few moments, an AI-generated featured image shows up in the post settings sidebar.
The operation we want to monitor is now complete. We can move on to breaking down the data.
Measuring the resource consumption of AI image generation
Now let’s measure the impact of an image generation request from the WordPress Abilities API. The results of this test are not fixed, as they largely depend on the provider’s API processing and response times and the specific operations the plugin performs when sending the request.
Our goal here is to provide a framework and methodology that you can easily replicate in your own staging environments to measure AI operation resource consumption and execution times.
The analysis we propose looks at both sides of the coin. On the server side, we’ll analyze transactions using Kinsta APM and monitor HTTP requests through the MyKinsta Log viewer. On the client side, we’ll monitor what happens under the hood using browser developer tools.
Let’s get started!
Kinsta APM breakdown
Once you have the AI-generated featured image for your post, wait a few minutes, then go back to the Kinsta APM page in MyKinsta and start exploring each tab.
The Transactions tab displays an Overall transaction time chart and a Slowest transactions table, where a transaction represents a backend activity that occurs to serve a request to your WordPress site (see docs).

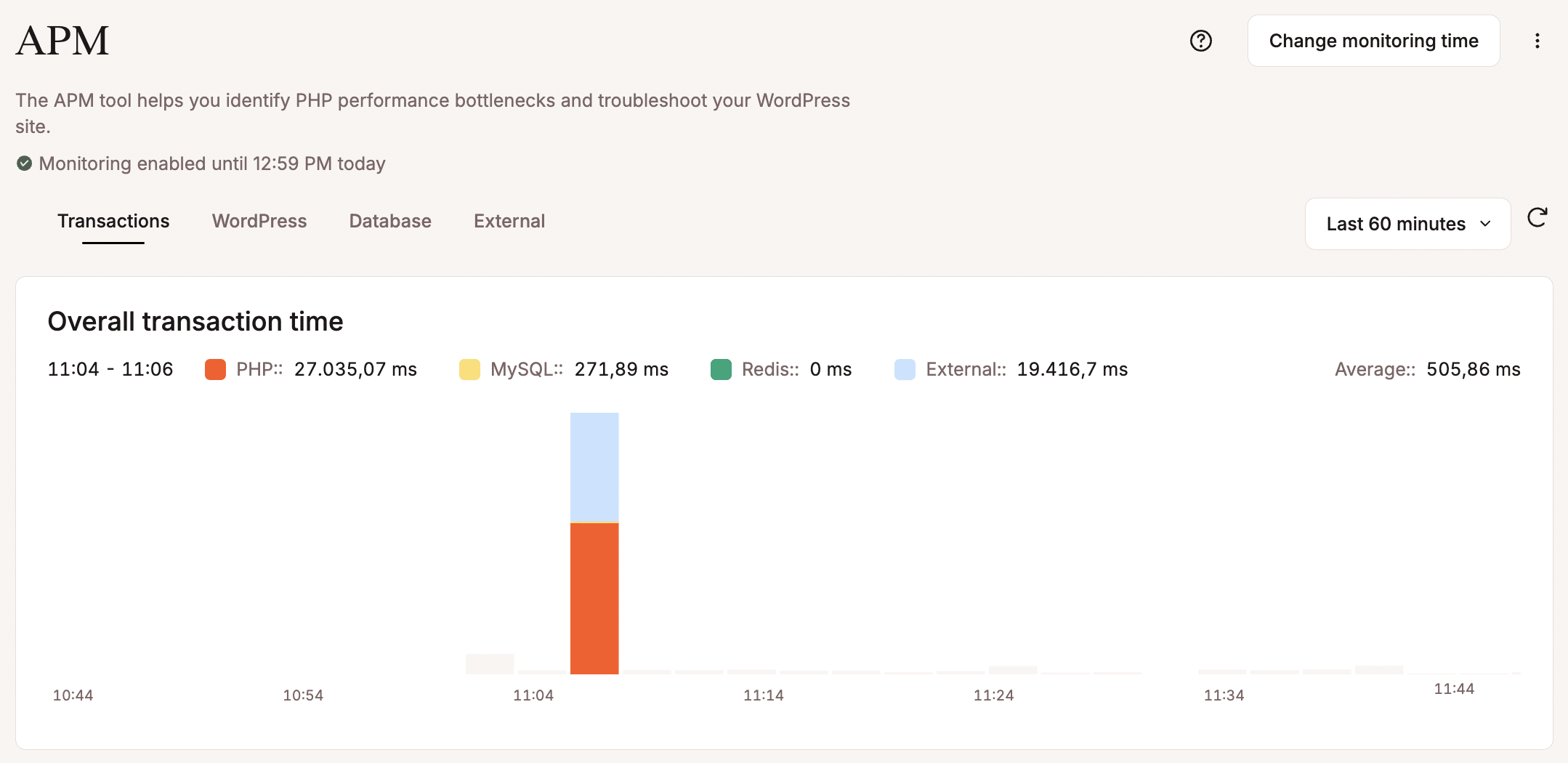

The image below shows overall transaction time during a two-minute window in which PHP execution took about 27 seconds, MySQL took 271 ms, and external transactions accounted for over 19 seconds.

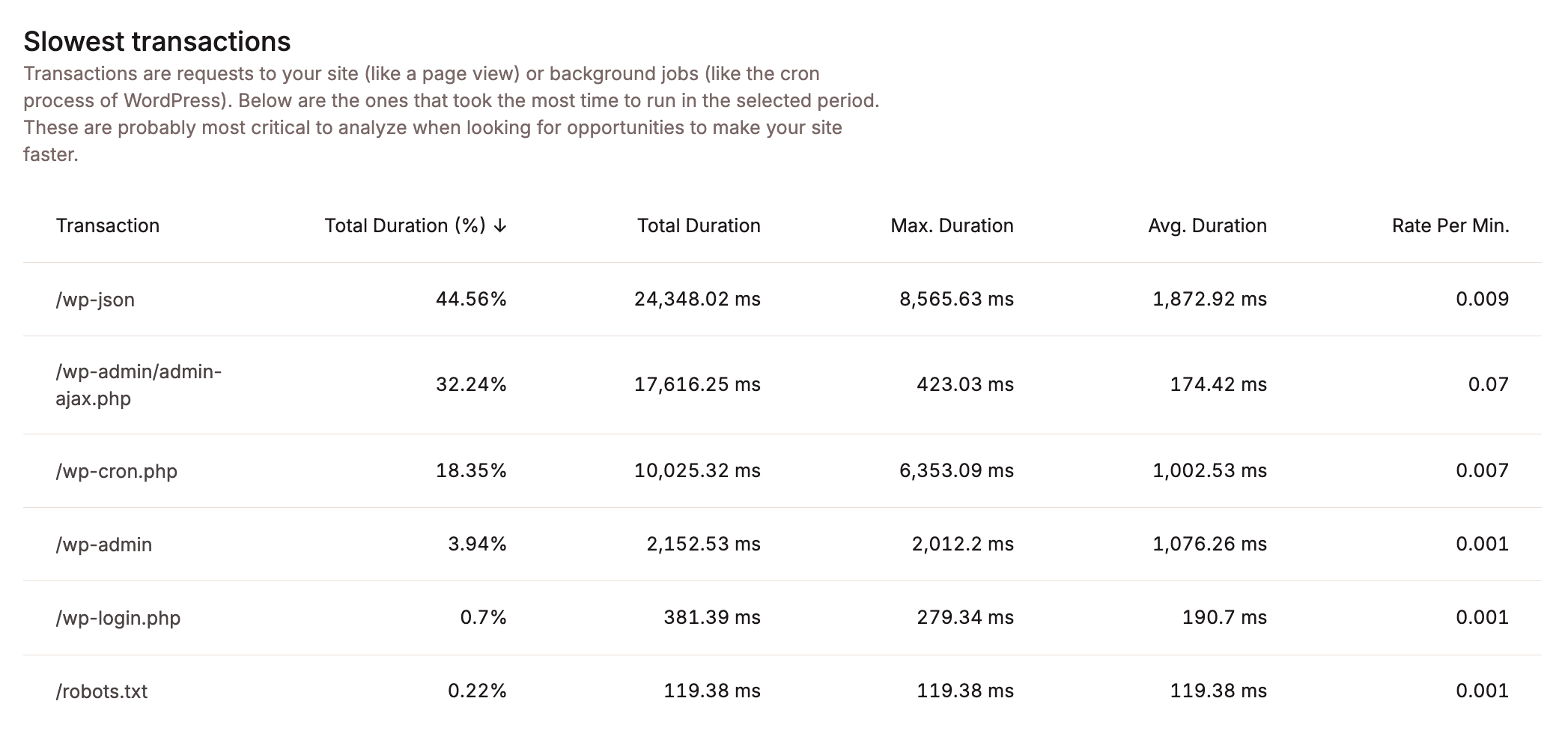

The table below lists the Slowest transactions. As you can see, requests targeting the /wp-json endpoint consumed the most transaction time.

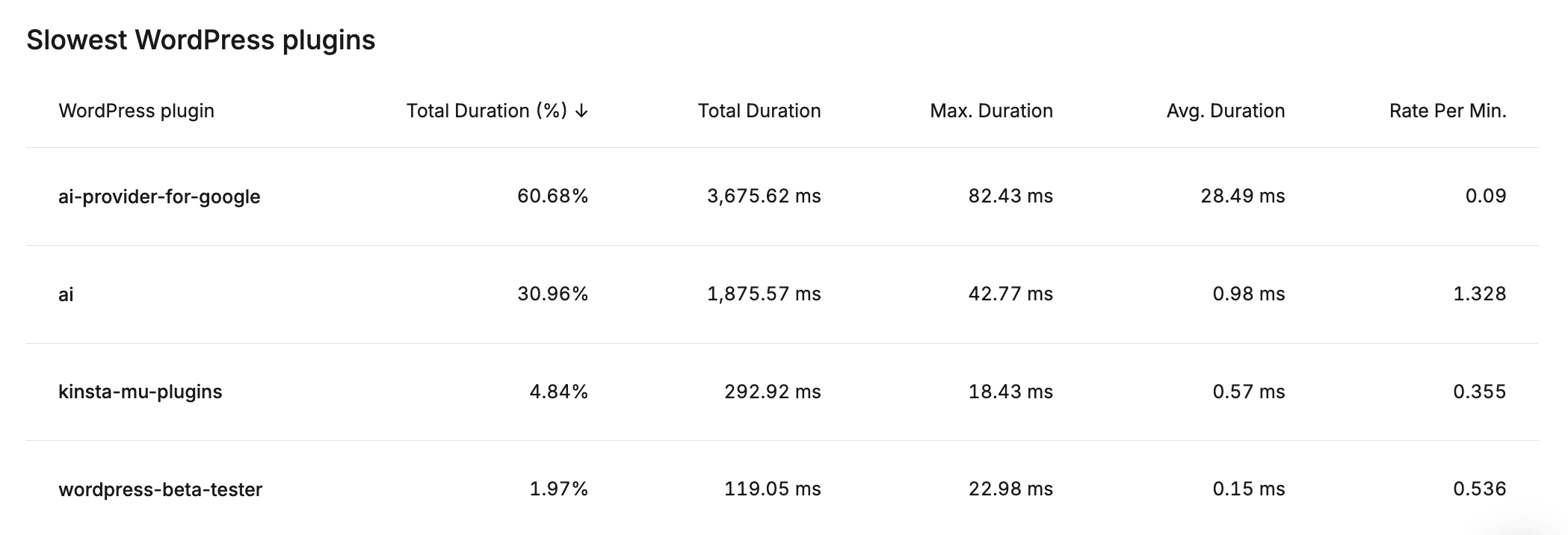

The WordPress tab provides the Slowest WordPress plugins and Slowest WordPress hooks tables. As expected, the slowest plugins were ai-provider-for-google and ai, which together accounted for nearly 90% of the total duration.

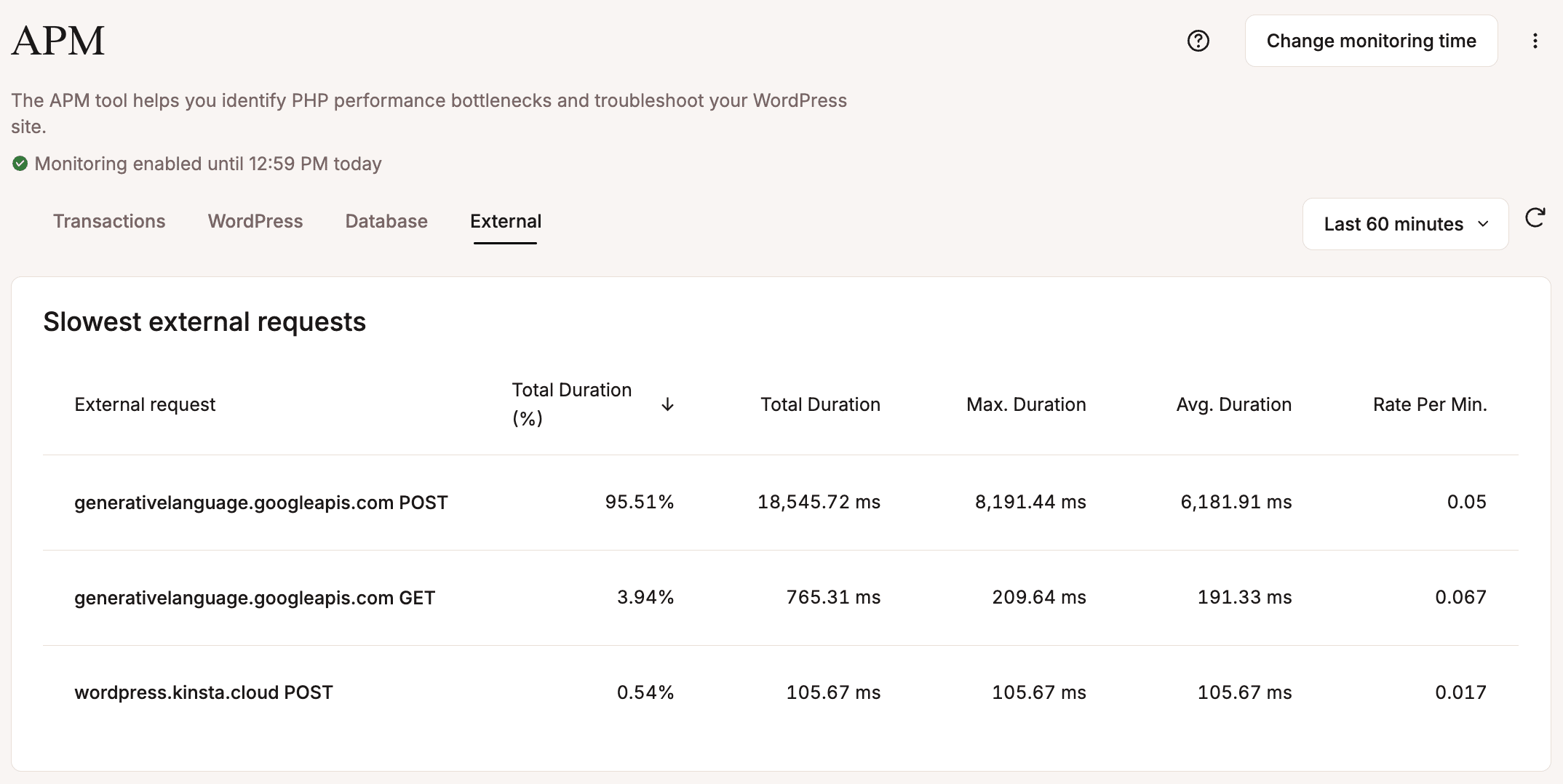

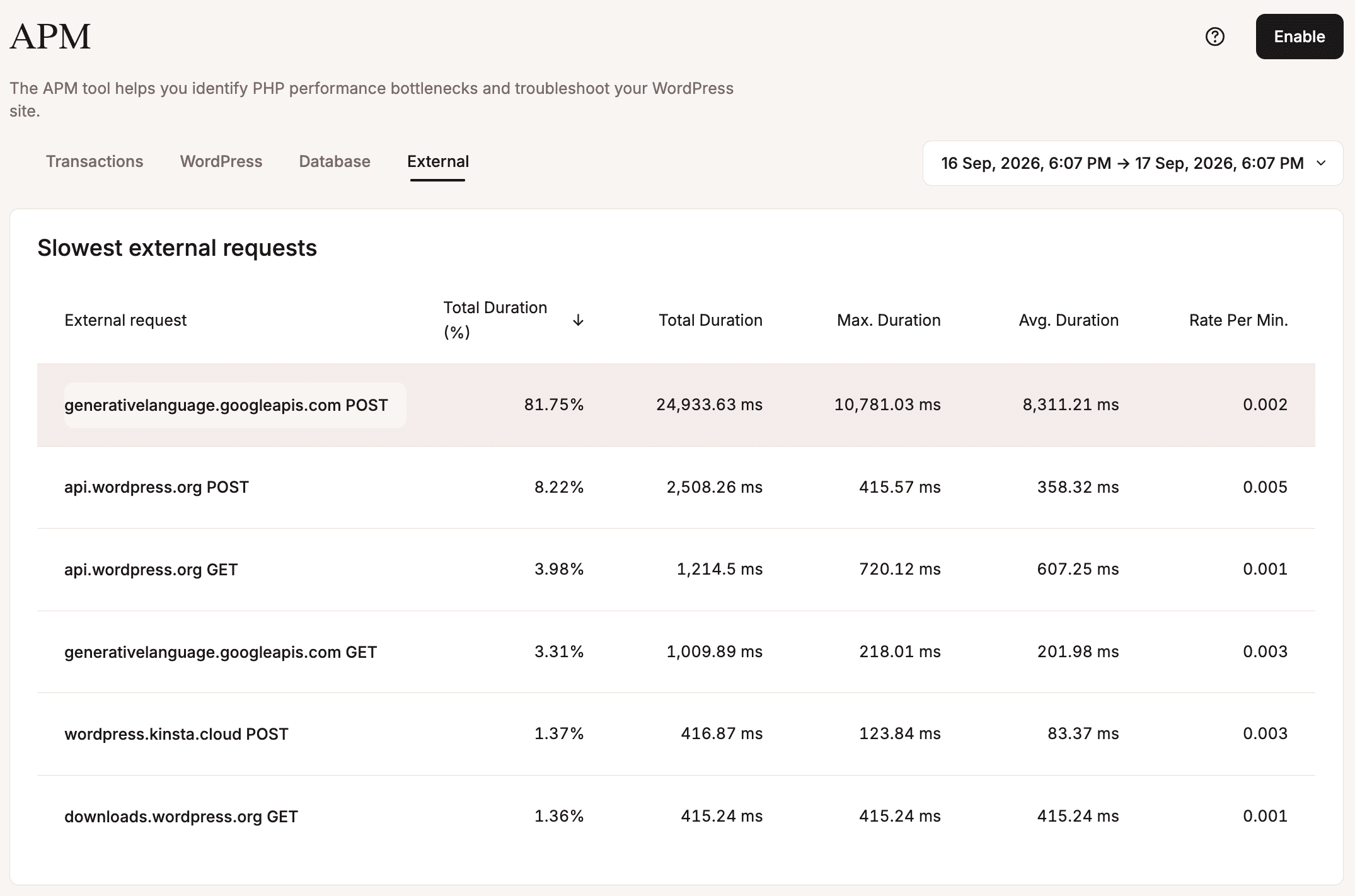

The External tab displays the Slowest external requests, sorted by Total duration.
Let’s break down this data:
- Total Duration (%): This is the percentage of time consumed by all requests to a transaction endpoint within the selected time frame. Note that this value is the sum of the duration of all requests to an endpoint, not of an individual transaction sample. In our example, POST requests to the
generativelanguage.googleapis.comendpoint accounted for 95.51% of all external transactions, with GET requests to the same endpoint taking up 3.94%. - Total Duration: This is the absolute amount of time a transaction endpoint consumes within the selected time frame. Again, this value represents the sum of the duration of all requests to a particular endpoint. In our example,
generativelanguage.googleapis.comPOST requests had a cumulative duration of over 18 seconds. - Max Duration: The slowest transaction sample duration from the selected time frame.
- Avg. Duration: The average of all transaction sample durations from the selected time frame.
- Rate Per Min: The average number of times a transaction executed per minute.

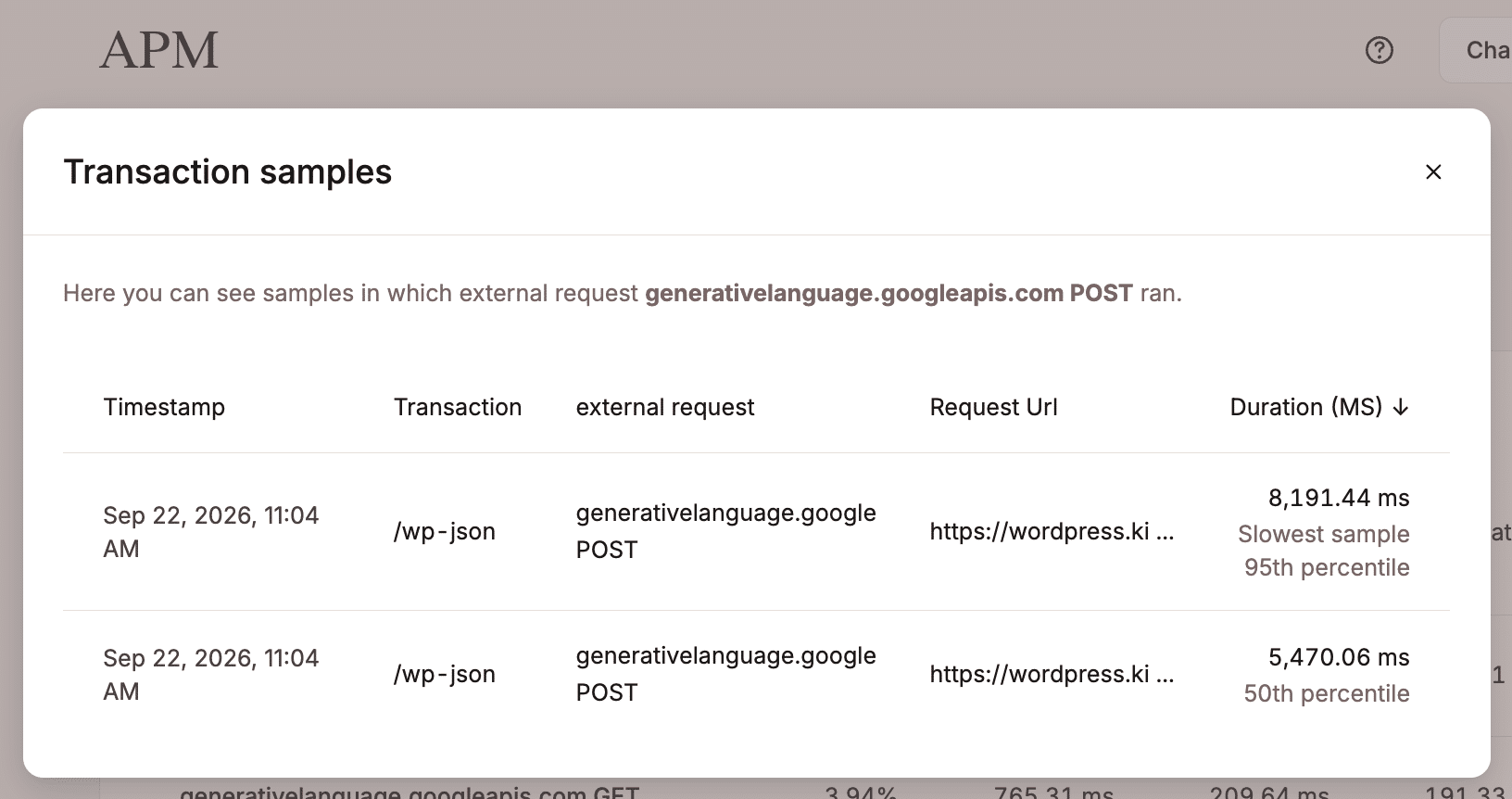

When you click on a specific request, a Transaction samples modal shows up and displays the samples where the selected POST request ran.

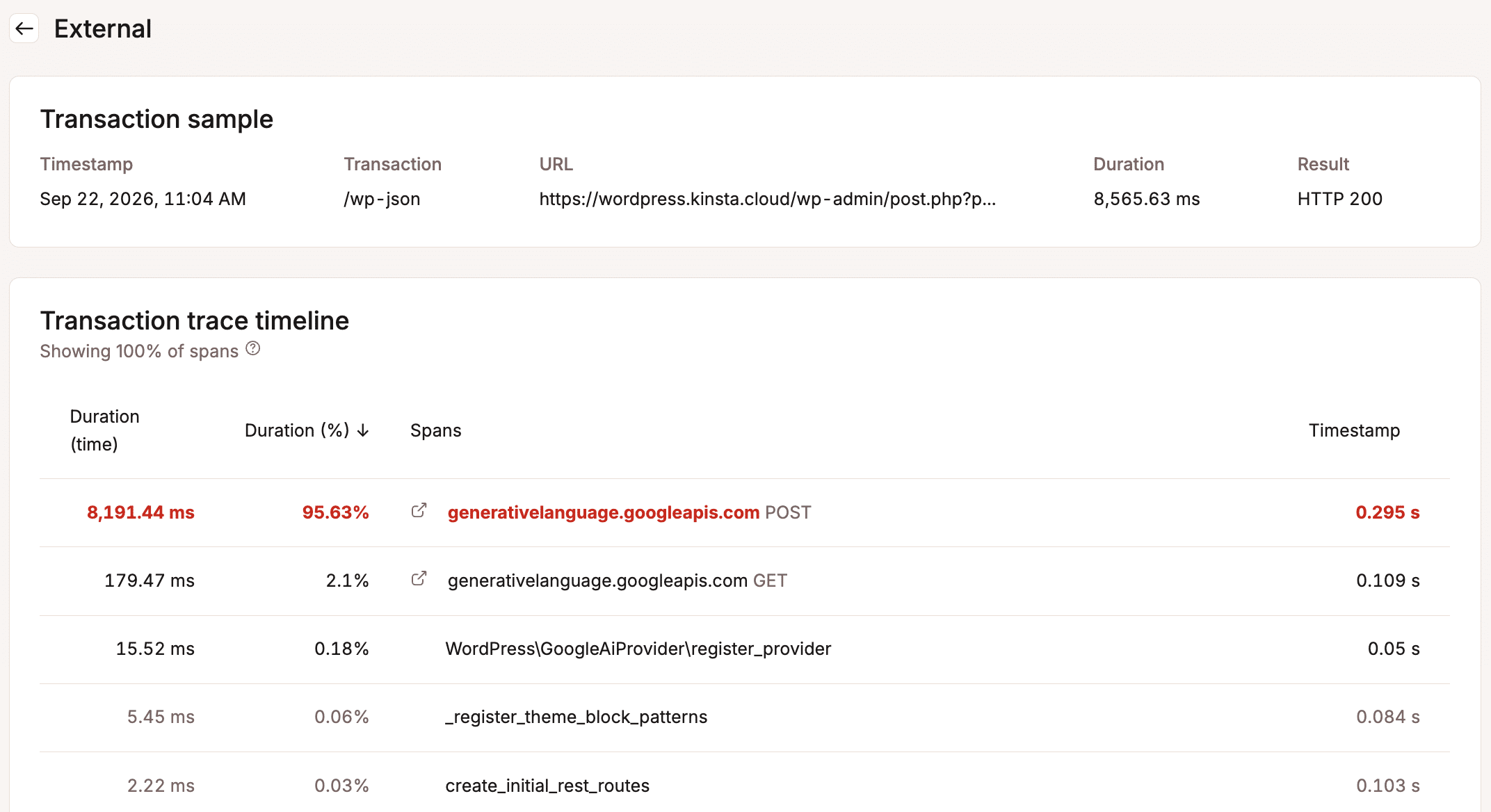

Click on the slowest transaction sample to view the Transaction trace timeline table. Here, you can see a step-through presentation of spans (PHP processes, MySQL database queries, and external calls) for a specific transaction sample (see docs).

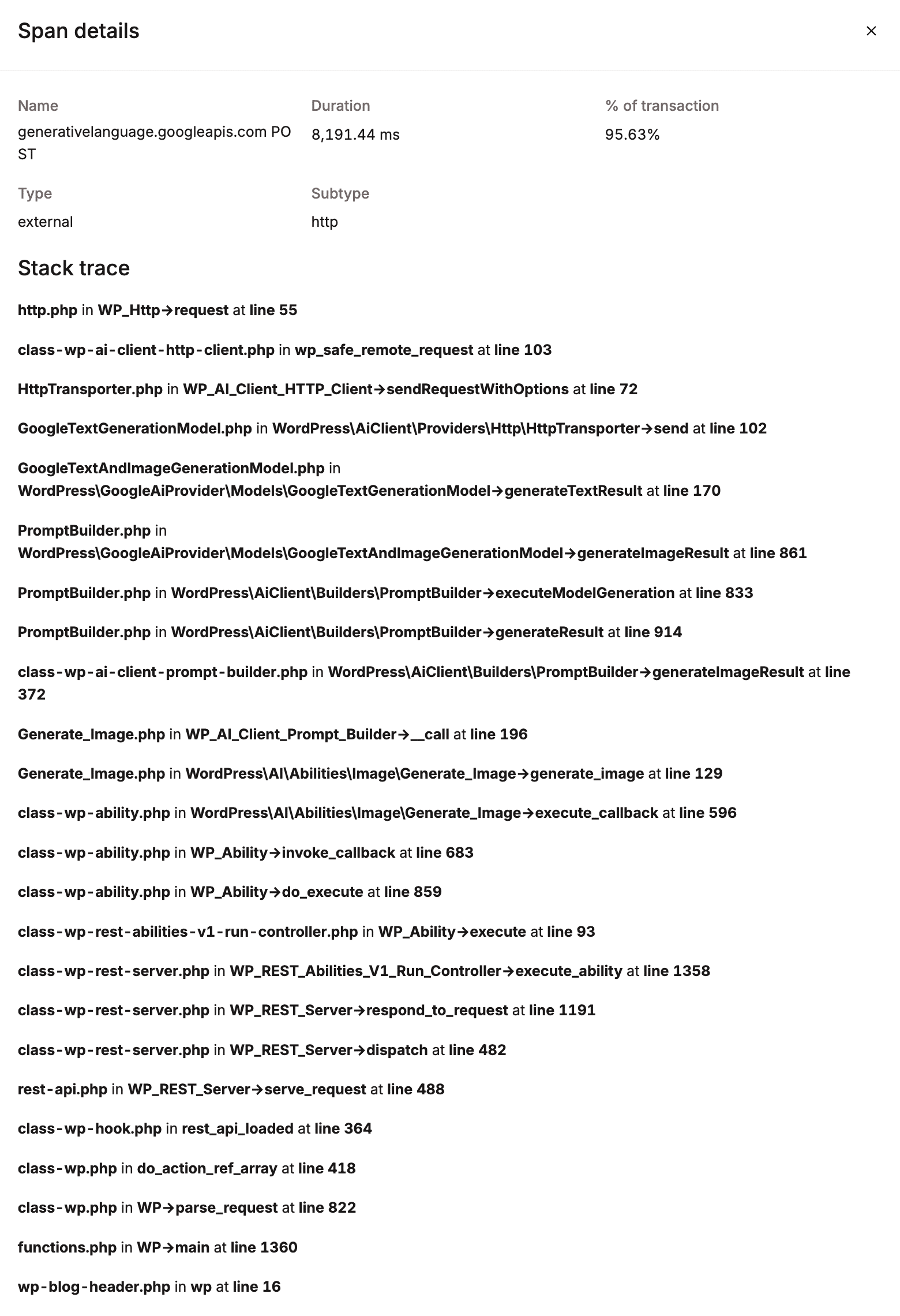

If you click on a span in the transaction trace timeline, you will see a detailed overview and a complete stack trace.
The stack trace details the exact PHP code executed, down to the specific file and line number (see docs).
The following image shows the full stack trace for the transaction that handled the image generation:
Here is a breakdown:

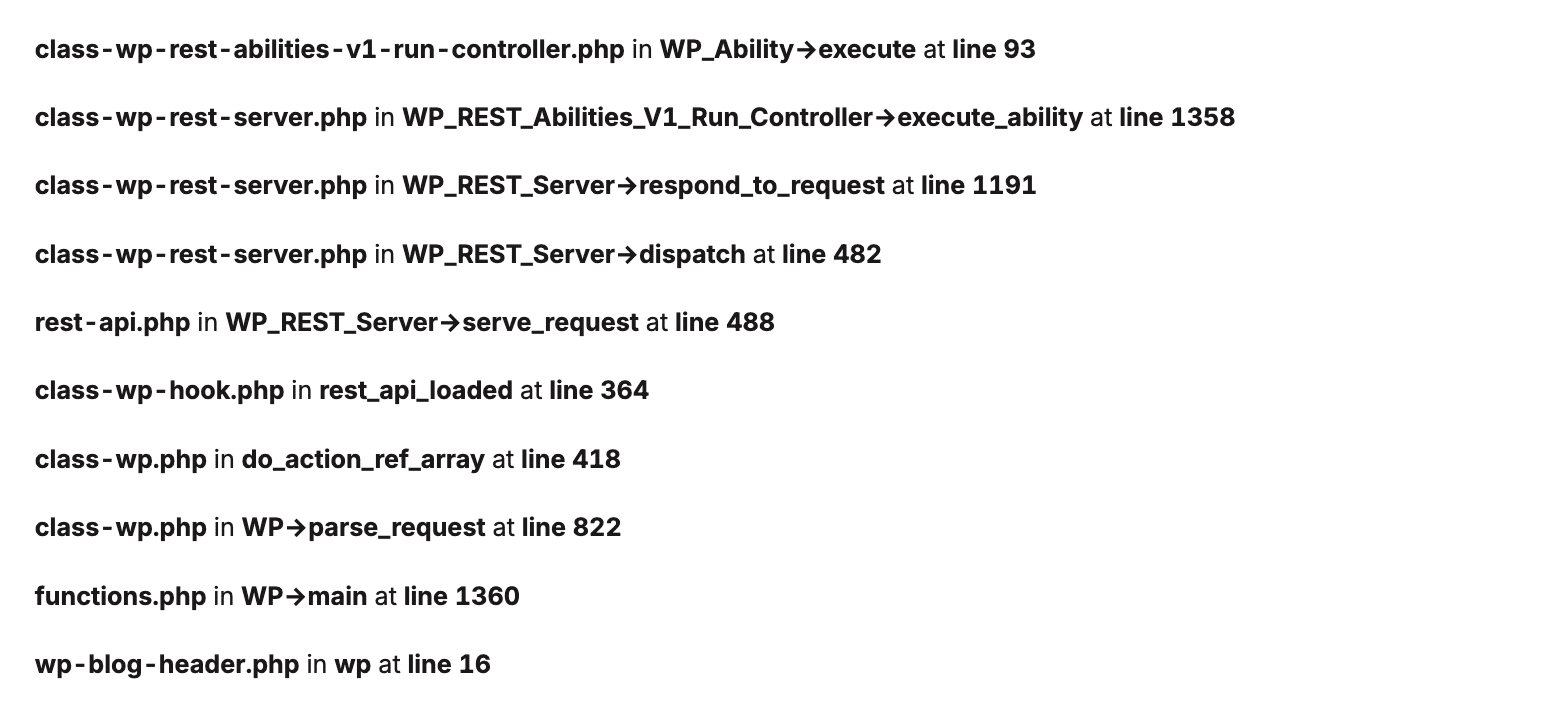

Step 1: Initializing the request
WordPress receives the HTTP request, boots the core system via wp-blog-header.php, and dispatches it through the REST API controller (WP_REST_Server) to handle the incoming request synchronously.
Step 2: Triggering the Ability
Generate_Image.php invokes the generate_image ability within the WordPress\AI\Abilities\Image namespace to generate the post image.

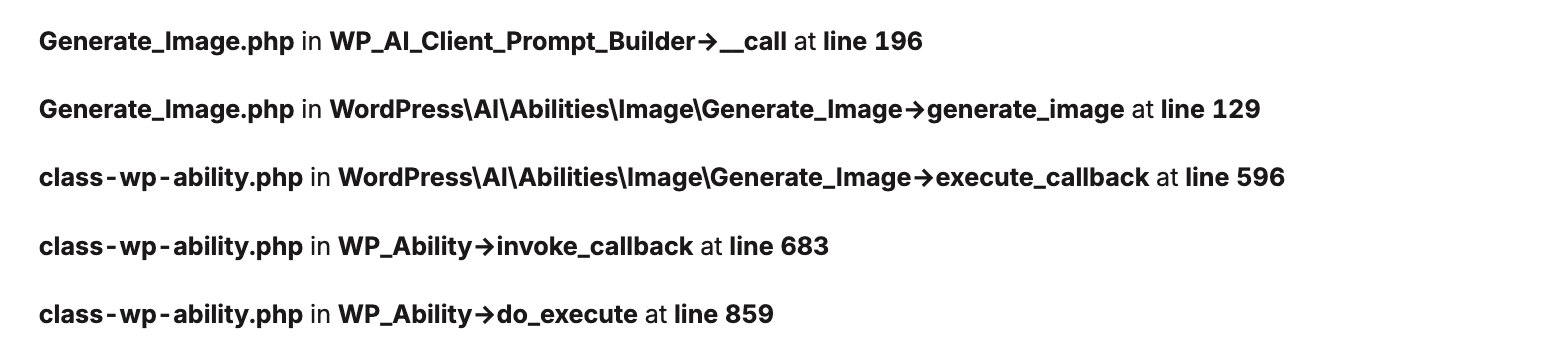

Step 3: Routing to the client
class-wp-ability.php executes the callback, delegating execution to the WP_AI_Client module.

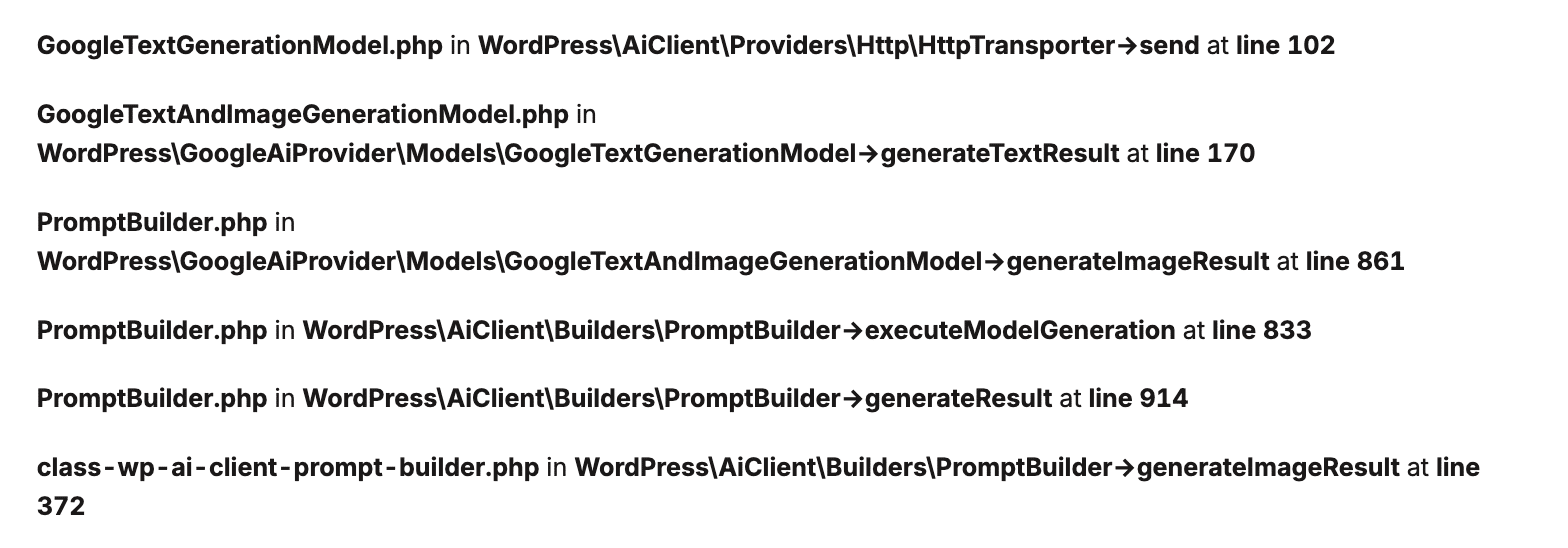

Step 4: Building the prompt
PromptBuilder.php builds the prompt, and GoogleTextGenerationModel.php converts the instructions into a request format compatible with Gemini APIs.

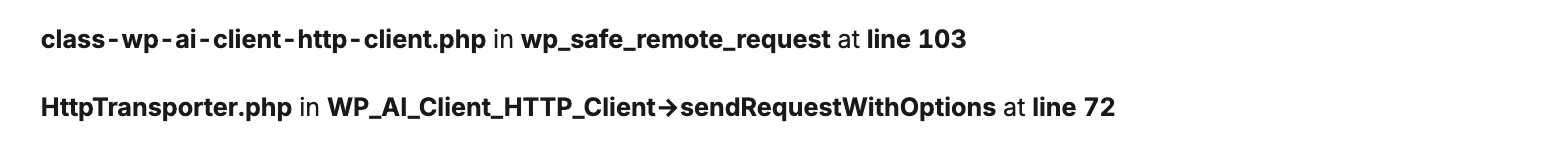

Step 5: Handing off to the HTTP transport layer
HttpTransporter.php hands off execution to the WordPress HTTP API (http.php -> WP_Http->request).
Step 6: Opening an HTTP connection
WP_Http opens a synchronous connection, holding the PHP worker until Google returns a response (see official docs).
The takeaway
The key takeaway here is that the image generation task we measured is a synchronous, blocking operation.
The call passes from WP_REST_Server to WP_Http->request within the same HTTP request lifecycle. As a result, the PHP thread waits while it generates and returns the image.
In this example, the PHP thread handling the request remained occupied for +8 seconds. Additional available threads could still serve other requests. Still, concurrent AI operations can exhaust the PHP memory pool and increase queuing, latency, and timeout risk (see how Kinsta helps you manage PHP threads and memory usage).
Server log breakdown
While a stack trace records the exact sequence of PHP functions, methods, files, and lines of code traversed by the server to process a specific request, access logs record HTTP requests at the web server level.
An access log shows who made the request (IP address and User Agent), what was requested (URL or API endpoint), the response status code, and the request’s total execution time.
In short, log analysis gives you a complete, unfiltered view of what is happening on your server during an AI operation, such as generating the featured image in our example.
To generate that single image, WordPress executed four sequential calls to the Abilities API.
Here are the logs tracking the interaction with the Google API:

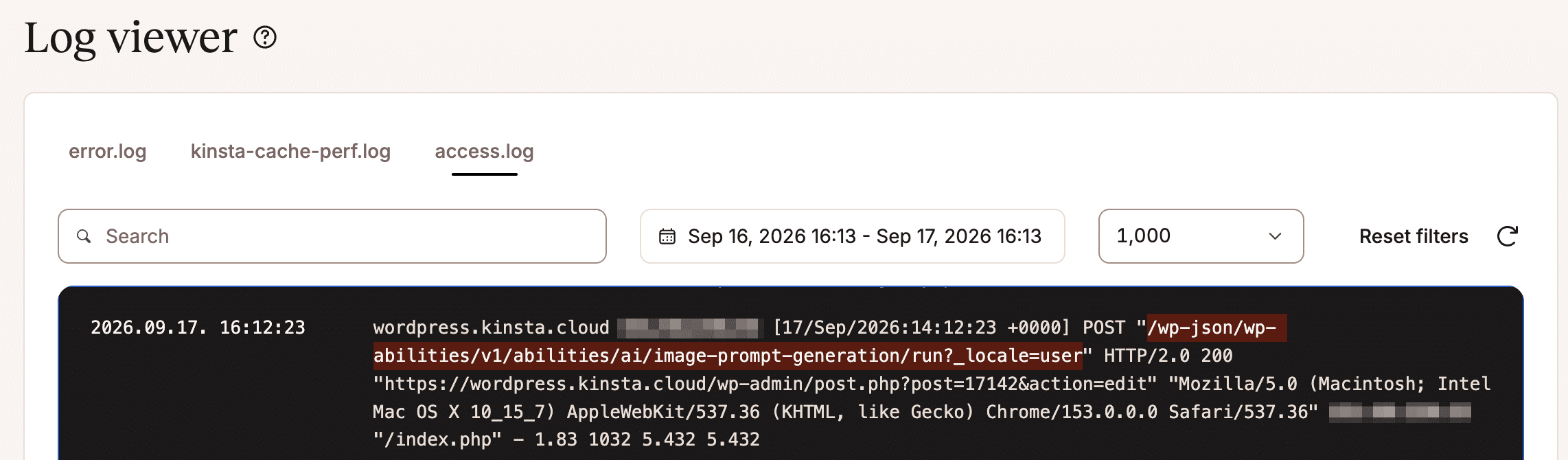

1. Prompt Generation
POST "/wp-json/wp-abilities/v1/abilities/ai/image-prompt-generation/run?_locale=user" HTTP/2.0 200
PHP execution time: 5.432s
- What this log tells you: The plugin uses the
image-prompt-generationability to send the post content to Gemini to generate a descriptive image prompt (e.g., “A person shaking hands with a sleek futuristic robot…”). - Latency: 5.43 seconds spent communicating with the Google API.

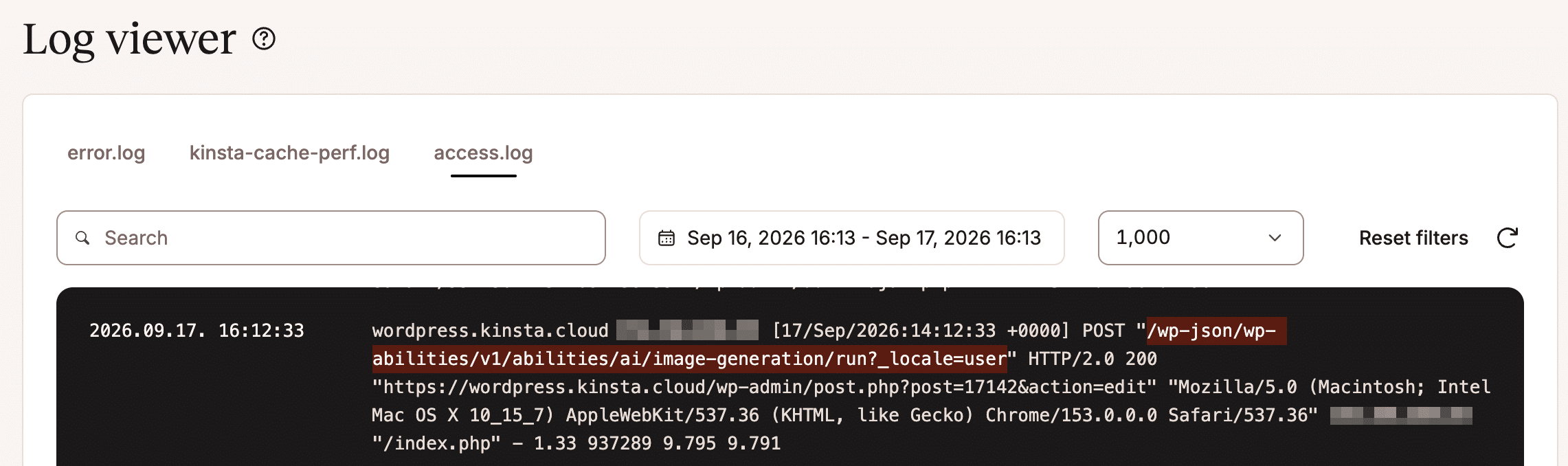

2. Image Generation
POST "/wp-json/wp-abilities/v1/abilities/ai/image-generation/run?_locale=user" HTTP/2.0 200
PHP execution time: 9.795s
- What this log tells you: This log entry corresponds directly to the transaction sample and stack trace we analyzed in the Kinsta APM section. The plugin sends the generated prompt to Google’s image generation model (Imagen) via the
image-generationability. - PHP execution time: 9.79 seconds spent waiting for the image’s binary/base64 payload.

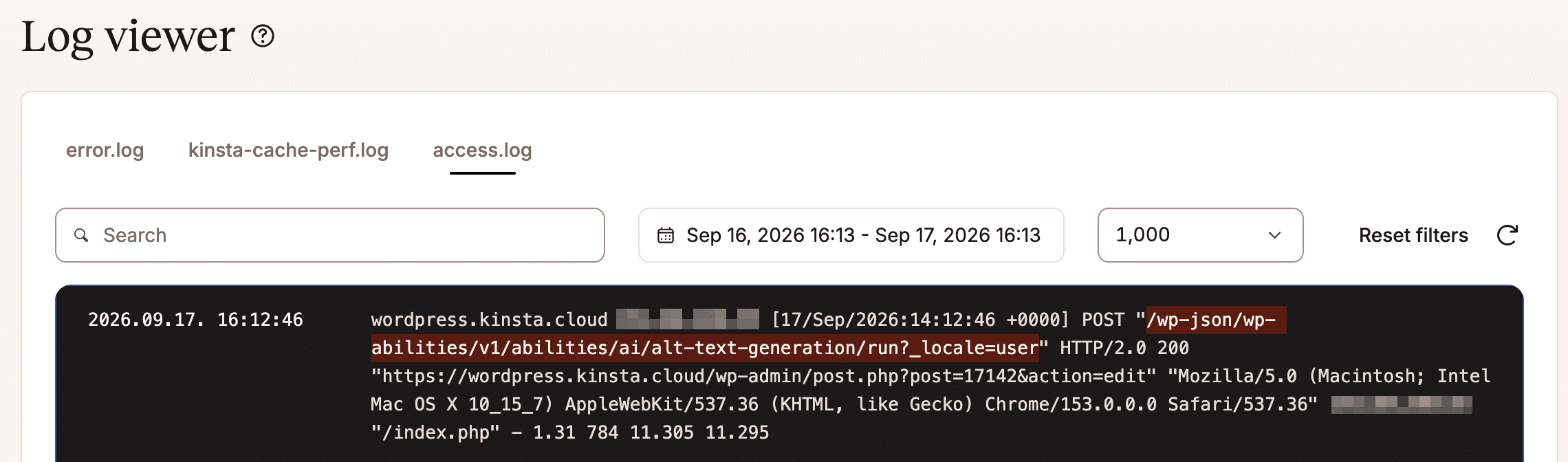

3. Alt text generation
POST "/wp-json/wp-abilities/v1/abilities/ai/alt-text-generation/run?_locale=user" HTTP/2.0 200
PHP execution time: 11.305s
- What this log tells you: Immediately after the image is created, the system triggers another automatic call to the Abilities API to generate the alt text. The ability then invokes Gemini to analyze and describe the newly generated image.
- PHP execution time: 11.30 seconds total.
The image has been generated. The next step is registering it in the WordPress Media Library.

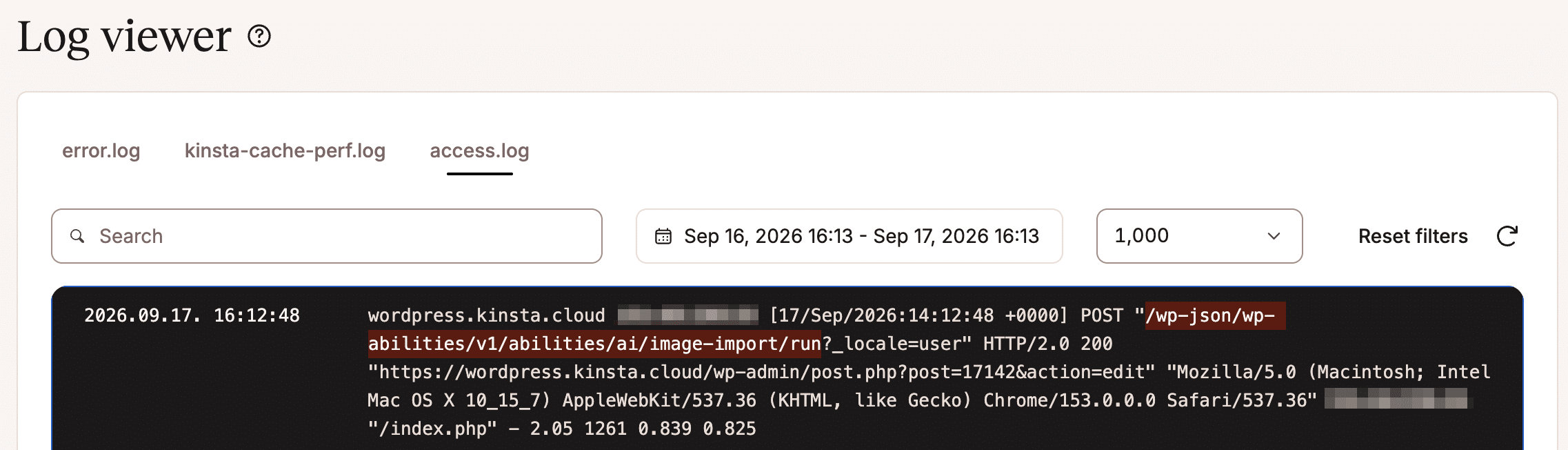

4. Media integration
POST "/wp-json/wp-abilities/v1/abilities/ai/image-import/run?_locale=user" HTTP/2.0 200
PHP execution time: 0.839
- What this log tells you: WordPress downloads the file payload from the external API via the
image-importability and registers it in the Media Library. - PHP execution time: 0.839 seconds.

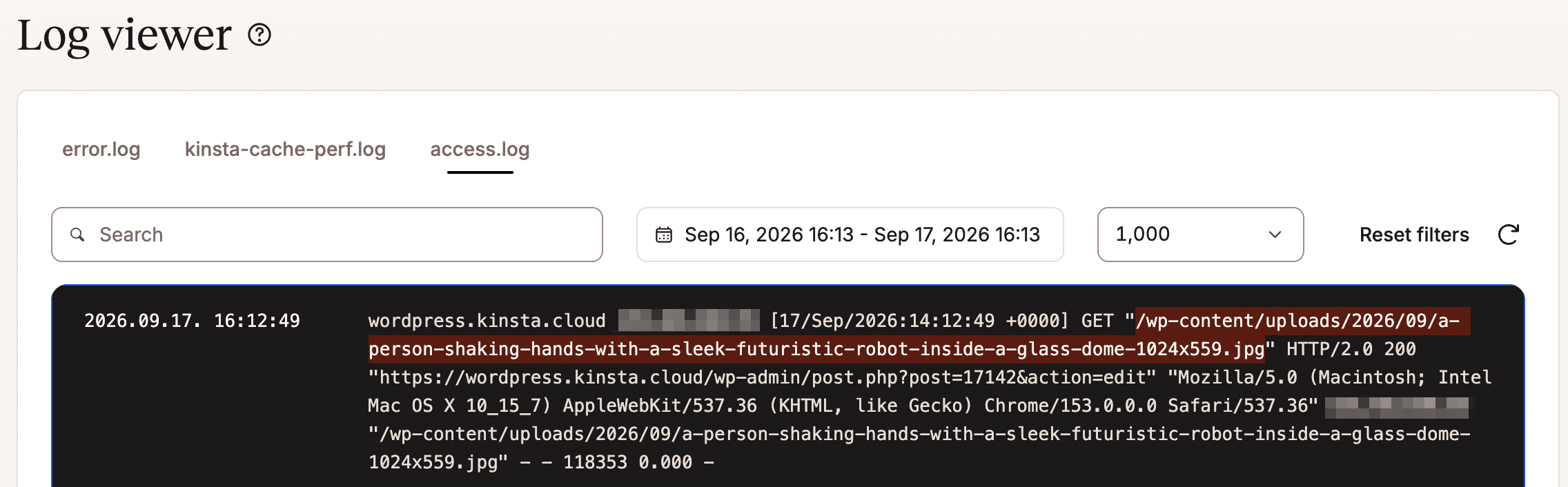

5. Download image
GET "/wp-content/uploads/2026/09/a-person-shaking-hands-with-a-sleek-futuristic-robot-inside-a-glass-dome-1024x559.jpg" HTTP/2.0 200
PHP execution time: 0.000
- What this log tells you: The block editor fetches the imported image file directly from the
uploadsdirectory to render it in the UI. This is a static asset served directly by the web server, and no PHP processing is required. - PHP execution time: 0.000 seconds.
What access logs tell you
If you sum up the execution times across the entire workflow for a single image generation, you get the overall execution time for the complete operation—including prompt generation, image generation, alt text generation, and image import into WordPress.
In our example, the logs provided the following execution times:
- image-prompt-generation: 5.43s
- image-generation: 9.79s
- alt-text-generation: 11.30s
- image-import: 0.84s
Total: ~27.36 cumulative seconds of PHP thread processing time!

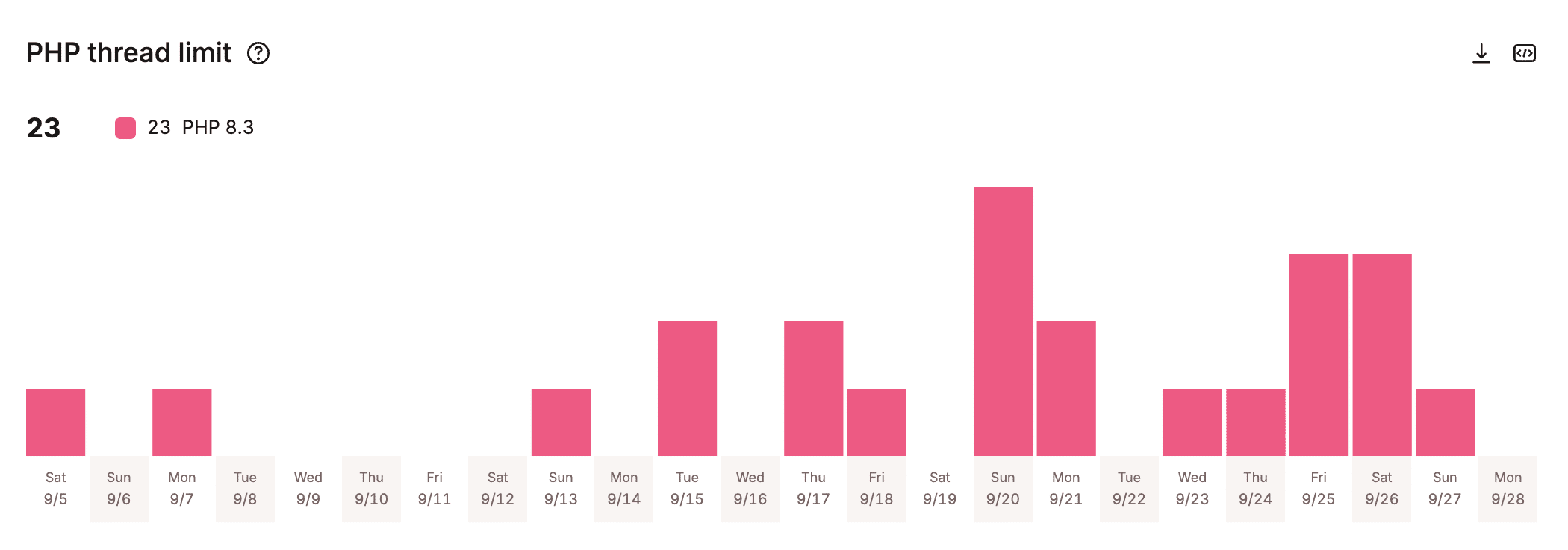

This confirms our initial assumption: on a traditional hosting setup with limited resources, if two or three AI-based tasks run simultaneously, the server will quickly experience PHP thread saturation and stop responding to other site visitors for several seconds.
If your site implements multiple AI features, your hosting infrastructure becomes even more critical. Additionally, monitoring tools like Kinsta APM and MyKinsta access logs are great tools for measuring the impact of AI workloads, pinpointing performance bottlenecks, and adopting the right optimizations.
Client-side HTTP requests breakdown
While Kinsta APM and server access logs help you understand AI’s impact on your site’s infrastructure, browser developer tools let you analyze the workflow from the client’s perspective.
To analyze network calls, you’ll follow these steps:
- Open your WordPress admin and create a new post.
- Open your preferred browser’s Developer Tools by pressing F12 (or Right-Click > Inspect / Cmd + Option + I on Mac).
- Select the Network tab and filter by Fetch/XHR to display only asynchronous/REST API calls.
- When you are ready, click on the Generate featured image button in the block editor.
Requests to the Abilities API endpoints start flowing in the Network panel. In Firefox Developer Tools, they will be flagged with a turtle icon, indicating slow requests.
Click on each of these requests, one by one, and observe the Request, Response, and Timings tabs for each request.
1. Prompt generation

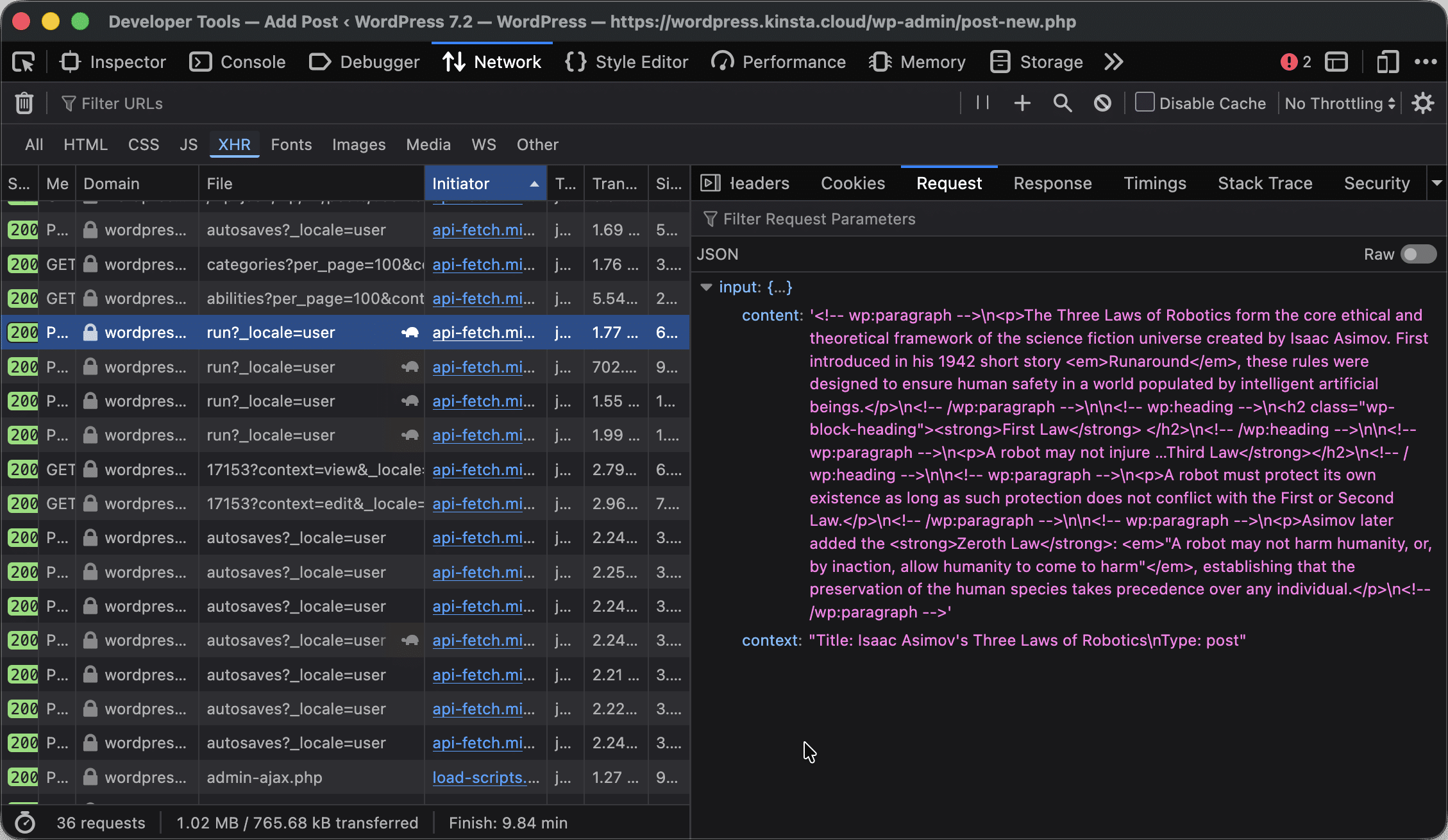

The first call to the Google AI API generates the prompt. For this operation, the request payload includes the post title and content.

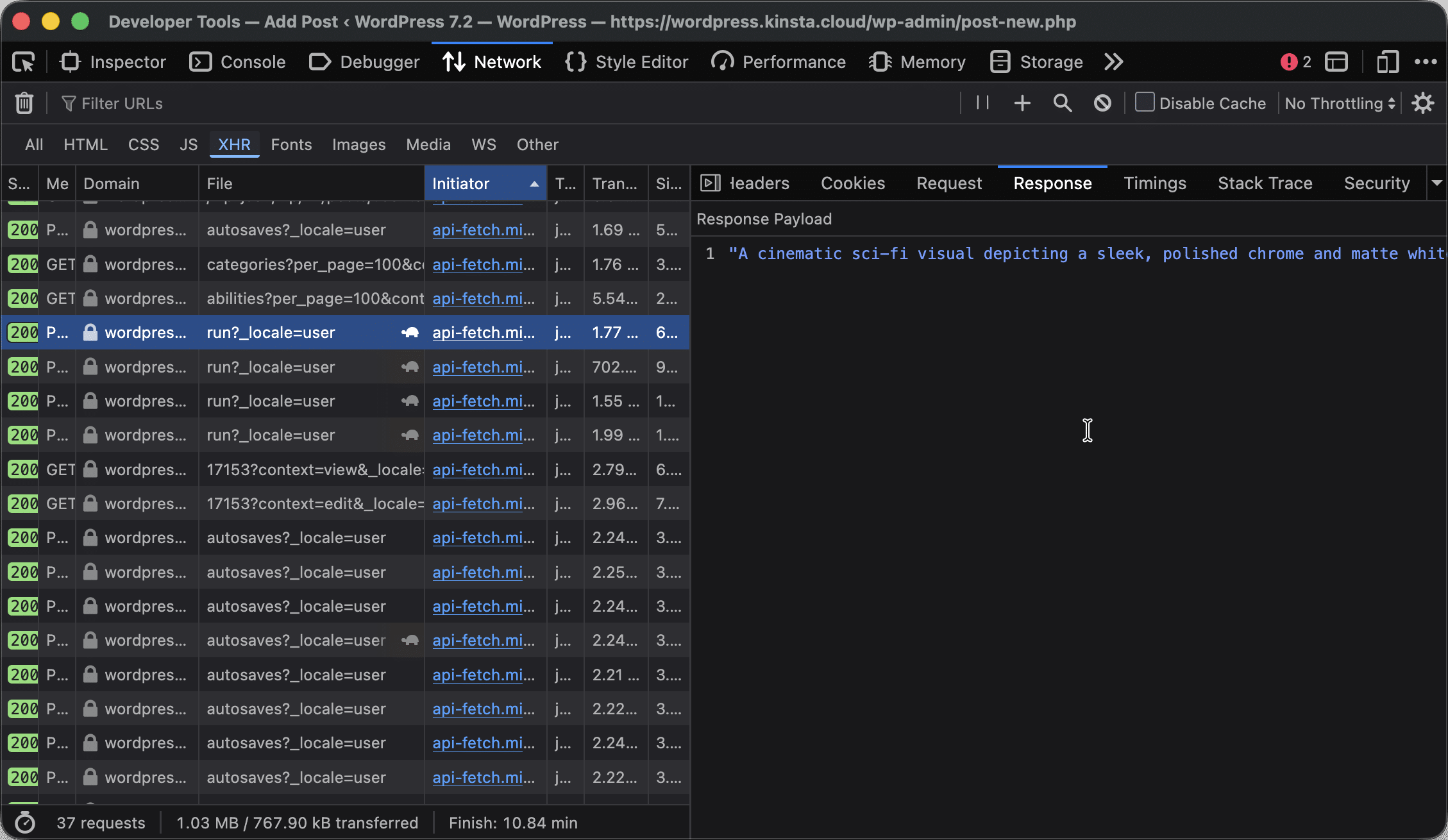

The response is the prompt sent to the Imagen model.

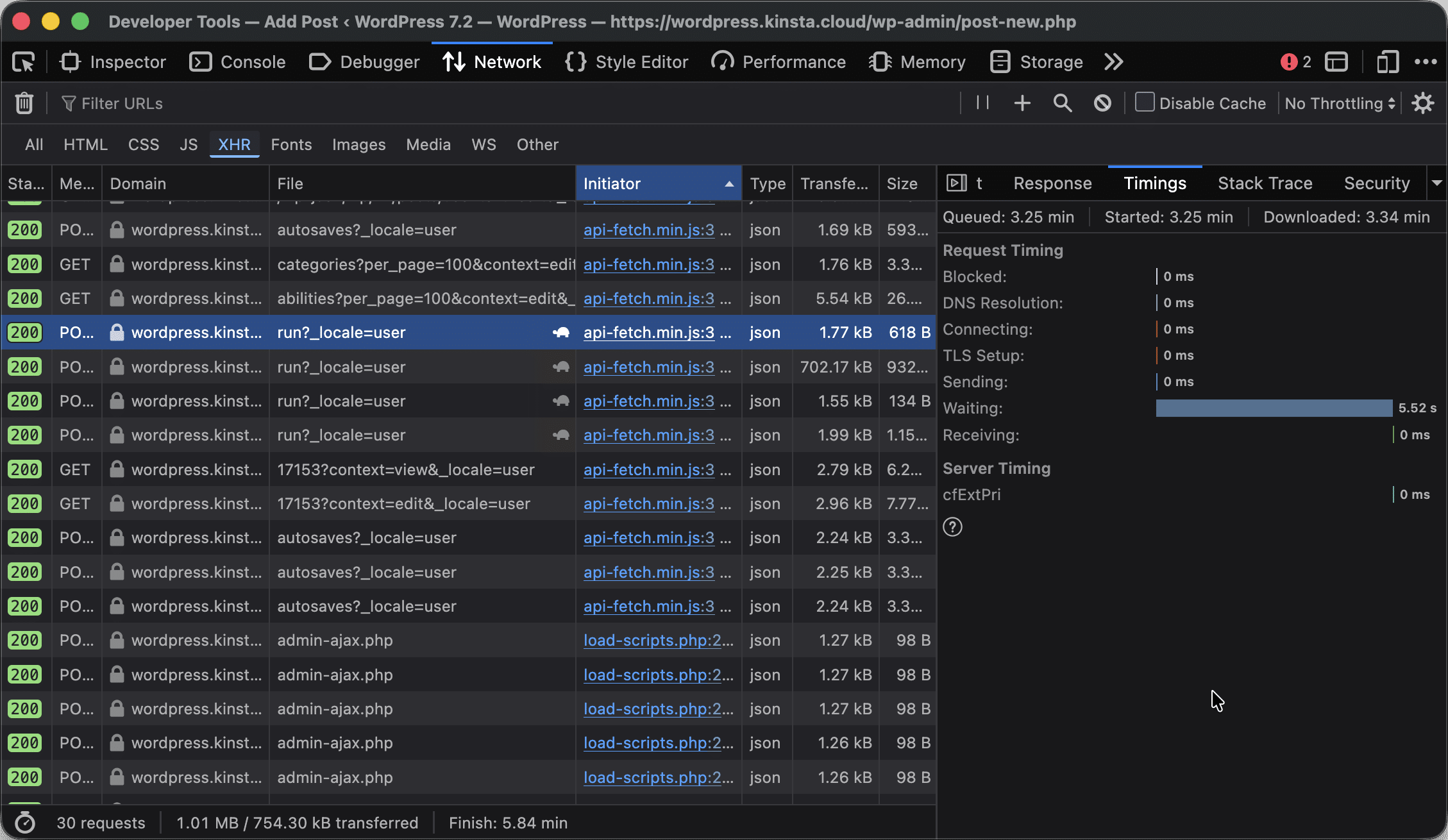

Next, switch to the Timings tab to check execution times. The prompt generation for this latest image took 5.52 seconds.
2. Image generation

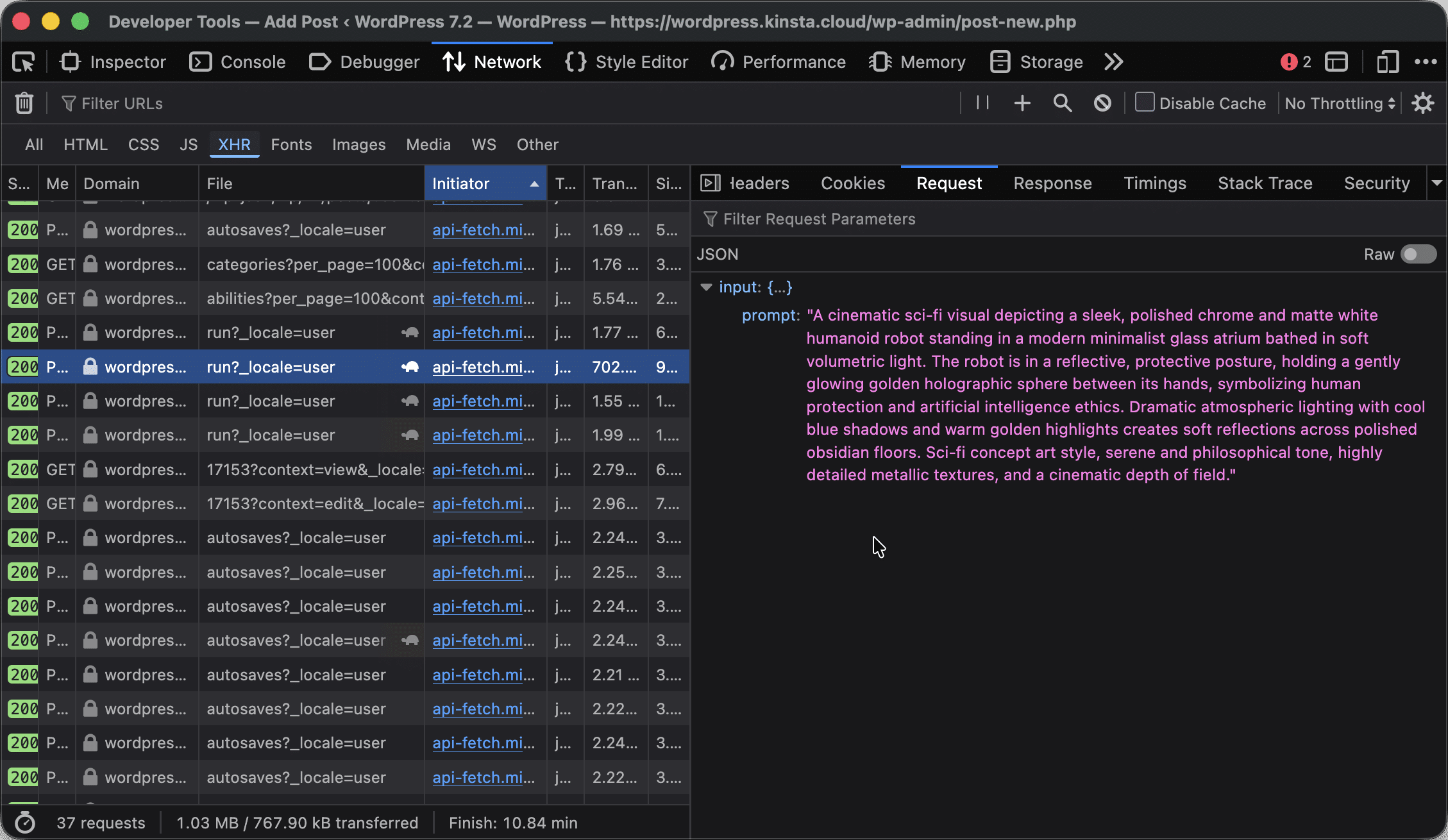

Then follows the image generation request. The request payload is the prompt received with the previous request.

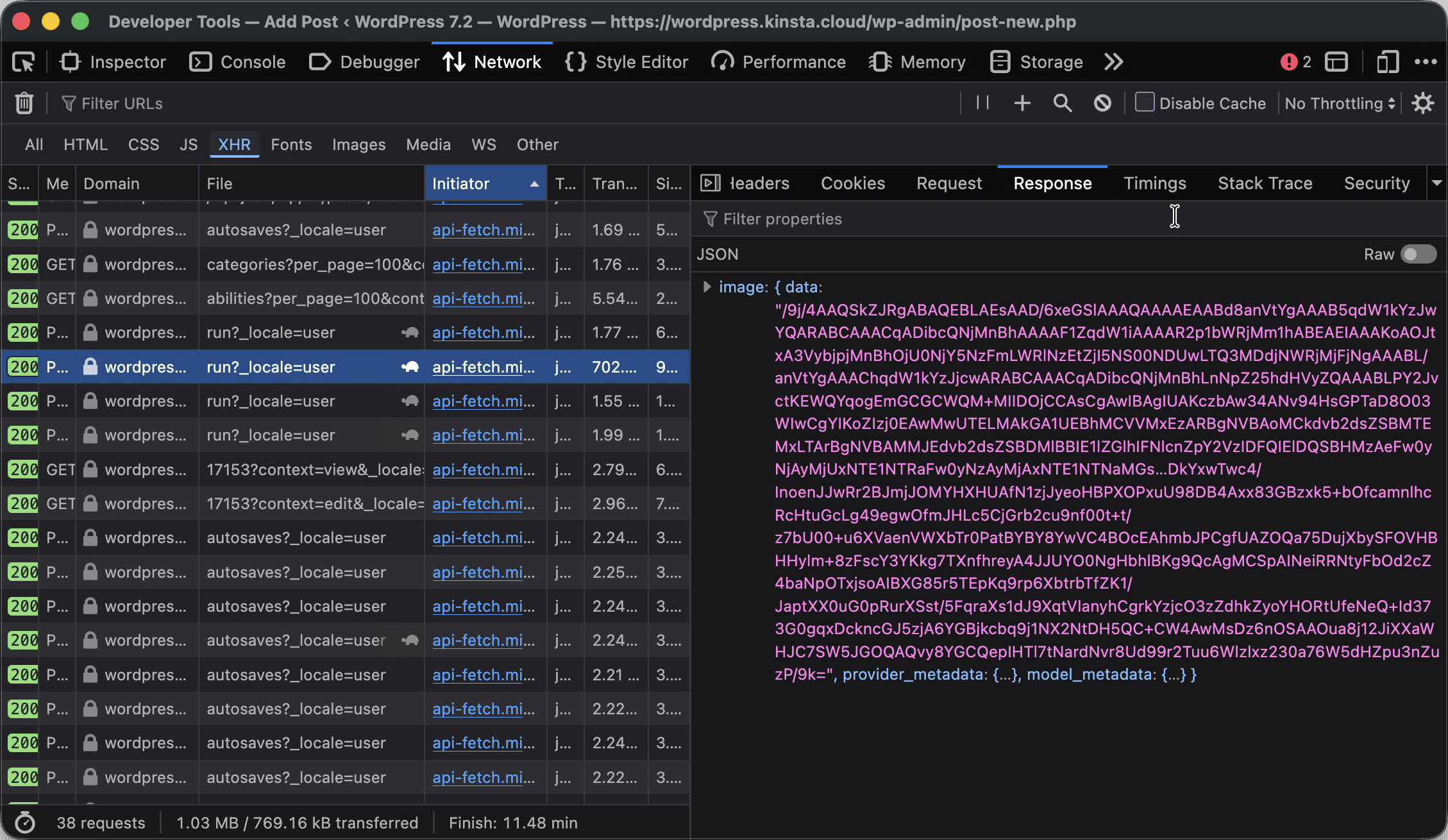

The Google API response will be the base64 payload of the image.

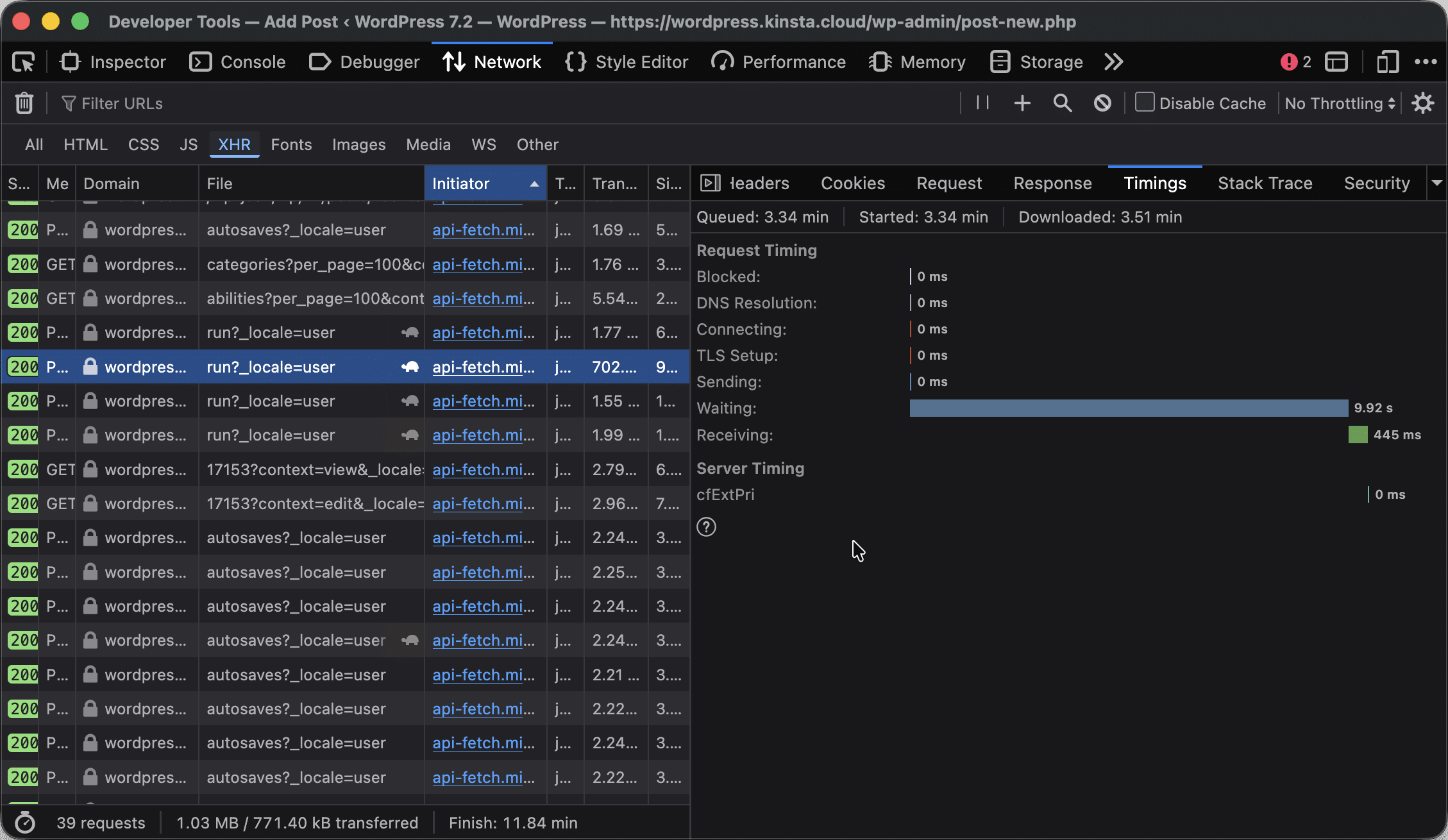

The Timings tab provides the total execution time for the image generation. The request waited 9.92 seconds.
3. Alt text generation

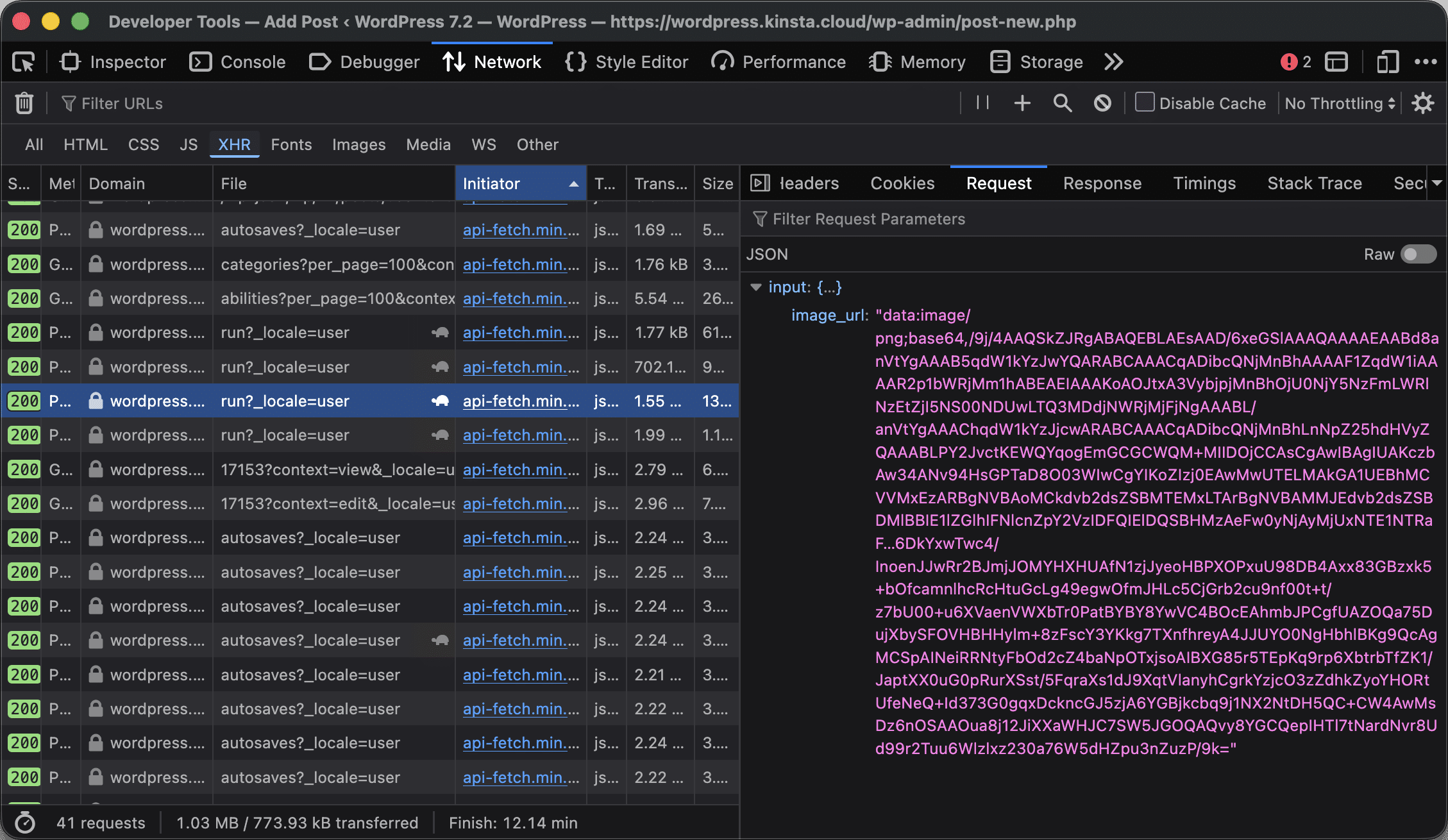

With the third call, the Abilities API requests the Google API to generate the image’s alt text. The request includes the base64 image payload.

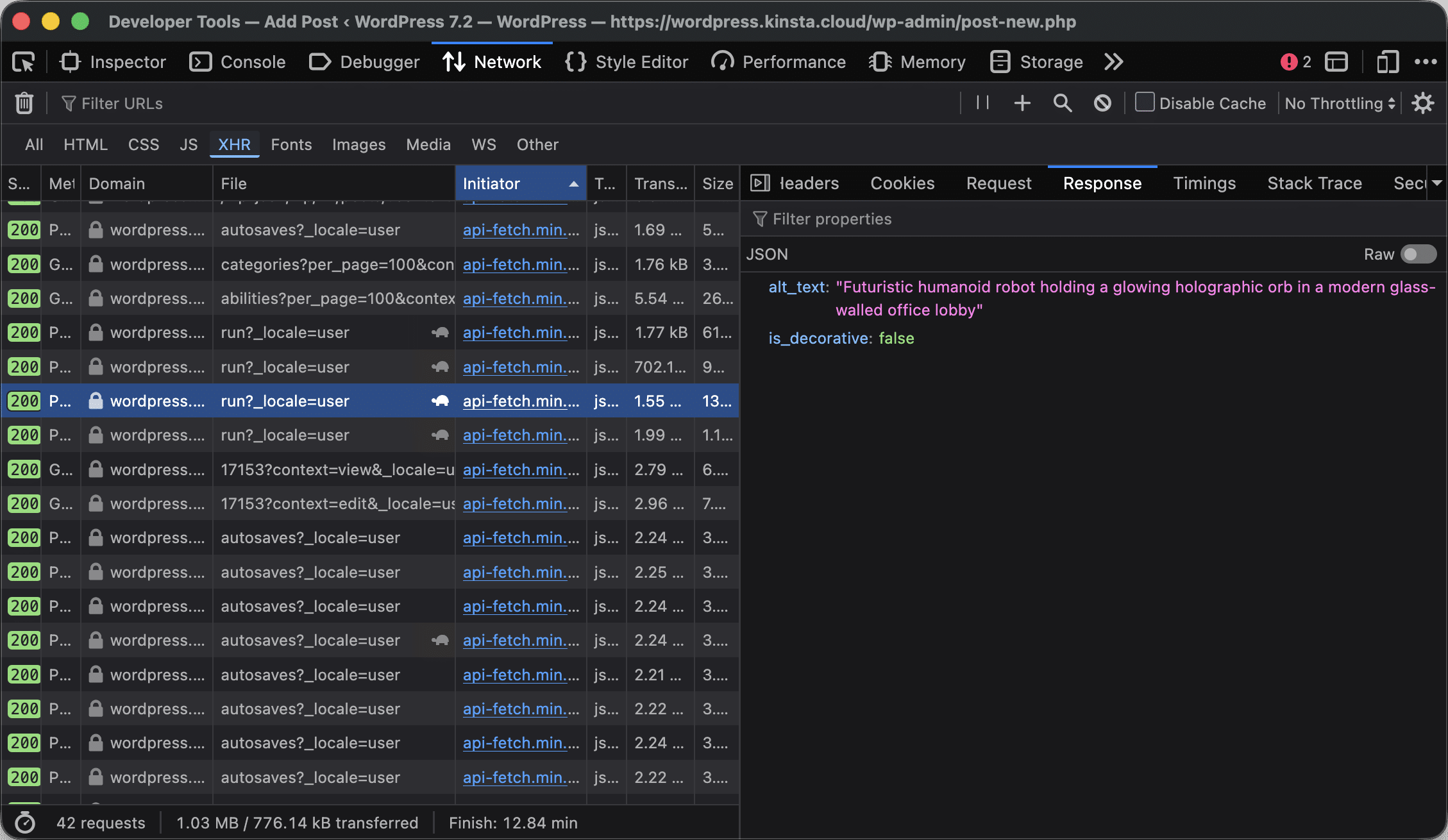

The API response contains the image’s alt text.

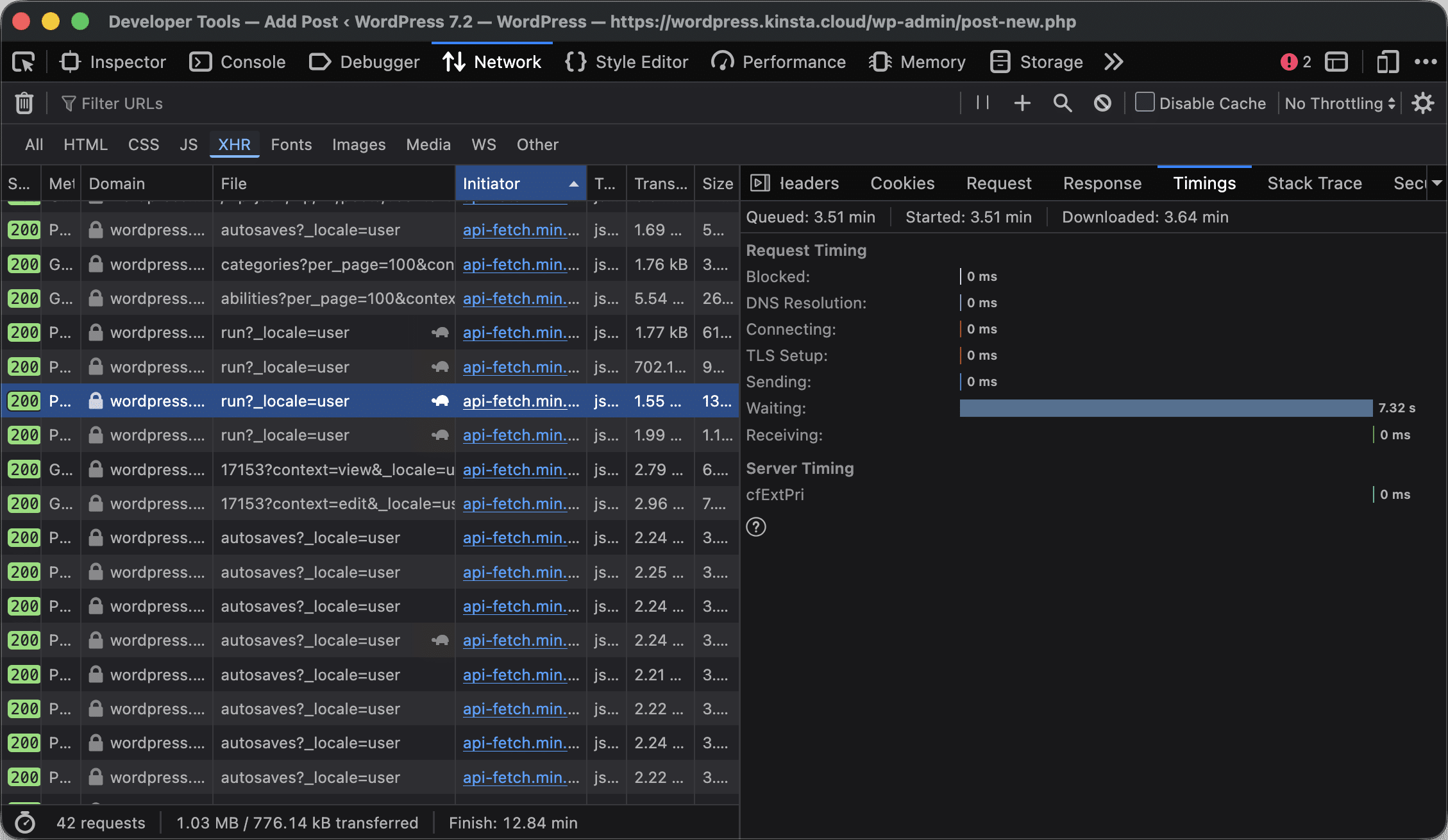

Despite the concise output, decoding the image and generating the text was particularly slow: 7.32s.

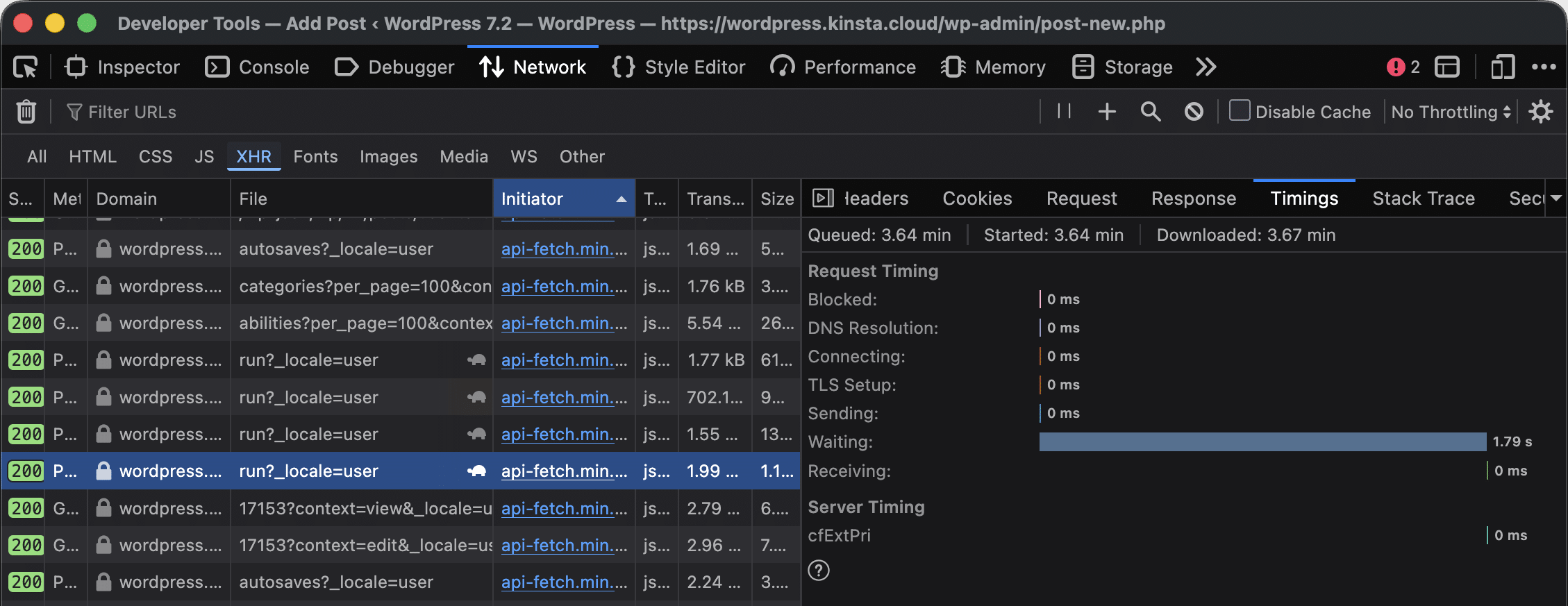

4. Image download
The fourth Abilities API request processes the binary payload, downloads the image file, generates image crops, and registers the image in the WordPress Media Library. The wait time for this final request was 1.79s.
Let’s now sum up the wait times for the four requests executed by the Abilities API to generate the featured image:
- Prompt generation: 5.52s
- Image generation: 9.92s
- Alt text generation: 7.32s
- Image download and registration: 1.79s
The total wait time was a whopping 24.55 seconds.
The impact of AI on site infrastructure
Whether you use third-party plugins or custom code to add AI features to your site, understanding their impact on server performance and resource consumption is critical.
Inefficient resource management or poor code architecture can quickly overload your server, leading to PHP resource saturation, server timeouts, excessive bandwidth usage, HTTP 5xx errors, or outright downtime.
A high-performance cloud host built on containerized infrastructure, multi-level caching, automatic database optimization, and scalable PHP workers can’t magically eliminate AI’s processing load. However, it gives your site the buffer it needs to prevent bottlenecks and resolve performance spikes before they impact your visitors.
Nobody wants a sluggish site during peak traffic events like Black Friday, and businesses can’t afford server timeouts when uptime directly impacts revenue. As machines play a bigger role in driving website functionality, choosing a performant, scalable hosting provider is no longer optional.
Kinsta delivers the performance, security, and observability modern WordPress sites need to thrive in the AI era. Want to see the difference firsthand? Check out our plans here.
